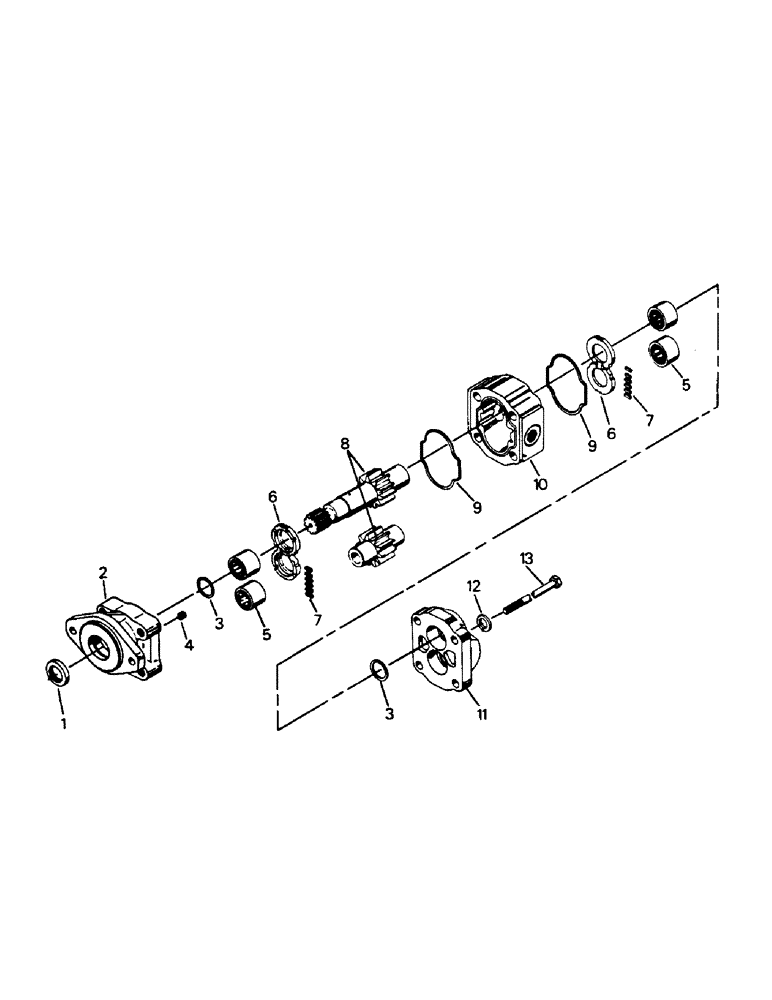

Запчасти Case IH PT225 (08-20) - HYDRAULIC PUMPS, PTA 280, CAT & PTA 325 (07) - HYDRAULICS

50-1075T91

PUMP, HYDRAULIC

PUMP ASSY (standard), consists of 1-13

1шт.

1

18-1573

SEAL

DOUBLE LIP SEAL

1шт.

2

18-1468

COVER

SHAFT END COVER

1шт.

3

18-771

SEALING RING

RING SEAL

2шт.

4

18-772

PLUG

1шт.

5

18-773

ROLLER BEARING

4шт.

6

18-774

LARGE PLATE

THRUST PLATE

2шт.

7

2-3433T1

SEAL

POCKET SEAL STRIP

2шт.

8

2-3434T1

DRIVE SHAFT & GEAR SET

1шт.

9

18-777

GASKET,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

SEAL

2шт.

10

2-3435T1

GEAR HOUSING

1шт.

11

NSS

NOT SOLD SEPARAT

PORT END COVER

1шт.

12

19-488

WASHER

4шт.

13

19-764

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 5

CAPSCREW

4шт.

501838T1

PUMP ASSY (heavy duty), consists of 1-13

1шт.

1

50-1838T1

SEAL

DOUBLE LIP SEAL

1шт.

2

50-1836T1

SHAFT END COVER

1шт.

3

50-1846T1

OIL SEAL

RING SEAL

2шт.

4

50-1828T1

PLUG

1шт.

5

50-1837T1

ROLLER BEARING

ROLLER BEARING

4шт.

6

50-1843T1

LARGE PLATE

THRUST PLATE

2шт.

7

50-1958T1

SEAL

POCKET SEAL

12шт.

8

50-1854T1

GEAR-SET

DRIVE SHAFT & GEAR SET

1шт.

9

50-1957T1

SEAL

GASKET SEAL

2шт.

10

50-1853T91

GEAR

HOUSING (incl 6, 7 & 9)

1шт.

11

50-1841T91

PORT END COVER

1шт.

12

50-1834T1

WASHER

4шт.

13

50-1845T1

CAPSCREW

4шт.
