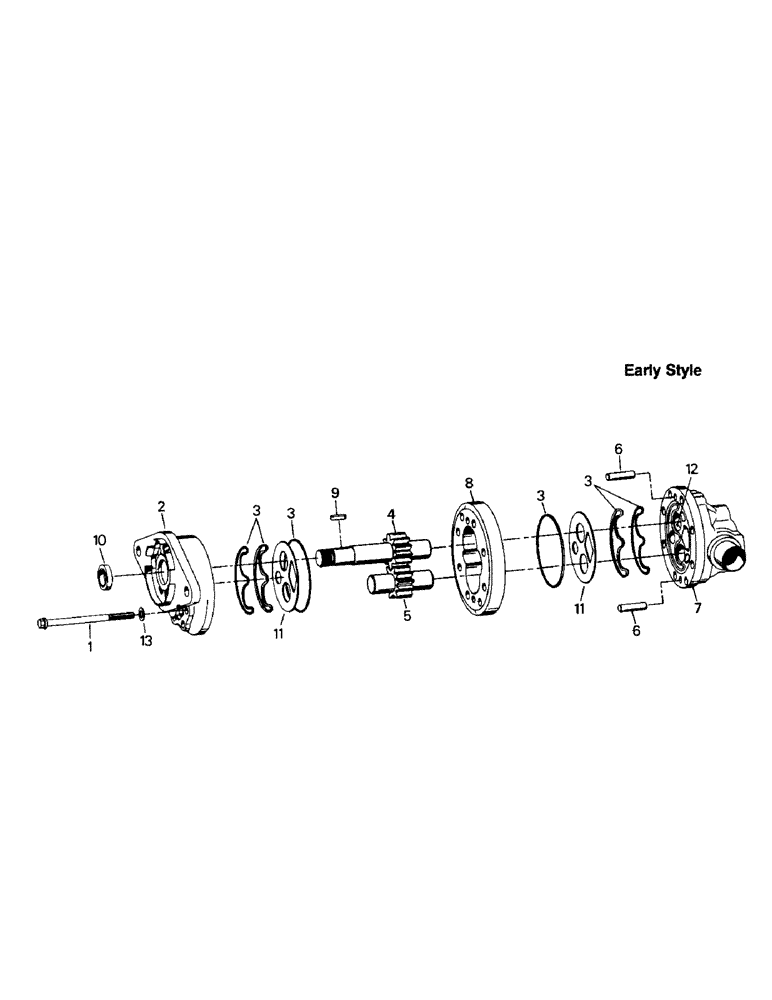

Запчасти Case IH PT225 (08-16) - PT 225, PT 250, PT 270 & PT 270 HYDRAULIC PUMP (07) - HYDRAULICS

18-1553

X

PUMP ASSEMBLY , vendor p/n 323KB13NX-R, consists of Ref. 1-9

1шт.

Superseded, old P/N can be used up on all models prior to S/N break only, new P/N must be used after S/N break, order new P/N when old stock is depleted as it will work for all

1шт.

1-7079

X

PUMP ASSEMBLY, vendor p/n 323KB13NX-10R, consists of Ref. 1-12

1шт.

Superseded, old P/N can be used up on all models prior to S/N break only, new P/N must be used after S/N break, order new P/N when old stock is depleted as it will work for all

1шт.

2-2625

NEEDLE ROLLER

PUMP ASSEMBLY, vendor p/n 323KB13NX-12R, consists of Ref. 1-13

1шт.

Superseded, old P/N can be used up on all models prior to S/N break only, new P/N must be used after S/N break, order new P/N when old stock is depleted as it will work for all

1шт.

1

19-1057

HEX SOC SCREW,3/8" - 16 x 3 1/2"

BOLT, 3/8 x 3-1/4 UNC

8шт.

Use with pump p/n 18-1553, vendor p/n 323KB13NX-R

1шт.

19-1056

CARRIAGE BOLT,#3, 5/8" - 11 x 3 1/2", Gr 5

BOLT, 3/8 x 3-1/2 UNC

1шт.

Use with pumps p/n 1-7079, vendor p/n 323KB13NX-10R and pump p/n 2-2625, vendoe p/n 323KB13NX-12R

1шт.

2

18-1667

BODY ASSEMBLY , no longer available, replaced by p/n 1-7118

1шт.

Use with pump p/n 18-1553, vendor p/n 323KB13NX-R

1шт.

No longer available and should be replaced with p/n 01-7118 (code E) which isdirectly interchangeable. This later style body assy. uses a new seal (p/n 01-9400) which is included in minor repair kit p/n 35-1122. Minor repair kit p/n 18-1668 can only be used with early style body assy. p/n 18-1667.

1шт.

1-7118

BODY

ASSEMBLY, includes ref. 10 seal 1-9400

1шт.

Use with pumps p/n 1-7079, vendor p/n 323KB13NX-10R and pump p/n 2-2625, vendoe p/n 323KB13NX-12R

1шт.

3

18-1668

KIT

MINOR REPAIR KIT, use only with body assy. 18-1667

1шт.

Use with pump p/n 18-1553, vendor p/n 323KB13NX-R

1шт.

35-1122

SEAL KIT

MINOR REPAIR KIT, includes ref. 11

1шт.

Use with pump p/n 1-7079, vendor p/n 323KB13NX-10R

1шт.

4

18-1669

DRIVE SHAFT

& GEAR ASSEMBLY

1шт.

5

18-1670

GEAR-SET

IDLER SHAFT & GEAR ASSEMBLY

1шт.

6

18-1671

DOWEL PIN

2шт.

7

18-1673

BODY ASSEMBLY, no longer available, replaced by p/n 20-1020

1шт.

Use with pump p/n 18-1553, vendor p/n 323KB13NX-R

1шт.

No longer available and shold be replaced with p/n 50-1020 (Code E) which is directly interchangeable. If this change and the other recommended changes (other note & ref 8) are made, the pump assy. will be upgraded to the latest version (p/n 02-2625).

1шт.

1-9542

COVER ASSY

BODY ASSEMBLY, no longer available, replaced by p/n 50-1020

1шт.

Use with pump p/n 1-7079, vendor p/n 323KB13NX-10R

1шт.

No longer available and shold be replaced with p/n 50-1020 (Code E) which is directly interchangeable. If this change and the other recommended changes (other note & ref 8) are made, the pump assy. will be upgraded to the latest version (p/n 02-2625).

1шт.

50-1020

BODY

ASSEMBLY, Pump p/n 01-7079 (vendor p/n 323KB13NX-10R)

1шт.

8

1-9543

LARGE PLATE

GEAR PLATE (replaces p/n 18-1672 - code E)

1шт.

Superseded, old P/N is not used any longer, the new P/N is to be used in all cases, old P/N should be removed from existing inventory, it is recommended that the old part not be used under any circumstances

1шт.

9

18-1674

CONTAINER

KEY

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL (included in kit 18-1668 only)

1шт.

Use with pump p/n 18-1553, vendor p/n 323KB13NX-R

1шт.

1-9400

OIL SEAL

SEAL, included in kit 35-1122 or sold separately

1шт.

Use with pumps p/n 1-7079, vendor p/n 323KB13NX-10R and pump p/n 2-2625, vendoe p/n 323KB13NX-12R

1шт.

11

NSS

NOT SOLD SEPARAT

WEAR PLATE (included in kit 18-1668 only)

2шт.

Use with pump p/n 18-1553, vendor p/n 323KB13NX-R

1шт.

1-9709

LARGE PLATE

WEAR PLATE (included in kit 35-1122 or sold separately)

1шт.

Use with pumps p/n 1-7079, vendor p/n 323KB13NX-10R and pump p/n 2-2625, vendoe p/n 323KB13NX-12R

1шт.

12

1-9713

NEEDLE BEARING

BEARING, sleeve

4шт.

Use with pumps p/n 1-7079, vendor p/n 323KB13NX-10R and pump p/n 2-2625, vendoe p/n 323KB13NX-12R

1шт.

13

19-306

WASHER

8шт.

Use with pump p/n 02-2625, vendor p/n 323KB13NX-12R

1шт.
