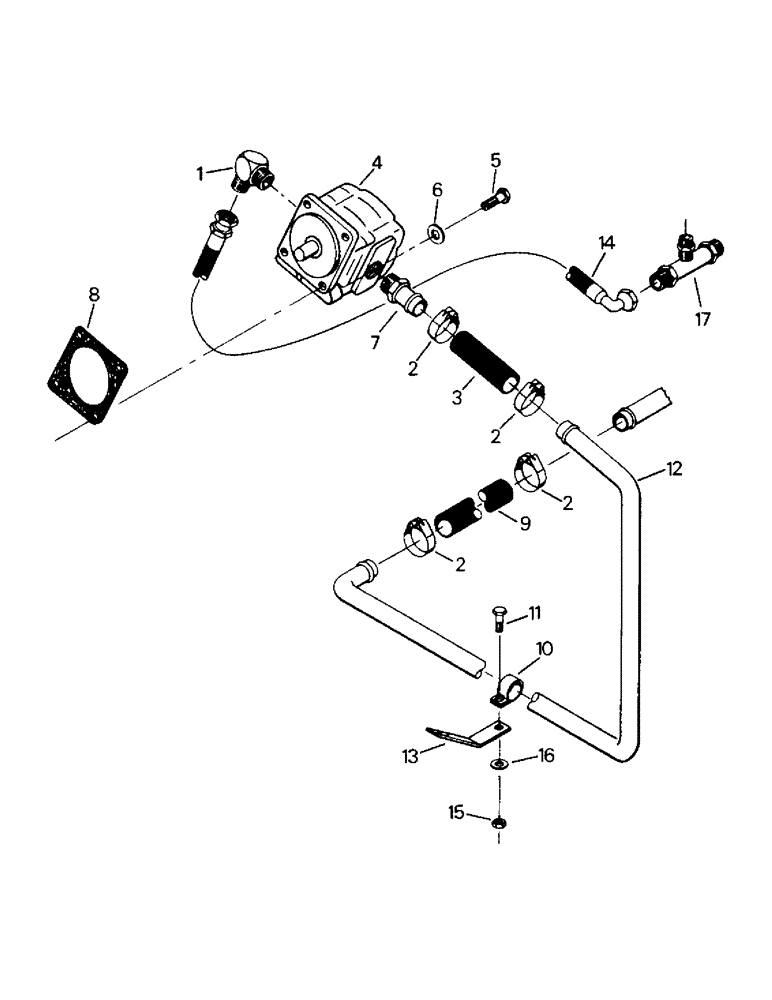

Запчасти Case IH PT225 (08-15) - PT 350 HYDRAULIC PUMP MOUNTING (07) - HYDRAULICS

1

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

(16)

1шт.

2

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

4шт.

3

1-5651

HOSE,1.45" ID, 1.55" ID x 8.00"

1шт.

4

18-1629

PUMP

HYDRAULIC PUMP (see figure 8-22)

1шт.

DRIVE COUPLER FOR PUMP IS PART OF

1шт.

5

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW, 1/2 x 1-1/4 UNC

4шт.

6

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

4шт.

7

31-266

FITTING

1шт.

8

18-1307

GASKET

1шт.

9

1-4483

HOSE,1.45" ID, 1.55" ID x 15.00"

1.45" ID, 1.55" ID x 15.00"

1шт.

10

32-343

MOUNTING CLIP

CLAMP

1шт.

11

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

1шт.

12

1-5629

TUBE ASSEMBLY

1шт.

13

1-5652

BRACKET

1шт.

14

31-1084

HOSE

ASSEMBLY

1шт.

15

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

1шт.

16

19-107

WASHER

3/8

1шт.

17

31-1086

FITTING

TEE (10)

1шт.

ENGINE.ORDER FROM CUMMINS OR CAT.

1шт.
