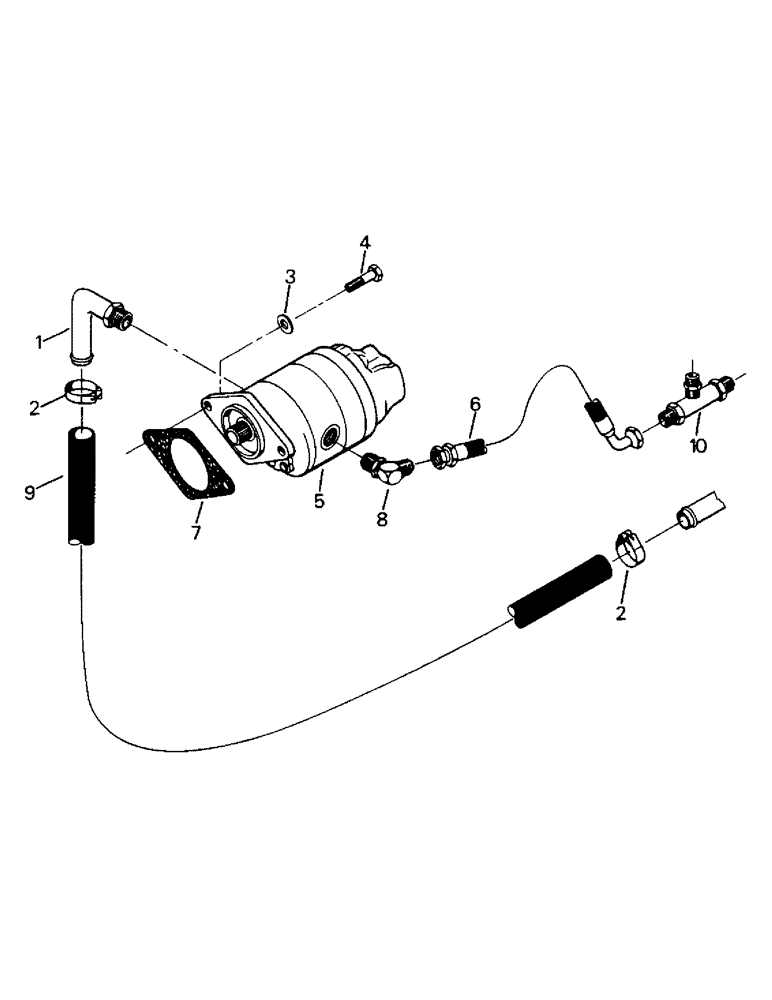

Запчасти Case IH PT225 (08-14) - HYDRAULIC PUMP MOUNTING, CUMMINS 903 (07) - HYDRAULICS

1

31-1394

ELBOW

FITTING (20)

1шт.

2

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

2шт.

3

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

4

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW, 1/2 x 1-1/4 UNC

2шт.

5

50-1060T91

PUMP

HYDRAULIC PUMP (see figure 8-21)

1шт.

THIS PUMP HAS TWO MOUNTING BOLTS.

1шт.

6

31-1084

HOSE

ASSEMBLY

1шт.

7

18-1176

GASKET

1шт.

8

31-418

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

(16)

1шт.

9

18-599

HOSE

1шт.

10

31-1086

FITTING

TEE (10)

1шт.

THE REPLACEMENT KIT HAS FOUR MOUNTING BOLT HOLES.THE TRACTOR WILL ACCEPT TWO OR FOUR BOLTS.

1шт.
