Запчасти Case IH PT225 (10-19) - PTA 296, PTA 297 & PT 350, VARIABLE DISPLACEMENT PUMP Options & Miscellaneous

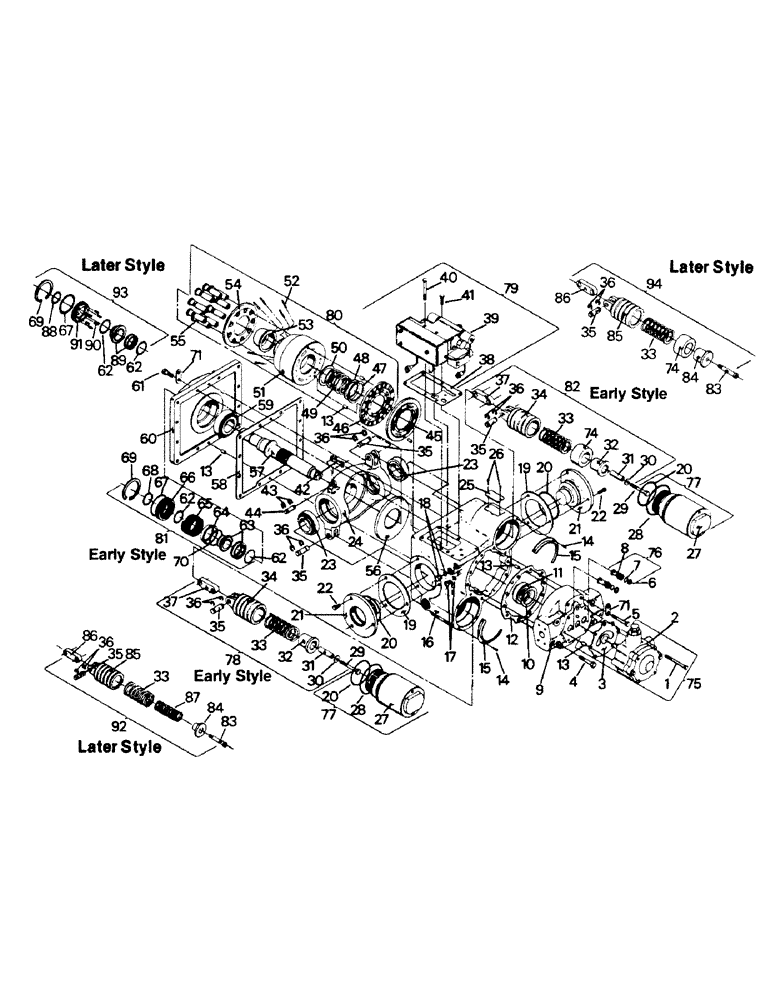

Схема запчастей Case IH PT225 - (10-19) - PTA 296, PTA 297 & PT 350, VARIABLE DISPLACEMENT PUMP Options & Miscellaneous
6
80
55
60
85
33
18
40
31
20
53
21
31
21
45
36
20
46
13
69
64
16
13
74
4
30
78
84
32
27
22
39
37
14
68
89
47
20
36
71
36
20
37
19
29
67
33
36
24
91
83
81
62
13
54
70
19
36
33
94
66
34
61
3
88
62
62
5
38
74
63
35
35
93
48
34
35
59
12
67
50
83
2
87
28
71
77
69
10
56
52
62
58
41
28
86
15
23
9
49
42
33
26
25
27
84
51
35
11
35
7
32
86
75
35
15
92
79
82
85
14
57
29
65
44
23
43
22
30
36
1
13
76
8
17
90
77

Артикул

Название

Примечание

Количество

1

1-3449

PUMP ASSY

1шт.

50-1293T91

PUMP ASSY (PTO II)

1шт.

1

19-188

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

CAPSCREW, 5/16 x 3-1/2 UNC

4шт.

2

1-6338

CHARGE PUMP

1шт.

3

1-6294

GASKET

1шт.

4

19-35

BOLT,7/16" - 14 x 2", Gr 5

CAPSCREW, 7/16 x 2 UNC

2шт.

5

19-732

CAPSCREW, 7/16 x 3 UNC Hex, 7/16"-14 x 3", G5

6шт.

6

1-6343

RING

BACK-UP RING

2шт.

7

1-6344

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

CHECK VALVE

2шт.

9

1-6345

END COVER

1шт.

10

1-6346

SHIM

1шт.

11

1-6347

BEARING

1шт.

12

1-6348

GASKET

1шт.

13

1-6339

PIN

DOWEL

9шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

14

9421614

CAPSCREW, #8 x 3/8 UNC

6шт.

15

1-6350

RETAINER

2шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

16

1-6351

HOUSING (early style)

1шт.

NSS

NOT SOLD SEPARAT

HOUSING (later style)

1шт.

17

1-6352

PLUG & O-RING

1шт.

1-7090

O-RING

1шт.

18

1-6353

PLUG

& O-RING

1шт.

1-7090

O-RING

1шт.

19

1-6354

SHIM

1шт.

20

1-6355

O-RING

4шт.

21

1-6356

TRUNNION

2шт.

22

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

CAPSCREW, 7/16 x 7/8 UNC

6шт.

23

1-6358

BEARING

2шт.

24

1-6359

PLATE

SWASHPLATE

1шт.

25

1-6360

NAMEPLATE

1шт.

26

1-6361

SCREW

2шт.

27

NSS

NOT SOLD SEPARAT

SERVO SLEEVE (see ref. 77)

2шт.

28

1-6364

O-RING

2шт.

29

19-724

CAPSCREW, 5/16 x 2-1/2 UNC Hex, 5/16"-18 x 2 1/2", G5

2шт.

30

1-6367

WASHER

2шт.

31

1-6368

SPACER

2шт.

32

1-6369

RETAINER

2шт.

33

1-6370

SPRING

2шт.

34

1-6371

PISTON

2шт.

35

1-6372

PIN

4шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

36

1-6373

RETAINING RING

8шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

37

1-6374

LINK

2шт.

38

1-6290

GASKET

1шт.

39

1-6375

CONTROL VALVE (used w/pump P/N 01-3449 only)

1шт.

2-6784T91

VALVE, CONTROL

CONTROL VALVE (used w/pump P/N 50-1293T91 only)

1шт.

40

19-535

BOLT,5/16" - 18 x 2 3/4", Gr 5

CAPSCREW, 5/16 x 2-3/4 UNC

3шт.

41

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 x 1 UNC

3шт.

42

1-6378

LINK

1шт.

43

1-6379

RETAINING RING

2шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

44

1-6380

PIN

1шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

45

1-6381

PLATE

1шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

46

1-6383

LARGE PLATE

PLATE

1шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

47

19-5513

RETAINING RING

1шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

48

1-6385

SPACER

1шт.

49

1-6386

SPRING

1шт.

50

1-6387

SPACER

1шт.

51

1-6388

BARREL (early style)

1шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

2-4053T1

BARREL (later style)

1шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

52

1-6389

PIN

DOWEL

6шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

53

1-6390

GUIDE

1шт.

54

1-6391

RETAINER (early style)

1шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

2-4054T1

RETAINER (later style)

1шт.

PIN & retaining ring kit P/N 02-2357 includes ref. 13, 15, 35, 36, 43, 44, 47 & 52. Valve & bearing plate kit P/N 02- 2360 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

55

1-6392

PISTON ASSY.

PISTON

9шт.

56

1-6393

PLATE

THRUST PLATE

1шт.

57

1-6394

SHAFT

1шт.

58

1-6395

GASKET

1шт.

59

1-6396

BEARING

1шт.

60

1-6397

FLANGE, mounting

1шт.

61

19-33

BOLT,7/16" - 14 x 1 1/4", Gr 5

CAPSCREW, 7/16 x 1-1/4 UNC

12шт.

62

1-6399

O-RING

2шт.

63

1-6400

SEAL KIT

1шт.

64

1-6401

SEAL

RETAINER

1шт.

65

1-6402

SPRING

1шт.

66

1-6403

RETAINER

1шт.

67

1-6404

O-RING

1шт.

68

1-6405

RETAINING RING

1шт.

69

19-5511

RETAINING RING

1шт.

70

1-6407

O-RING

1шт.

71

1-6408

SHIPPING STRAP

2шт.

72

1-6409

KEY (not shown)

1шт.

73

1-6410

LOCK NUT (not shown)

1шт.

74

1-6412

SPACER

1шт.

75

1-6292

CHARGE PUMP KIT (includes ref. 1-3 & 13)

1шт.

76

1-6342

VALVE

CHECK VALVE (includes ref. 6-8)

2шт.

77

1-6362

SLEEVE

SERVO SLEEVE (includes ref. 20, 27 & 28)

2шт.

78

1-6365

PISTON

SERVO PISTON (includes ref. 29-27) (early style)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

79

1-6289

CONTROL VALVE KIT (includes ref. 38-41) (used w/pump P/N 01-3449 only) (for pump P/N 50-1294R91 order components seperately)

1шт.

80

1-6382

ROTOR

ROTATING GROUP (includes ref. 13 & 46-55) (early style)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

2-3802T91

ROTOR

ROTATING GROUP (includes ref. 13 & 46-55) (later style)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

81

1-6298

SEAL

DRIVE SHAFT SEAL KIT (includes ref. 62-70) (early style)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

82

1-6411

PISTON

SERVO PISTON (includes ref. 29-37 & 74) (early style)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

83

2-4048T1

SOCKET HEAD CAPSCREW

2шт.

84

2-4049T1

RETAINER

2шт.

85

2-4050T1

PISTON

2шт.

86

2-4051T1

LINK

2шт.

87

2-4052T1

SPRING

1шт.

88

2-3803T1

O-RING

1шт.

89

NSS

NOT SOLD SEPARAT

SEAL KIT

1шт.

90

NSS

NOT SOLD SEPARAT

SEAL SPRING

6шт.

91

NSS

NOT SOLD SEPARAT

SEAL RETAINER

1шт.

92

2-3801T91

PISTON ASSY.

SERVO PISTON (includes ref. 33, 35, 36 & 83-87) (later style)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

93

2-3804T91

SEAL

DRIVE SHAFT SEAL KIT (includes ref. 62, 67, 69 & 88-91) (later style)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.

94

2-3800T91

SERVO PISTON (includes ref. 33, 35, 36, 74 & 83-86) (later style)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old strock is depleted as it will work for all.

1шт.
