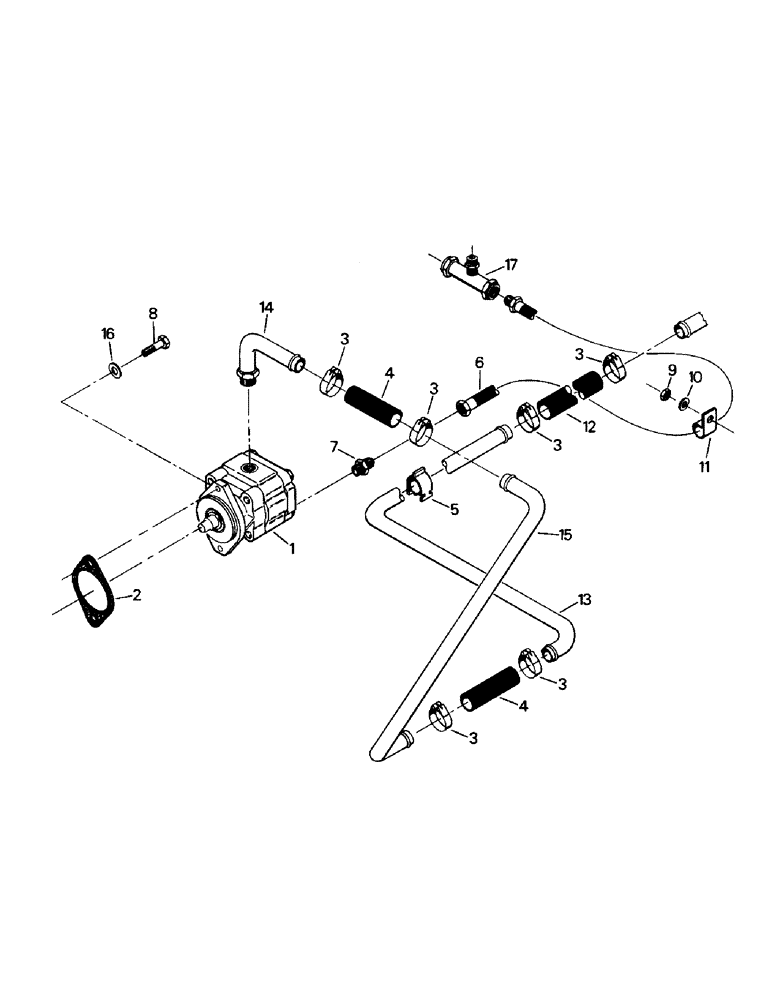

Запчасти Case IH PT225 (08-12) - HYDRAULIC PUMP MOUNTING - STANDARD, CAT 3406 (07) - HYDRAULICS

1

50-1075T91

PUMP, HYDRAULIC

HYDRAULIC PUMP (see figure 8-20)

1шт.

2

18-1176

GASKET

1шт.

3

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

6шт.

4

1-4571

HOSE

2шт.

5

31-1151

CLAMP

ASSEMBLY

2шт.

6

31-1520

HOSE

ASSEMBLY

1шт.

7

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

ADAPTER (16)

1шт.

8

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW, 1/2 x 1-1/4 UNC

2шт.

9

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC

1шт.

10

19-107

WASHER

3/8

1шт.

11

32-343

MOUNTING CLIP

CLAMP

1шт.

12

1-4483

HOSE,1.45" ID, 1.55" ID x 15.00"

1.45" ID, 1.55" ID x 15.00"

1шт.

13

50-1069T1

TUBE

1шт.

14

31-1394

ELBOW

FITTING (20)

1шт.

15

50-1140T1

TUBE

1шт.

16

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

17

18-1541T91

TEE

(10)

1шт.
