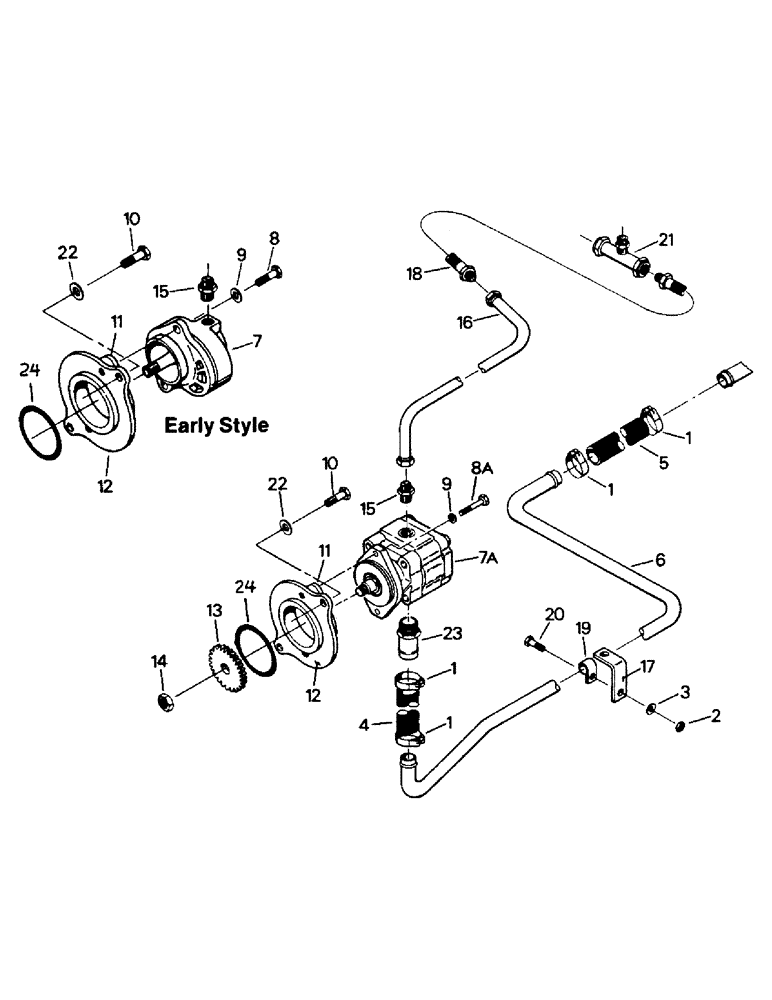

Запчасти Case IH PT225 (08-10) - PT 225, PT 250, PT 270 & PTA 270, HYDRAULIC PUMP MOUNTING (07) - HYDRAULICS

1

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

4шт.

2

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

1шт.

3

19-107

WASHER

3/8

1шт.

4

1-6220

HOSE,1.45" ID, 1.55" ID x 6.00"

(PT 225, PT 250 & PT 270) 1.45" ID, 1.55" ID x 6.00"

1шт.

1-4571

HOSE

(PTA 270)

1шт.

5

1-4483

HOSE,1.45" ID, 1.55" ID x 15.00"

(PT 225, PT 250, & PT 270) 1.45" ID, 1.55" ID x 15.00"

1шт.

32-288

HOSE (PTA 270)

1шт.

6

1-4779T1

TUBE,42.48" Length

ASSEMBLY

1шт.

7

18-1553

X

HYDRAULIC PUMP

1шт.

1-7079

X

HYDRAULIC PUMP

1шт.

2-2625

NEEDLE ROLLER

HYDRAULIC PUMP (early style) (see figure 8-16)

1шт.

7a

50-1298T91

PUMP

HYDRAULIC PUMP (later style) (see figure 8-17)

1шт.

8

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW, 1/2 x 1-1/2 UNC (used on pump p/ns 18-1533, 01-7079 & 02-2625)

2шт.

8a

19-941

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

CAPSCREW, 1/2 x 1-3/4 UNC (used on pump p/n 50-1298T91 only)

1шт.

9

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

10

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

CAPSCREW, 5/8 x 1-1/2 UNC

2шт.

11

18-1176

GASKET

1шт.

12

18-955T1

ADAPTER

1шт.

13

6-1491T1

GEAR

1шт.

14

19-261

NUT,7/8" - 14, Gr 5

7/8 UNF

1шт.

15

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

ADAPTER (16)

1шт.

16

1-4782

TUBE ASSEMBLY (shown above) (PT 225, PT 250 & PT 270)

1шт.

50-1300T1

TUBE ASSEMBLY ( PTA 270)

1шт.

17

1-4919

BRACKET

1шт.

18

31-1042

HOSE ASSY.

HOSE ASSEMBLY (PT 225, PT 250 & PT 270)

1шт.

18-1524

HOSE

ASSEMBLY (PTA 270)

1шт.

19

32-343

MOUNTING CLIP

CLAMP

2шт.

20

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

1шт.

21

18-1541T91

TEE

(10)

1шт.

22

19-711

WASHER,5/8", SAE

21/32 (used on some early PT models)

2шт.

23

31-266

FITTING

(used with pump p/n 50-1298T91 only)

1шт.

24

90-6162T1

O-RING

1шт.

P/N 90-6162T1 should be P/N 90-6261T1. MJP

1шт.
