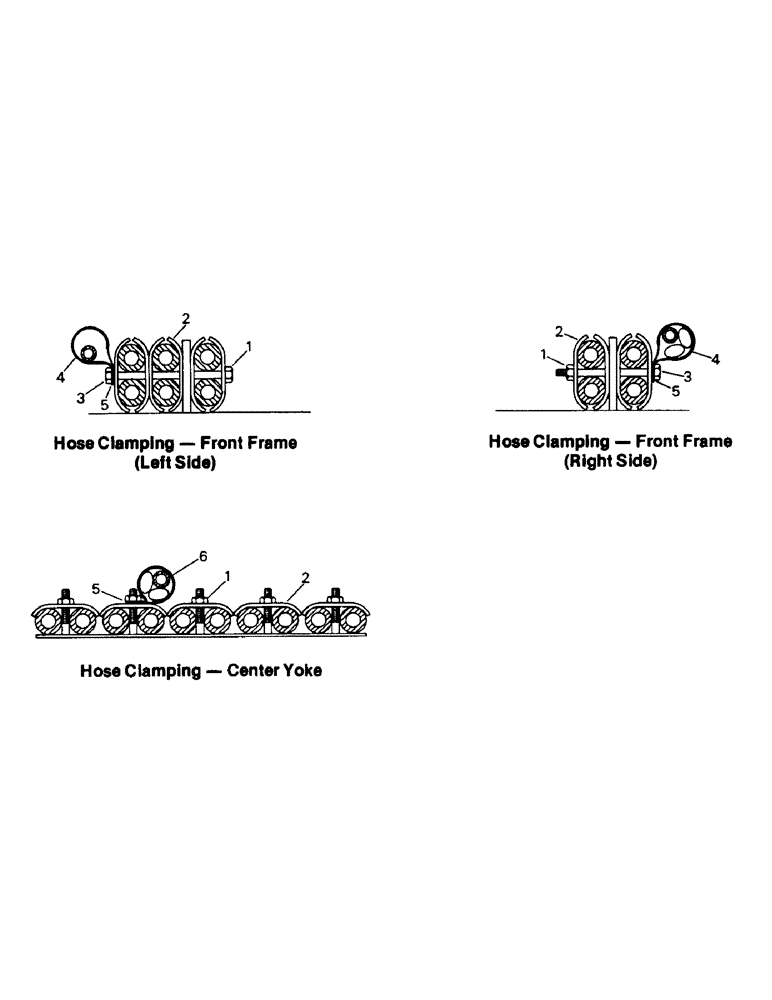

Запчасти Case IH PT225 (08-08) - HYDRAULIC HOSE MOUNTING (07) - HYDRAULICS

1

280129

NUT,1/4"-20

1/4 UNC

6шт.

Quantity will vary depending on control valve. Quantities shown are for the 4-spool control valve

1шт.

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC

1шт.

2

32-1000

CLAMP

used with 1/4" hardware only

12шт.

Quantity will vary depending on control valve. Quantities shown are for the 4-spool control valve

1шт.

New Part - additional P/N or P/NS is/are used after the S/N break.

1шт.

2-4183T1

CLAMP

(used with 3/8" hardware only)

1шт.

3

19-416

BOLT,Hex, 1/4" - 20 x 3", Gr 5

CAPSCREW, 1/4 x 3 UNC

2шт.

Quantity will vary depending on control valve. Quantities shown are for the 4-spool control valve

1шт.

19-298

BOLT,Hex, 3/8" - 16 x 3.25", Gr 5

CAPSCREW, 3/8 x 3-1/4 UNC

1шт.

433056

BOLT,Hex, 1/4" - 20 x 4", Gr 5

CAPSCREW, 1/4 x 4 UNC (used with 5-spool valve only)

1шт.

19-727

SCREW

CAPSCREW, 3/8 x 4-1/4 UNC (used with 5-spool valve only)

1шт.

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8 x 2 UNC (used with 3-spool valve only)

1шт.

4

32-343

MOUNTING CLIP

CLAMP (qty. 1 on some early models)

2шт.

5

19-223

WASHER,1/4"

1/4.

1шт.

19-107

WASHER

3/8

3шт.

6

32-179

CLAMP (used with 1/4" hardware only)

1шт.

32-343

MOUNTING CLIP

CLAMP (used with 3/8" hardware only)

1шт.
