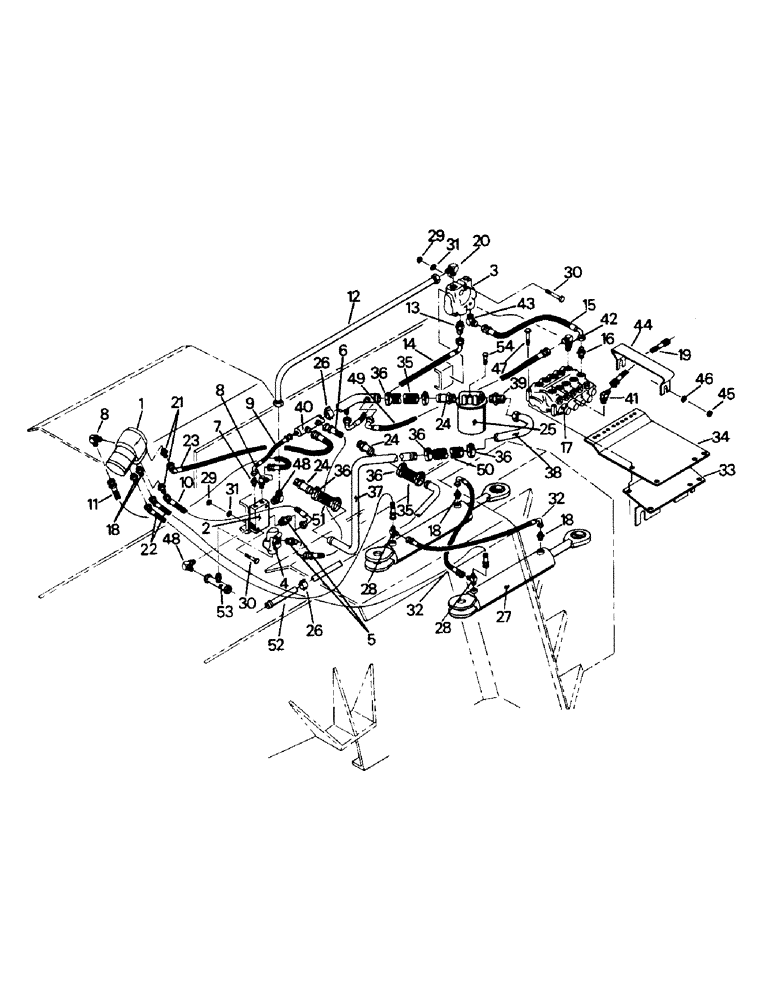

Запчасти Case IH PT225 (08-02) - PT HYDRAULIC SYSTEM, LESS PUMP & MOUNTING (07) - HYDRAULICS

1

18-1503

VALVE

steering control (early style)

1шт.

1-9556

VALVE, CONTROL

VALVE, steering control (later style) (shown above) (see fig. 8-26 & 8-27)

1шт.

2

1-2391T91

VALVE

PRIORITY VALVE (see figure 8-25)

1шт.

3

18-1505T91

DIVIDER

FLOW DIVIDER (see figure 8-25)

1шт.

4

18-1542

VALVE, PRESSURE RELI

RELIEF VALVE (early style)

1шт.

50-1209T91

VALVE, PRESSURE RELI

RELIEF VALVE (later style) (shown above) (see fig. 8-23 & 8-24)

1шт.

5

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING (10)

2шт.

6

31-1048

HOSE

ASSEMBLY

1шт.

7

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

FITTING (4)

1шт.

8

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

(4)

2шт.

9

31-1040

HOSE ASSY.

HOSE ASSEMBLY

1шт.

10

31-1044

HOSE

ASSEMBLY

1шт.

11

18-1536

HOSE

ASSEMBLY

1шт.

12

1-4781

TUBE,1" OD, 45.5, 6" Length

ASSEMBLY

1шт.

13

31-610

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

FITTING (16)

1шт.

14

31-1045

HOSE ASSY.

HOSE ASSEMBLY

1шт.

15

31-1041

HOSE,19.05mm ID x 838mm L

ASSEMBLY

1шт.

16

18-783

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

FITTING (12)

1шт.

17

CONTROL VALVE (see figures 8-30 to 8-32 for the various control valves)

1шт.

18

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING, (8)

4шт.

19

31-1308

HOSE ASSY.

HOSE ASSEMBLY

8шт.

Quantity will vary depending on control valve, quantities shown are for the 4-spool control valve, see Figure 08-04 for variations of this hydraulic system when the oil cooling system has been added.

1шт.

20

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

(16)

1шт.

21

31-462

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

FITTING (8)

2шт.

22

31-1047

HOSE ASSY.

HOSE ASSEMBLY

2шт.

23

31-1046

HOSE

ASSEMBLY

1шт.

24

18-1529

FITTING

3шт.

25

18-497

FILTER

ASSEMBLY

1шт.

18-498

FILTER, ENGINE OIL

ELEMENT

1шт.

18-669

O-RING

(used with filter element)

1шт.

26

31-1151

CLAMP

ASSEMBLY

2шт.

27

1-3752

CYLINDER

STEERING CYLINDER (early style)

2шт.

1-7774T91

CYLINDER

STEERING CYLINDER (later style) (see fig. 8-28 & 8-29)

1шт.

28

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

(8) (later models used elbow (31-619) between tee (ref 28) and hose assy (ref 22)

2шт.

29

19-508

LOCK NUT

LOCK NUT, 5/16 UNC

4шт.

30

19-1007

BOLT,Hex, 5/16" - 18 x 3", Gr 5

CAPSCREW, 5/16 x 3 UNC

4шт.

31

19-700

WASHER,5/16"

5/16

4шт.

32

32-176

HOSE

ASSEMBLY

2шт.

33

1-4396T1

ANCHOR

VALVE MOUNT

1шт.

34

1-4169T1

LARGE PLATE

PLATE

1шт.

35

1-4571

HOSE

2шт.

36

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

8шт.

37

1-4825

TUBE

return

1шт.

38

1-4824

TUBE,1.5 mm OD, 5.8 mm Length

return

1шт.

39

31-1051

HYD CONNECTOR,1 7/8"-12, 37 Degree x 1 1/4"-11 1/2, NPTF

FITTING

1шт.

40

1-4783

TUBE, return 1.5" OD, 31.5" Length

1шт.

41

31-323

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8)

8шт.

Quantity will vary depending on control valve, quantities shown are for the 4-spool control valve, see Figure 08-04 for variations of this hydraulic system when the oil cooling system has been added.

1шт.

42

31-326

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

(12)

1шт.

43

31-394

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

(16)

1шт.

44

1-4910

BRACKET, hose (qty. 2 on some early models)

1шт.

45

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

4шт.

46

19-107

WASHER

3/8

4шт.

47

19-535

BOLT,5/16" - 18 x 2 3/4", Gr 5

CAPSCREW, 5/16 x 2-3/4 UNC

3шт.

48

31-368

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

(12) (qty. 1 on PT 350)

2шт.

49

31-1077

HOSE

ASSEMBLY

1шт.

50

1-5651

HOSE,1.45" ID, 1.55" ID x 8.00"

1шт.

51

1-6220

HOSE,1.45" ID, 1.55" ID x 6.00"

1шт.

52

1-4780

TUBE,1.5" OD, 17.48, 23.5" Length

suction

1шт.

53

18-1541T91

TEE

(10) (PT 225, PT 250 & PT 270)

1шт.

31-1086

FITTING

TEE (10) (PT 350)

1шт.

54

19-288

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

CAPSCREW, 5/16 x 5/8 UNC

2шт.
