Запчасти Case IH PT225 (10-16) - PT 225, PT 250 & PT 270, VARIABLE DISPLACEMENT PUMP Options & Miscellaneous

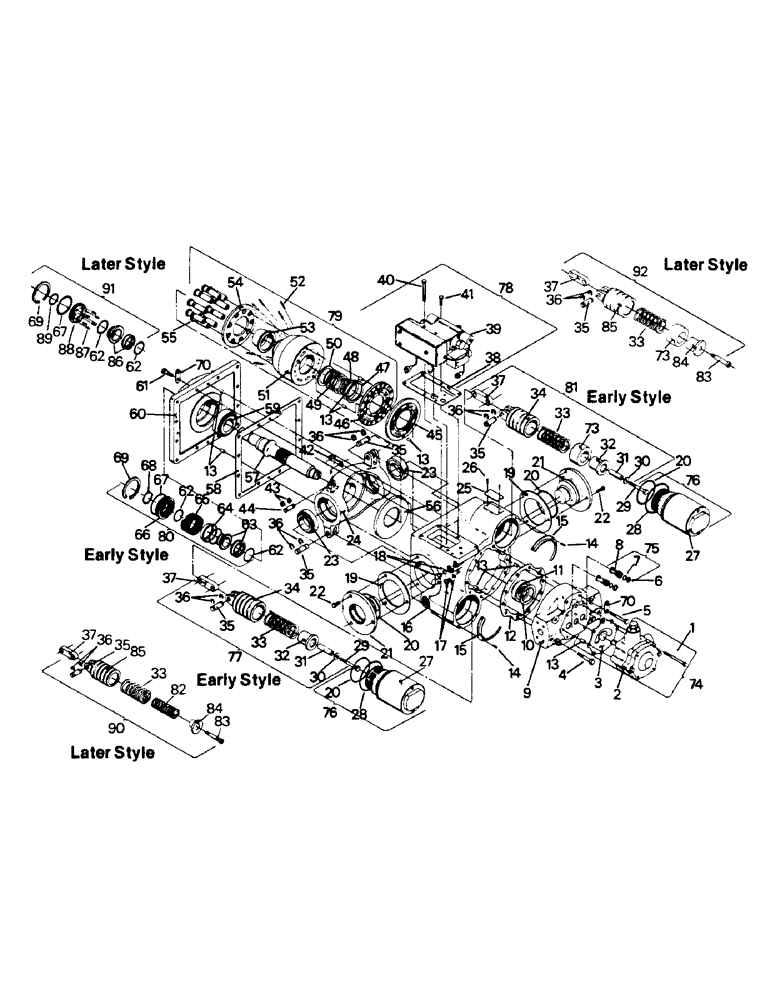

Схема запчастей Case IH PT225 - (10-16) - PT 225, PT 250 & PT 270, VARIABLE DISPLACEMENT PUMP Options & Miscellaneous
43
35
37
59
49
66
67
70
80
13
45
31
69
40
29
67
27
32
35
13
64
37
33
79
24
8
33
32
74
36
57
4
92
35
39
91
17
89
44
50
82
36
62
27
11
30
68
73
60
25
38
51
35
55
5
78
90
15
26
84
76
12
62
23
29
14
18
73
23
35
22
36
87
75
85
36
28
16
21
76
48
19
31
10
33
63
70
84
58
30
14
35
6
15
62
20
54
34
33
62
22
53
83
20
28
3
47
13
41
42
2
37
34
88
83
20
1
13
21
81
77
86
52
36
36
9
56
37
61
20
65
7
69
85
19
46

Артикул

Название

Примечание

Количество

1-3448

PUMP ASSY

1шт.

50-1294T91

PUMP ASSY (PTO II)

1шт.

1

19-726

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

CAPSCREW, 5/16 x 3-3/4 UNC

4шт.

2

1-7053

CHARGE PUMP

1шт.

3

1-6294

GASKET

1шт.

4

19-46

BOLT,1/2" - 13 x 2", Gr 5

CAPSCREW, 1/2 x 2 UNC

2шт.

5

19-742

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

CAPSCREW, 1/2 x 3-3/4 UNC

4шт.

6

1-6343

RING

BACK-UP RING

2шт.

7

1-6344

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

CHECK VALVE (see ref. 75)

2шт.

9

1-6475

END COVER

1шт.

10

1-6476

PACKAGE

SHIM

1шт.

11

1-6477

BEARING

1шт.

12

1-6478

GASKET

1шт.

13

1-6339

PIN

DOWEL

9шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

14

9421614

CAPSCREW, #8 x 3/8 UNC

6шт.

15

1-6350

RETAINER

2шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

16

1-6479

HOUSING

1шт.

17

1-6352

PLUG & O-RING

1шт.

1-7090

O-RING

1шт.

18

1-6353

PLUG

& O-RING

1шт.

1-7090

O-RING

1шт.

19

1-6480

SHIM

1шт.

20

1-6355

O-RING

2шт.

21

1-6481

TRUNNION

2шт.

22

19-32

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

CAPSCREW, 7/16 x 1 UNC

6шт.

23

1-6603

BEARING

2шт.

24

1-6604

SWASHPLATE

1шт.

25

1-6360

NAMEPLATE

1шт.

26

1-6361

SCREW

2шт.

27

NSS

NOT SOLD SEPARAT

SERVO SLEEVE (see ref. 76)

2шт.

28

1-6364

O-RING

2шт.

29

19-724

CAPSCREW, 5/16 x 2-1/2 UNC Hex, 5/16"-18 x 2 1/2", G5

2шт.

30

1-6367

WASHER

2шт.

31

1-6368

SPACER

2шт.

32

1-6369

RETAINER

2шт.

33

1-6370

SPRING

2шт.

34

1-6605

PISTON

2шт.

35

1-6606

PIN ASSY.

PIN

4шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

36

1-6607

RETAINING RING

8шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

37

1-6608

LINK

2шт.

38

1-6290

GASKET

1шт.

39

1-6609

CONTROL VALVE (used w/pump P/N 01-3448 only)

1шт.

2-6779T91

VALVE, CONTROL

CONTROL VALVE (used w/pump P/N 50-1294T91 only)

1шт.

40

19-535

BOLT,5/16" - 18 x 2 3/4", Gr 5

CAPSCREW, 5/16 x 2-3/4 UNC

3шт.

41

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 x 1 UNC

3шт.

42

1-6610

LINK

1шт.

43

1-6379

RETAINING RING

2шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

44

1-6380

PIN

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

45

1-6613

PLATE

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

46

1-6615

PLATE

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

47

1-6616

RETAINING RING

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

48

1-6617

SPACER

1шт.

49

1-6618

SPRING

1шт.

50

1-6619

SPACER

1шт.

51

1-6620

TUBE ASSY.

BARREL (early style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

2-4056T1

BARREL (later style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

52

1-6621

DOWEL

6шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

53

1-6622

GUIDE

1шт.

54

1-6623

RETAINER (early style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

2-4057T1

RETAINER (later style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

55

1-6624

PISTON

9шт.

56

1-6625

THRUST PLATE

1шт.

57

1-6626

SHAFT

1шт.

58

1-6627

GASKET

1шт.

59

1-6628

BEARING

1шт.

60

1-6629

FLANGE, mounting

1шт.

61

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

12шт.

62

1-6631

O-RING

2шт.

63

1-6632

SEAL KIT

1шт.

64

1-6633

KIT

RETAINER

1шт.

65

1-6634

KIT

SPRING

1шт.

66

1-6635

KIT

RETAINER

1шт.

67

1-6636

O-RING

1шт.

68

1-6637

RETAINING RING

1шт.

69

19-5509

RETAINING RING

1шт.

70

1-7055

SHIPPING STRAP

2шт.

71

1-6639

KEY (not shown)

1шт.

72

19-5510

LOCK NUT (not shown) 1 1/4"-18, G5

1шт.

73

1-6642

SPACER

1шт.

74

1-6297

CHARGE PUMP KIT (includes ref. 1-3 & 13)

1шт.

75

1-6342

VALVE

CHECK VALVE (includes ref. 6-8)

2шт.

76

1-6362

SLEEVE

SERVO SLEEVE (includes ref. 20, 27 & 28)

2шт.

77

1-7052

SERVO PISTON (includes ref. 29-37) (early style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

78

1-6296

CONTROL VALVE KIT (includes ref. 38-41) (used w/pump P/N 01-3448 only) (for pump P/N 50-1294T91 order components seperately)

1шт.

79

1-6614

ROTATING GROUP (includes ref. 13 & 46-55) (early style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

2-3808T91

ROTATING GROUP (includes ref. 13 & 46-55) (later style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

80

1-6295

SEAL KIT

DRIVE SHAFT SEAL KIT (includes ref. 62-69) (early style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

81

1-6641

SERVO PISTON (includes ref. 29-37 & 73) (early style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

82

2-4052T1

SPRING

1шт.

83

2-4048T1

SOCKET HEAD CAPSCREW

2шт.

84

2-4049T1

RETAINER

2шт.

85

2-4055T1

PISTON

2шт.

86

NSS

NOT SOLD SEPARAT

SEAL KIT

1шт.

87

NSS

NOT SOLD SEPARAT

SEAL SPRING

6шт.

88

NSS

NOT SOLD SEPARAT

SEAL RETAINER

1шт.

89

2-3809T1

O-RING

1шт.

90

2-3807T91

SERVO PISTON (includes ref. 33, 35-37 & 82-85) (later style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

91

2-3997T91

KIT

DRIVE SHAFT SEAL KIT (includes ref. 62, 67, 69 & 86-89) (later style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

92

2-3806T91

SERVO PISTON (includes ref. 33, 35-37, 73 & 83-85) (later style)

1шт.

Pin & retaining ring kit P/N 02-2356 includes ref. 13, 15, 35, 36 43, 44, 47 & 52. Valve & bearing plate kit P/N 02-2359 includes ref. 13, 45 & 46. (C) - Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.
