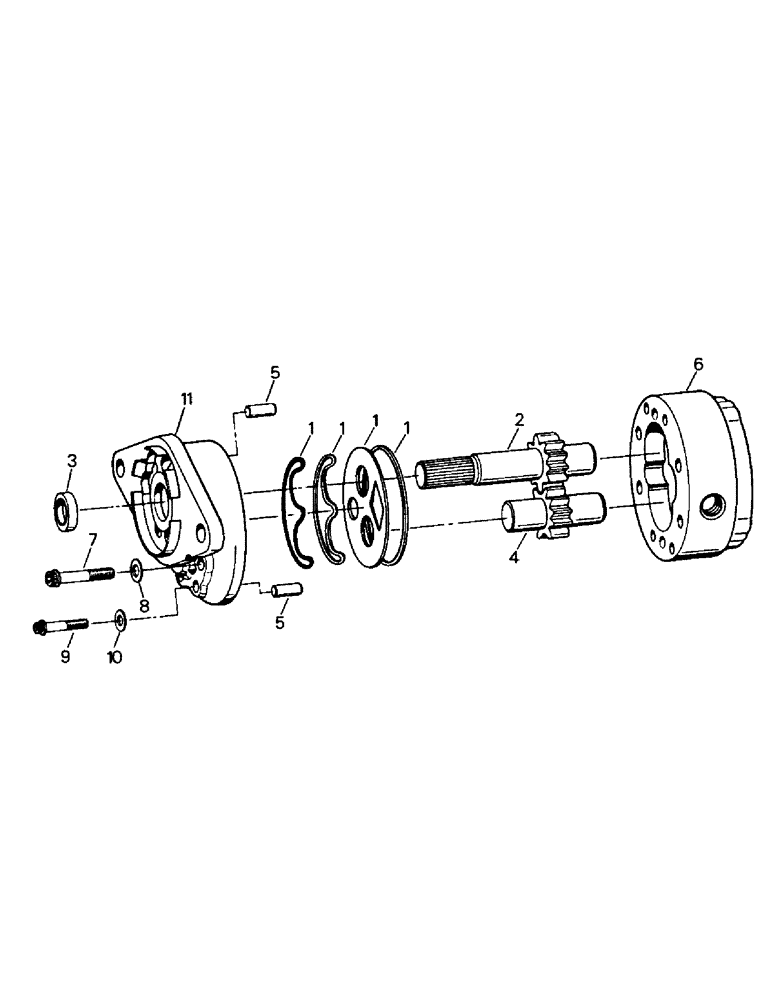

Запчасти Case IH PT225 (04-79) - PTA 280, CAT & PTA 325 LUBE PUMP (04) - Drive Train

90-1058T91

PUMP

ASSEMBLY, consists of 1-11

1шт.

1

50-1254T1

PUMP

MINOR REPAIR KIT

1шт.

2

50-1246T1

SHAFT

DRIVE SHAFT & GEAR ASSEMBLY

1шт.

3

50-1253T1

OIL SEAL

SEAL (included in kit 50-1254T1 or sold separately)

1шт.

4

50-1245T1

SHAFT

IDLER SHAT & GEAR ASSEMBLY

1шт.

5

50-1251T1

DOWEL

PIN

2шт.

6

50-1248T91

COVER

BODY ASSEMBLY

1шт.

7

19-178

CAPSCREW,3/8" - 16 x 1 1/2", Gr 8

SOCKET HEAD CAPSCREW, 3/8 x 1-1/2 UNC

4шт.

8

18-1260

SPACER

WASHER

4шт.

9

9421625

SCREW,5/16" - 18 x 1.25", Gr 8

SOCKET HEAD CAPSCREW, 5/16 x 1-1/4 UNC

4шт.

10

50-1252T1

WASHER

4шт.

11

50-1247T91

BODY ASSEMBLY (includes ref. 3)

1шт.
