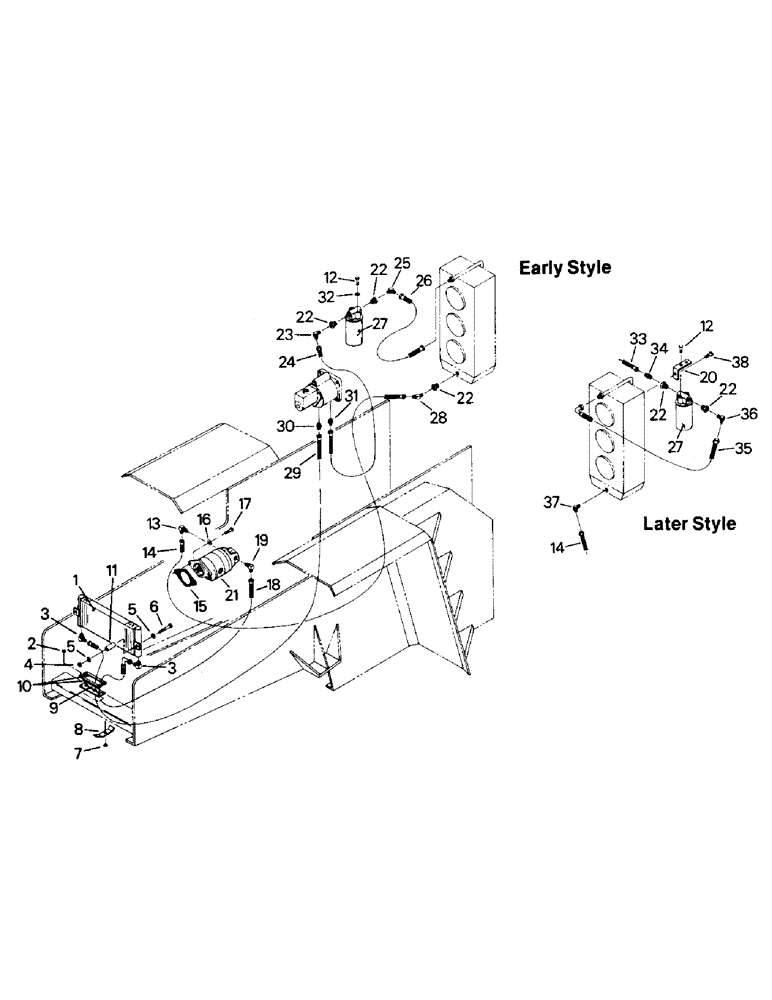

Запчасти Case IH PT225 (04-74) - TRANSFER CASE COOLING SYSTEM, PTA 296 & 297 (04) - Drive Train

1

10-39

COOLER

OIL COOLER

1шт.

2

19-76

NUT,1/4"-20, G5

4шт.

3

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

2шт.

4

19-341

LOCK NUT,3/8" - 16, GB

2шт.

5

19-107

WASHER

4шт.

6

19-133

BOLT,Hex, 3/8" - 16 x 4", Gr 5

CAPSCREW

2шт.

7

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

8

51-243

HOLDER

CLAMP, hose

1шт.

9

1-4627

CAP

DUST CAP

1шт.

10

1-4628

COVER

2шт.

11

2-1981T1

SPACER

2шт.

12

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

2шт.

13

31-394

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

HOSE ASSY

1шт.

14

31-1397

HOSE ASSY

1шт.

15

18-1176

GASKET

1шт.

16

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

17

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW

2шт.

18

31-1430

HOSE ASSY

1шт.

19

31-367

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

(10)

1шт.

20

1-5009

BRACKET, filter

1шт.

21

PUMP, hydraulic (see fig. 8-21)

1шт.

22

31-12

REDUCER

(qty 3 on early style)

2шт.

23

18-610

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

1шт.

24

31-1167

HOSE ASSY

1шт.

25

31-325

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

1шт.

26

31-1039

HOSE ASSY.

HOSE ASSY

1шт.

27

18-501

FILTER

ASSY

1шт.

18-502

FILTER CARTRIDGE

ELEMENT

1шт.

28

18-568

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 3/4"-14, NPTF

1шт.

29

31-1429

HOSE ASSY

1шт.

On tractors w/caliper style brakes, (after Feb 82) ref 29-31 & 33 are replaced by a single hose, p/n 31-2012, which goes directly from the cooler to the filter. PTA transmission cooling is shown on figures 4-59 to 4-61. See figure 1-C for serial number breaks for caliper style breaks.

1шт.

30

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

FITTING (10)

1шт.

On tractors w/caliper style brakes, (after Feb 82) ref 29-31 & 33 are replaced by a single hose, p/n 31-2012, which goes directly from the cooler to the filter. PTA transmission cooling is shown on figures 4-59 to 4-61. See figure 1-C for serial number breaks for caliper style breaks.

1шт.

31

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING (10)

1шт.

On tractors w/caliper style brakes, (after Feb 82) ref 29-31 & 33 are replaced by a single hose, p/n 31-2012, which goes directly from the cooler to the filter. PTA transmission cooling is shown on figures 4-59 to 4-61. See figure 1-C for serial number breaks for caliper style breaks.

1шт.

32

19-105

WASHER,1/4", SAE

2шт.

33

31-1523

HOSE ASSY

1шт.

On tractors w/caliper style brakes, (after Feb 82) ref 29-31 & 33 are replaced by a single hose, p/n 31-2012, which goes directly from the cooler to the filter. PTA transmission cooling is shown on figures 4-59 to 4-61. See figure 1-C for serial number breaks for caliper style breaks.

1шт.

34

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

FITTING (except below)

1шт.

31-404

ROD, CONNECTING,3/4"-16, 37 Degree x 3/4"-14, NPTF

FITTING (after Feb 82 on tractors w/caliper brake)

1шт.

35

31-1533

HOSE

ASSY

1шт.

36

31-425

ELBOW,45 Degree, 3/4-14" NPTF x 3/4"-14, 37 Degree

1шт.

37

31-416

ELBOW 45º, 1 1/16"-12, NPTF x 1"-11 1/2, 37º

1шт.

38

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW

1шт.
