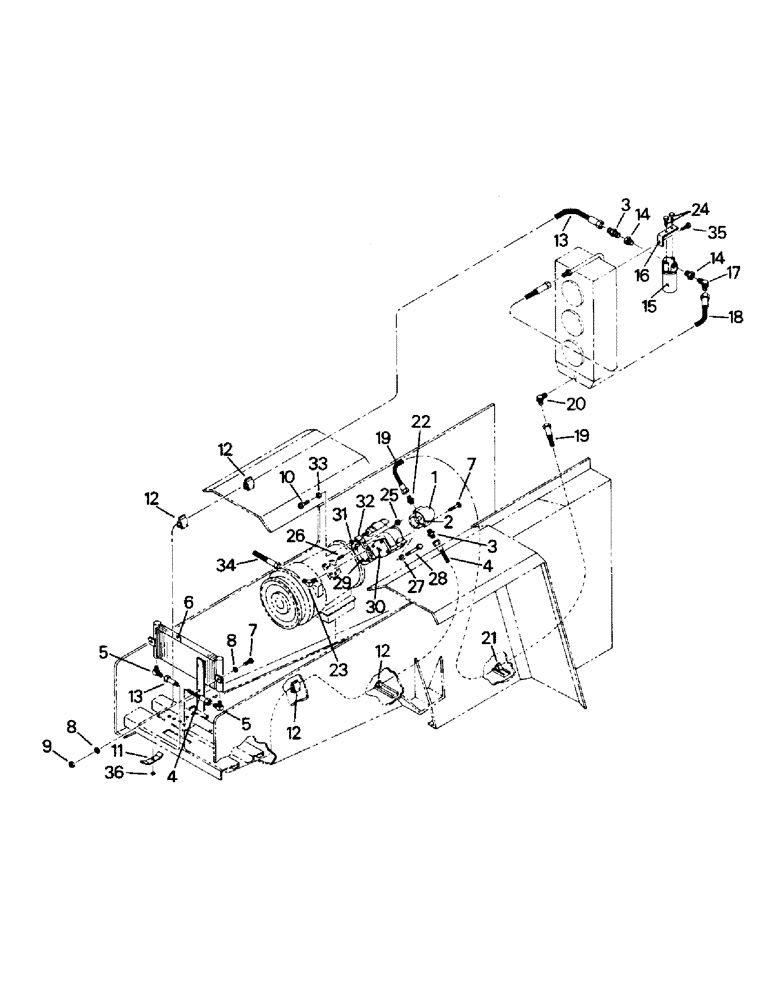

Запчасти Case IH PT225 (04-72) - TRANSFER CASE COOLING SYSTEM, PTA 270 (04) - Drive Train

1

50-1286T91

PUMP

LUBE PUMP (see fig. 4-78)

1шт.

2

18-1175

GASKET

1шт.

3

31-404

ROD, CONNECTING,3/4"-16, 37 Degree x 3/4"-14, NPTF

FITTING

2шт.

4

31-1676

HOSE ASSEMBLY

1шт.

5

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

2шт.

6

10-39

COOLER

OIL COOLER

1шт.

7

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

4шт.

8

19-107

WASHER

3/8

4шт.

9

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC

2шт.

10

2-4031T1

EYE BOLT

1шт.

11

51-243

HOLDER

CLAMP, hose

1шт.

12

31-1212

CLAMP

ASSEMBLY

4шт.

13

31-1680

HOSE ASSEMBLY

1шт.

14

31-12

REDUCER

2шт.

15

18-501

FILTER

ASSEMBLY

1шт.

18-502

FILTER CARTRIDGE

ELEMENT

1шт.

16

1-5009

BRACKET, filter

1шт.

17

31-425

ELBOW,45 Degree, 3/4-14" NPTF x 3/4"-14, 37 Degree

1шт.

18

31-1533

HOSE

ASSEMBLY

1шт.

19

31-1692

HOSE ASSEMBLY

1шт.

20

31-410

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

1шт.

21

31-1150

CLAMP

ASSEMBLY

1шт.

22

31-382

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

FITTING

1шт.

23

31-661

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1шт.

24

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 x 3/4 UNC

2шт.

25

19-91

NUT,3/8"-24, G5

3/8 UNF

4шт.

26

19-5717

STUD (1-1/2" long)

2шт.

19-5719

STUD (1-5/8" long)

2шт.

27

12-2015

GASKET

WASHER

1шт.

28

19-5716

CAPSCREW, 3/8 x 8-1/2 UNC

1шт.

29

12-1994

GASKET

(.010)

1шт.

12-1748

GASKET

(.020)

1шт.

30

90-1405T91

PTO

ASSEMBLY (see fig. 4-76)

1шт.

31

19-224

WASHER,3/8", SAE

3/8

1шт.

32

2-4026T1

SPACER

1шт.

33

19-868

JAM NUT,Jam, 3/8"-24, G5

JAM NUT, 3/8 UNF

1шт.

34

31-1671

HOSE ASSEMBLY

1шт.

35

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2 x 1-1/4 UNC

1шт.

36

19-508

LOCK NUT

LOCK NUT, 5/16 UNC

1шт.

19-135

CABLE TIE

TY RAP (not shown)

2шт.
