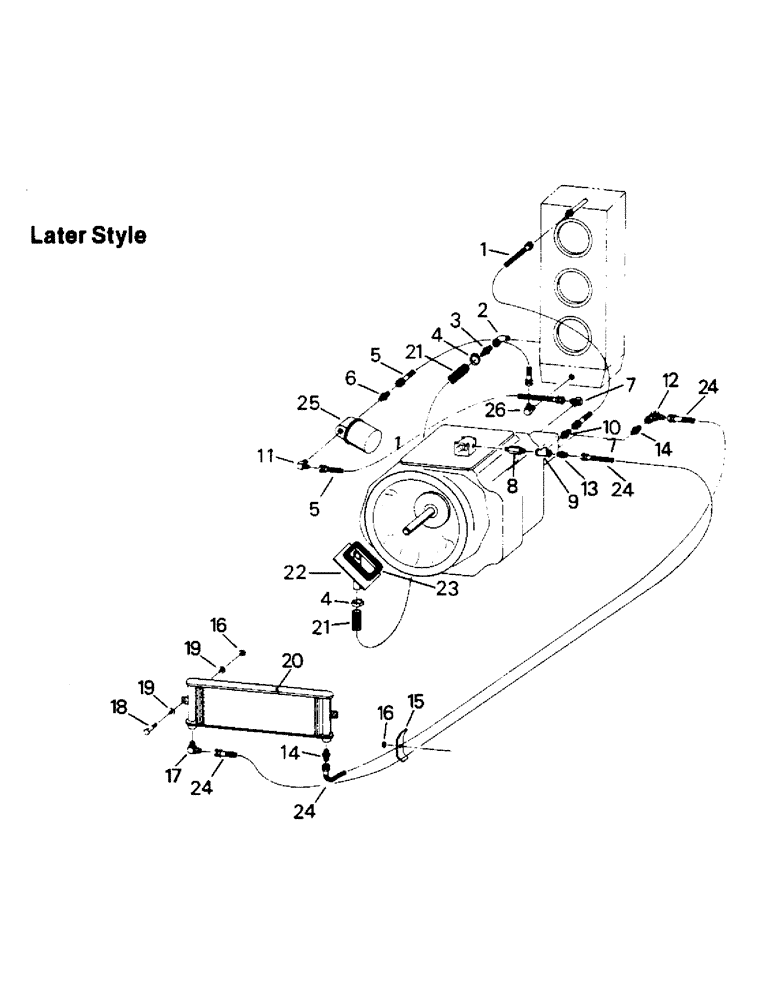

Запчасти Case IH PT225 (04-70) - TRANSFER CASE & TRANSMISSION COOLING SYSTEM, PT MODELS (04) - Drive Train

1

31-1039

HOSE ASSY.

HOSE ASSY (all except below)

1шт.

32-150

HOSE

ASSY (PT 225, 250 & 270 w/caliper brake) (after Feb 82) {A 31-028 1-1/2" close nipple and a 31-048 1-1/2" pipe elbow (not shown) are used between ref 2 and 3 on tractors w/ caliper brake. NOTE: 90

1шт.

0} adapter, 31-455 (not shown) is used between refs. 12 & 14 on later models and can be added to earlier tractors to improve hose routing. NOTE: Check valve kit #35-1477T91, whick includes a 90-4075T1 check valve and a 31-213 nipple, can be installed between refs 9 & 13 to remedy the problem of low transmission pressure when the engine is idling. NOTE: See page 1-C for serial number breaks for caliper style brakes.

1шт.

2

31-24

ELBOW

STREET ELBOW

1шт.

3

31-373

PIPE

KING NIPPLE

1шт.

4

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

2шт.

5

31-1590

HOSE

ASSY (all except below)

2шт.

31-1904

HOSE ASSY.

HOSE ASSY (PT 350 w/caliper brake) (after Feb 82)

1шт.

A later spindle, 90-3841T2, can be used to replace 2-1096, but if done, a new washer , 90-4378T1, ref. 12, which is .10 thick and is made to fit the deeper groove on 90-3841T2, must be ordered

1шт.

6

31-364

ADAPTER,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

FITTING

1шт.

7

31-1475

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1/2"-14, NPTF

1шт.

8

18-1039

NIPPLE, LUBE

ORIFICE

1шт.

9

31-31

TEE,3/8"-18 Female

1шт.

10

18-1084

ADAPTER,3/4"-16, 37 Degree x 3/8"-18, NPTF

FITTING

1шт.

11

31-400

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

1шт.

12

31-1001

FITTING

ELBOW

1шт.

13

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

FITTING

1шт.

14

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

FITTING (qty 1 on models early models)

2шт.

15

51-243

HOLDER

CLAMP, hose

2шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

4шт.

17

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

(qty 2 on some early models)

1шт.

18

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

2шт.

19

19-107

WASHER

4шт.

20

10-39

COOLER

OIL COOLER

1шт.

21

32-158

HOSE

(PT 225, 250 & 270)

1шт.

31-1052

HOSE (PT 350)

1шт.

22

1-4858

PLUG, DRAIN

TRANSMISSION DRAIN

1шт.

23

2-2769

GASKET

1шт.

24

18-541

HOSE ASSY.

HOSE ASSY

2шт.

25

12-1665

FILTER

ASSY

1шт.

18-502

FILTER CARTRIDGE

ELEMENT

1шт.

26

31-400

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

90 deg. (all except below)

1шт.

31-416

ELBOW, 45 deg. (PT 350 w/caliper style brake) 45º, 1 1/16"-12, NPTF x 1"-11 1/2, 37º

1шт.
