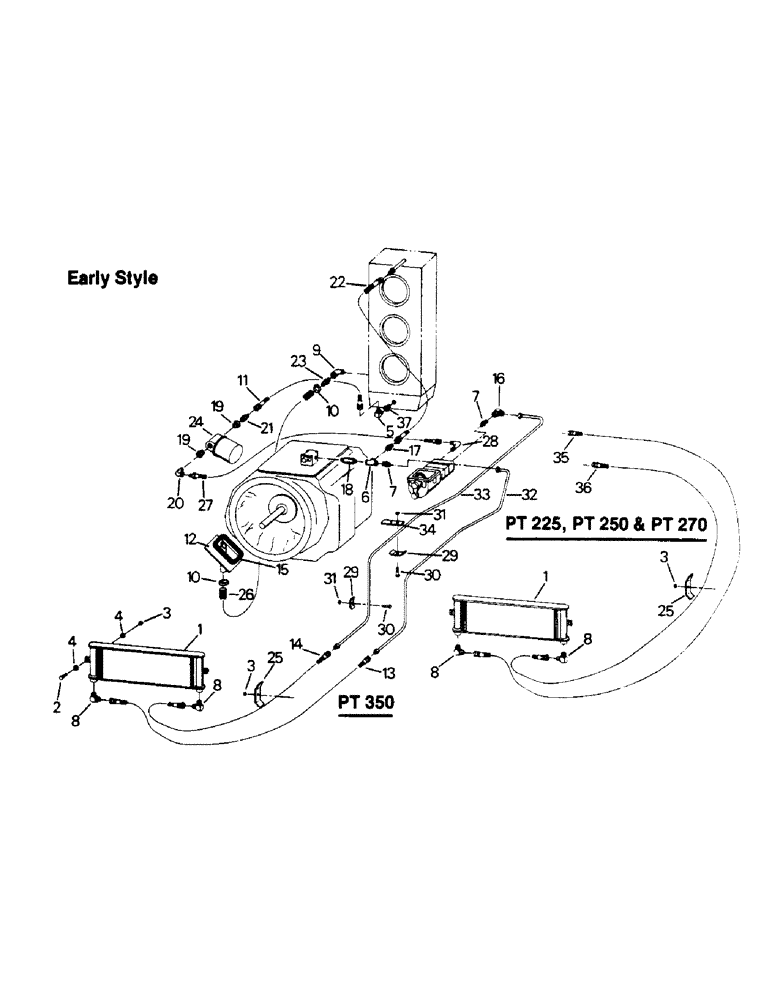

Запчасти Case IH PT225 (04-69) - TRANSFER CASE & TRANSMISSION COOLING SYSTEM, PT MODELS (04) - Drive Train

1

10-39

COOLER

OIL COOLER

1шт.

2

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

2шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

4шт.

4

19-107

WASHER

3/8

4шт.

5

18-587

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

1шт.

6

31-31

TEE,3/8"-18 Female

1шт.

7

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

FITTING

2шт.

8

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

2шт.

9

31-24

ELBOW

STREET ELBOW

1шт.

10

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

2шт.

11

31-1050

HOSE ASSEMBLY

1шт.

12

1-4858

PLUG, DRAIN

TRANSMISSION DRAIN

1шт.

13

31-1165

HOSE ASSEMBLY

1шт.

14

31-1167

HOSE ASSEMBLY

1шт.

15

2-2769

GASKET

1шт.

16

31-1001

FITTING

ELBOW

1шт.

17

18-1084

ADAPTER,3/4"-16, 37 Degree x 3/8"-18, NPTF

FITTING

1шт.

18

18-1039

NIPPLE, LUBE

ORFICE

1шт.

19

31-12

REDUCER

2шт.

20

31-21

ELBOW

1шт.

21

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

FITTING

1шт.

22

31-1039

HOSE ASSY.

HOSE ASSEMBLY

1шт.

23

31-373

PIPE

KING NIPLE

1шт.

24

12-1665

FILTER

ASSEMBLY

1шт.

18-502

FILTER CARTRIDGE

ELEMENT

1шт.

25

51-243

HOLDER

CLAMP, hose

2шт.

26

32-158

HOSE

(PT 225, PT 250 & PT 270)

1шт.

31-1052

HOSE (PT 350)

1шт.

27

12-1663

HOSE,SAE 100R1

SAE 100R1

1шт.

28

31-466

PIPE

ELBOW

1шт.

29

32-1000

CLAMP

3шт.

30

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW, 1/4 x 1-1/2 UNC

2шт.

31

280129

NUT,1/4"-20

1/2 UNC

2шт.

32

1-5633

TUBE ASSEMBLY

1шт.

33

1-5634

TUBE ASSEMBLY

1шт.

34

1-9749

STRAP

1шт.

35

18-541

HOSE ASSY.

HOSE ASSEMBLY

1шт.

36

18-1738

HOSE

ASSEMBLY

1шт.

37

31-405

REDUCER 1 1/2"-11 1/2 Male NPTF x 3/4"-14 Female NPTF

1шт.
