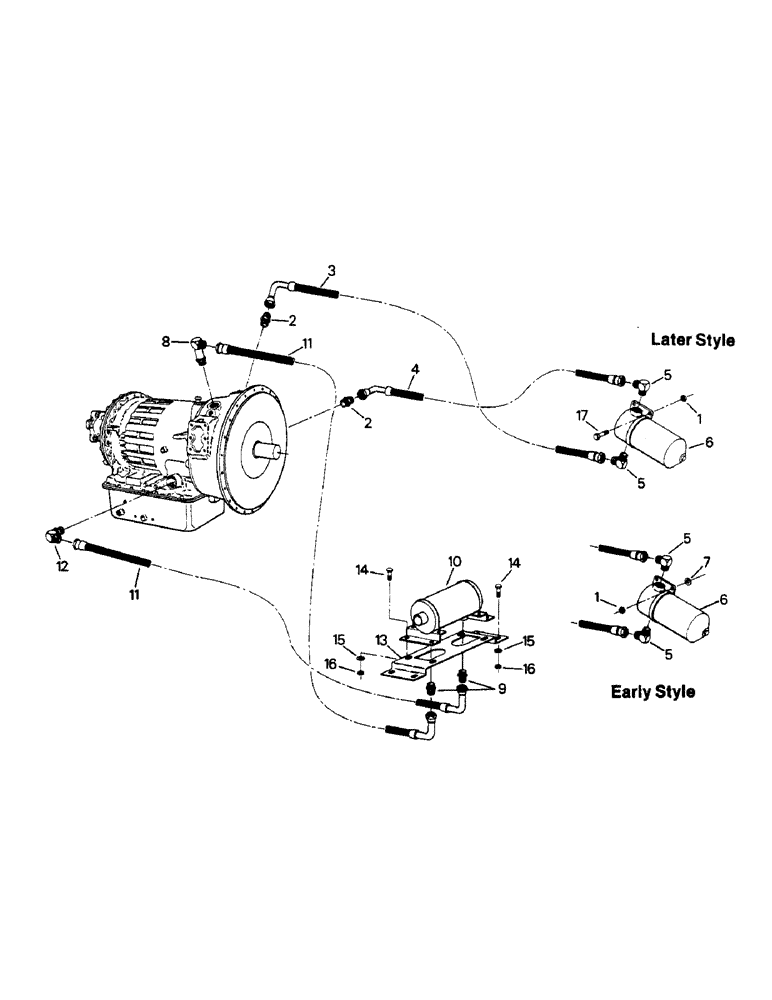

Запчасти Case IH PT225 (04-61) - PTA 296 & PTA 297 TRANSMISSION FILTER & COOLER (04) - Drive Train

1

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC

4шт.

2

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

FITTING (16)

2шт.

3

31-1399

HOSE ASSY.

HOSE ASSEMBLY

1шт.

4

31-1402

HOSE

ASSEMBLY

1шт.

5

31-1473

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

2шт.

6

1-9669

FILTER

ASSEMBLY

1шт.

2-2038

ELEMENT

1шт.

7

19-111

WASHER,5/8"

5/8

2шт.

The early style filter mounting arrangement (see insert) was only on a limited number of early production models.

1шт.

8

31-1403

ADAPTER

(16)

1шт.

9

31-382

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

FITTING

2шт.

10

1-8250

COOLER

OIL COOLER

1шт.

11

31-1401

HOSE ASSY.

HOSE ASSEMBLY

2шт.

12

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

(16)

1шт.

13

1-8252

BRACKET, oil cooler

1шт.

14

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

8шт.

15

19-107

WASHER

3/8

8шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

8шт.

17

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 x 1-1/2 UNC

4шт.

The early style filter mounting arrangement (see insert) was only on a limited number of early production models.

1шт.
