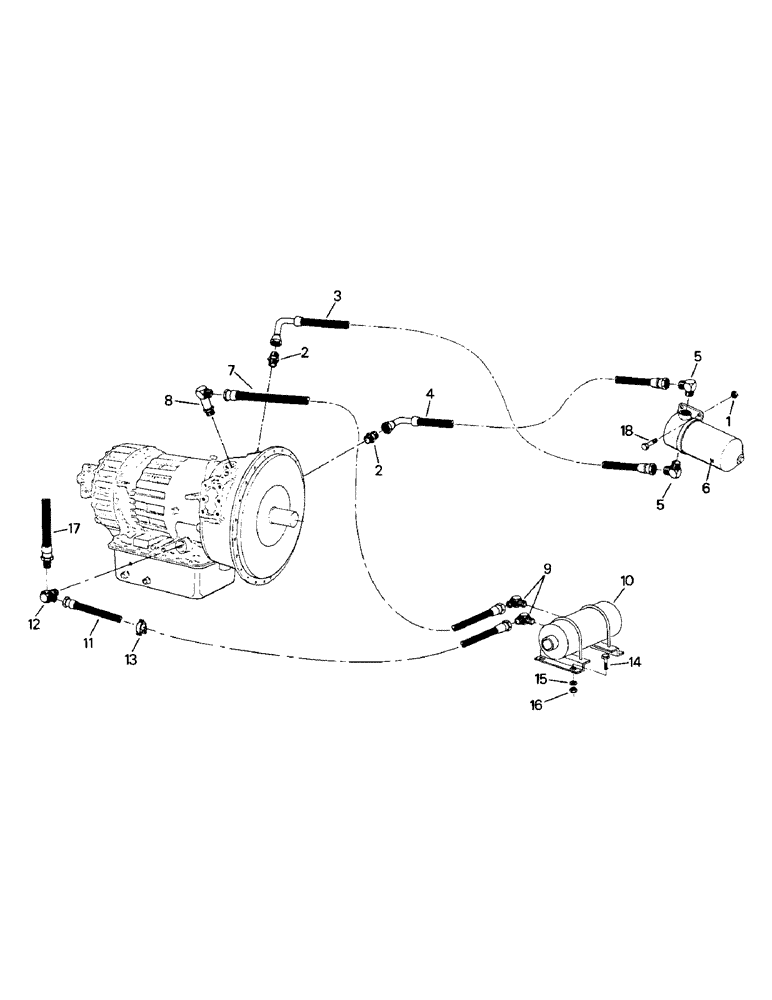

Запчасти Case IH PT225 (04-60) - PTA 270 TRANSMISSION FILTER & COOLER (04) - Drive Train

1

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC

4шт.

2

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

FITTING (16)

2шт.

3

31-1399

HOSE ASSY.

HOSE ASSEMBLY

1шт.

4

31-1402

HOSE

ASSEMBLY

1шт.

5

31-1473

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

2шт.

6

1-9669

FILTER

ASSEMBLY

1шт.

2-2038

ELEMENT

1шт.

7

31-1675

HOSE ASSEMBLY

1шт.

8

31-1403

ADAPTER

(16)

1шт.

9

31-431

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

2шт.

10

1-8250

COOLER

OIL COOLER

1шт.

11

31-1692

HOSE ASSEMBLY

1шт.

12

31-1677

ELBOW (16)

1шт.

13

31-1150

CLAMP

ASSEMBLY

1шт.

14

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW, 5/16 x 1-1/4 UNC

4шт.

15

19-700

WASHER,5/16"

5/16

4шт.

16

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

4шт.

17

31-1671

HOSE ASSEMBLY

1шт.

18

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 x 1-1/2 UNC

4шт.
