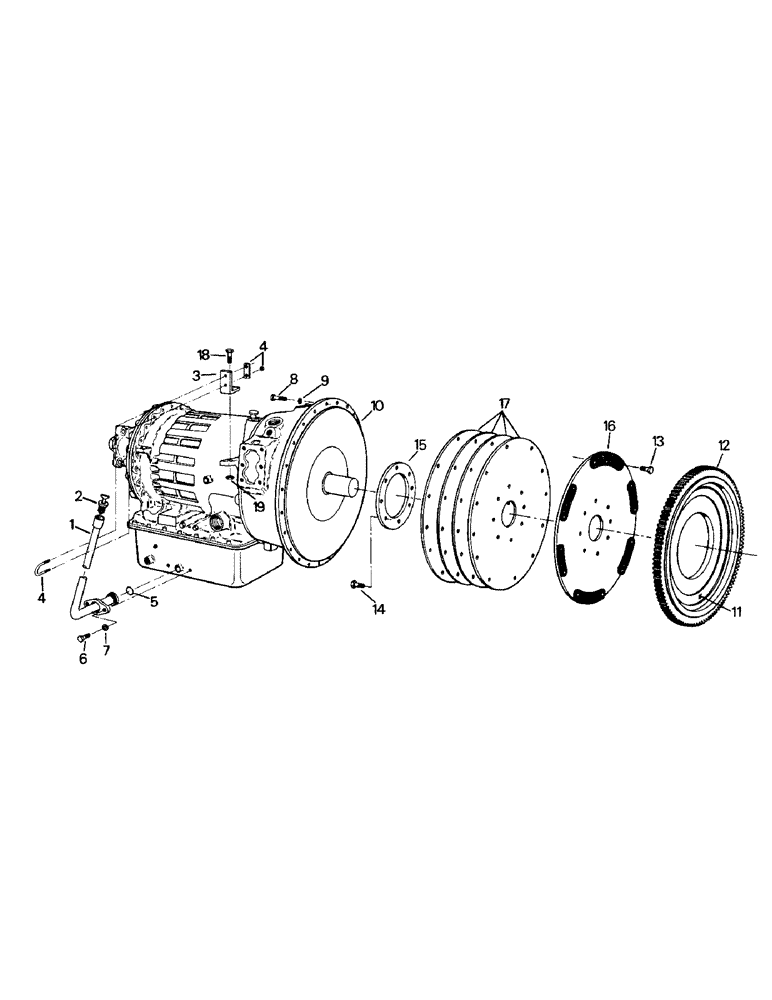

Запчасти Case IH PT225 (04-58) - TRANSMISSION MOUNTING & ATTACHING PARTS, PTA 296 & 297 (04) - Drive Train

1

1-9970

TUBE ASSEMBLY 1" OD

1шт.

2

1-9670

DIPSTICK

1шт.

3

2-1578

BRACKET

1шт.

4

19-152

U-BOLT

1шт.

5

31-1097

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

6

19-13

BOLT,Hex, 5/16" - 24 x 1", Gr 5

CAPSCREW, 5/16 x 1 UNF

2шт.

7

19-700

WASHER,5/16"

5/16

2шт.

8

19-371

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

CAPSCREW, 7/16 x 1-1/2 UNC

24шт.

9

19-118

LOCK WASHER,7/16"

7/16"

24шт.

10

1-8214

TRANSMISSION ASSEMBLY (Allison HT 740 D)

1шт.

NAP

FLYWHEEL ASSEMBLY (Allison p/n 3773781), consists of 11 & 12

1шт.

11

NAP

FLYWHEEL (Allison p/n 6771564)

1шт.

12

NAP

GEAR (Allison p/n 6752502)

1шт.

13

9409058

CAPSCREW, 1/2 x 1 UNF

12шт.

14

NAP

CAPSCREW (Cummins p/n 155561)

8шт.

NAP

FLEX PLATE ASSEMBLY (Allison p/n 6773907), consists of 15-17

1шт.

15

NAP

WEAR PLATE (Allison p/n 6773906)

1шт.

16

NAP

FLEX PLATE (Allison p/n 6773833)

1шт.

17

NAP

FLEX DISC (Allison p/n 6773832)

4шт.

18

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-1/2 UNC

1шт.

19

19-81

NUT,1/2"-13, G5

1/2 UNC

1шт.
