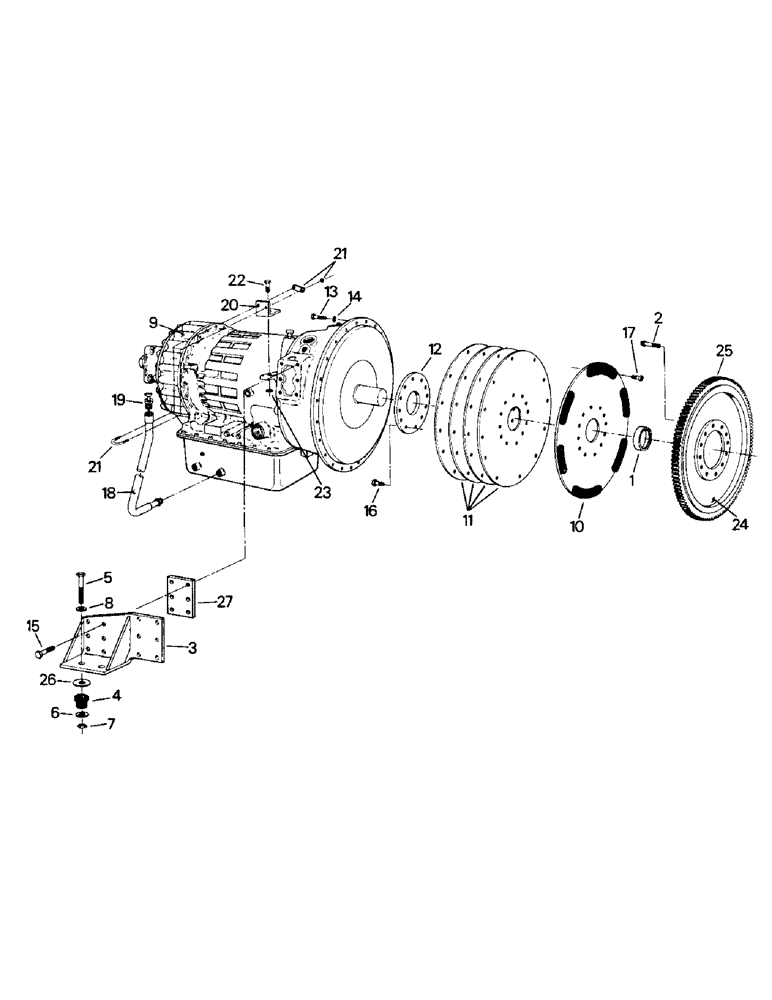

Запчасти Case IH PT225 (04-56) - TRANSMISSION MOUNTING & ATTACHING PARTS, PTA 280, CAT & 325 (04) - Drive Train

1

90-1074T1

BUSHING

(Caterpillar p/n 7N6114)

1шт.

2

19-1904

12 PT SCREW,Flg, 5/8" - 18 x 2 1/4", Gr 8

CAPSCREW, 12-pt. socket head, 5/8 x 2-1/4 UNF

12шт.

3

90-1449T1

ANCHOR

ENGINE/TRANSMISSION MOUNT (left) (when used with ref. 27 replaces p/n 02-2917T1 - code B)

1шт.

90-1450T1

SUPPORT

ENGINE/TRANSMISSION MOUNT (right) (when used with ref. 27 replaces p/n 02-2916T1 - code B)

1шт.

4

24-231

RUBBER MOUNTING

RUBBER MOUNT

4шт.

5

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

CAPSCREW, 5/8 x 4 UNC

4шт.

6

19-408

WASHER

21/32

4шт.

7

19-222

LOCK NUT,5/8" - 11, GB

5/8 UNC

4шт.

8

19-111

WASHER,5/8"

5/8

4шт.

9

90-2450T91

TRANSMISSION ASSEMBLY (Allison HT-754 CRD) (PTA 280)

1шт.

90-1062T91

TRANSMISSION ASSEMBLY (Allison HT-754 CRD) (PTA 325)

1шт.

10

90-1078T91

PLATE

FLEX PLATE (Allison p/n 6751516)

1шт.

11

90-1079T1

PLATE

FLEX DISC (Allison p/n 6750468)

4шт.

12

90-1080T1

PLATE

WEAR PLATE (Allison p/n 6753364)

1шт.

13

19-36

SCREW,Hex, 7/16" - 14 x 2 1/4", Gr 5

CAPSCREW, 7/16 x 2-1/4 UNC

24шт.

14

19-118

LOCK WASHER,7/16"

7/16"

24шт.

15

19-760

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

CAPSCREW, 5/8 x 2-3/4 UNC

12шт.

16

9409058

CAPSCREW, 1/2 x 1 UNF

12шт.

17

138307

SOCKET HEAD SCREW, 1/2 x 1 UNF Hex Soc Hd, 1/2"-20 x 1"

12шт.

18

90-1358T1

TUBE,.75"-1.125" OD

ASSEMBLY (replaces p/n 90-1162T1 - code B)

1шт.

19

1-9670

DIPSTICK

1шт.

20

90-1161T1

BRACKET

1шт.

21

19-152

U-BOLT

1шт.

22

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-1/2 UNC

1шт.

23

19-81

NUT,1/2"-13, G5

1/2 UNC

1шт.

NAP

FLYWHEEL ASSEMBLY (Caterpillar p/n 6N9667), consists of 24-25

1шт.

24

90-1076T1

FLYWHEEL

(Caterpillar p/n 6N9657)

1шт.

25

NAP

GEAR (Caterpillar p/n 4N2514)

1шт.

26

51-128

WASHER

rubber mount

1шт.

27

2-2907T1

LARGE PLATE

SPACER

2шт.
