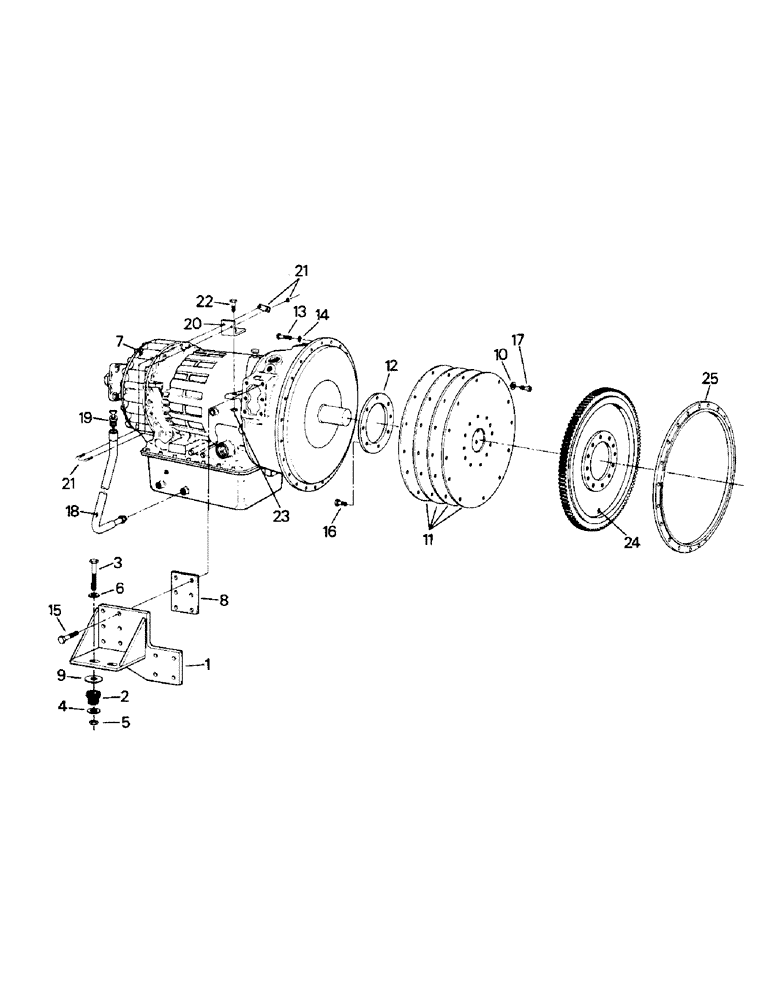

Запчасти Case IH PT225 (04-55) - TRANSMISSION MOUNTING & ATTACHING PARTS, PTA 270 (04) - Drive Train

1

70-1787T1

ENGINE/TRANSMISSION MOUNT (left)

1шт.

70-1786T1

ENGINE/TRANSMISSION MOUNT (right)

1шт.

2

24-231

RUBBER MOUNTING

RUBBER MOUNT

4шт.

3

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

CAPSCREW, 5/8 x 4 UNC

4шт.

4

19-408

WASHER

21/32

4шт.

5

19-222

LOCK NUT,5/8" - 11, GB

5/8 UNC

4шт.

6

19-111

WASHER,5/8"

5/8

4шт.

7

90-1404T92

TRANSMISSION ASSEMBLY (Allison HT-754 CRD)

1шт.

8

2-2907T1

LARGE PLATE

SPACER

2шт.

9

51-128

WASHER

rubber mount

1шт.

10

19-860

WASHER

12шт.

11

NAP

FLEX DISC ASSEMBLY (Caterpillar p/n 7N65597)

1шт.

12

NAP

WEAR PLATE (Caterpillar p/n 7N6595)

1шт.

13

19-581

CAPSCREW,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 UNC

12шт.

14

19-118

LOCK WASHER,7/16"

7/16"

12шт.

15

19-760

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

CAPSCREW, 5/8 x 2-3/4 UNC

12шт.

16

NAP

CAPSCREW (Caterpillar p/n 4D6766)

9шт.

17

9409131

BOLT,3/8" - 24 x 3/4", Gr 8

CAPSCREW, slotted head

12шт.

18

90-1358T1

TUBE,.75"-1.125" OD

ASSEMBLY (replaces p/n 90-1162T1 - code B)

1шт.

19

1-9670

DIPSTICK

1шт.

20

90-1161T1

BRACKET

1шт.

21

19-152

U-BOLT

1шт.

22

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-1/2 UNC

1шт.

23

19-81

NUT,1/2"-13, G5

1/2 UNC

1шт.

24

NAP

FLYWHEEL ASSEMBLY (Caterpillar p/n 7N6025)

1шт.

25

NAP

ADAPTER, flywheel (Caterpillar p/n 9L2778)

1шт.
