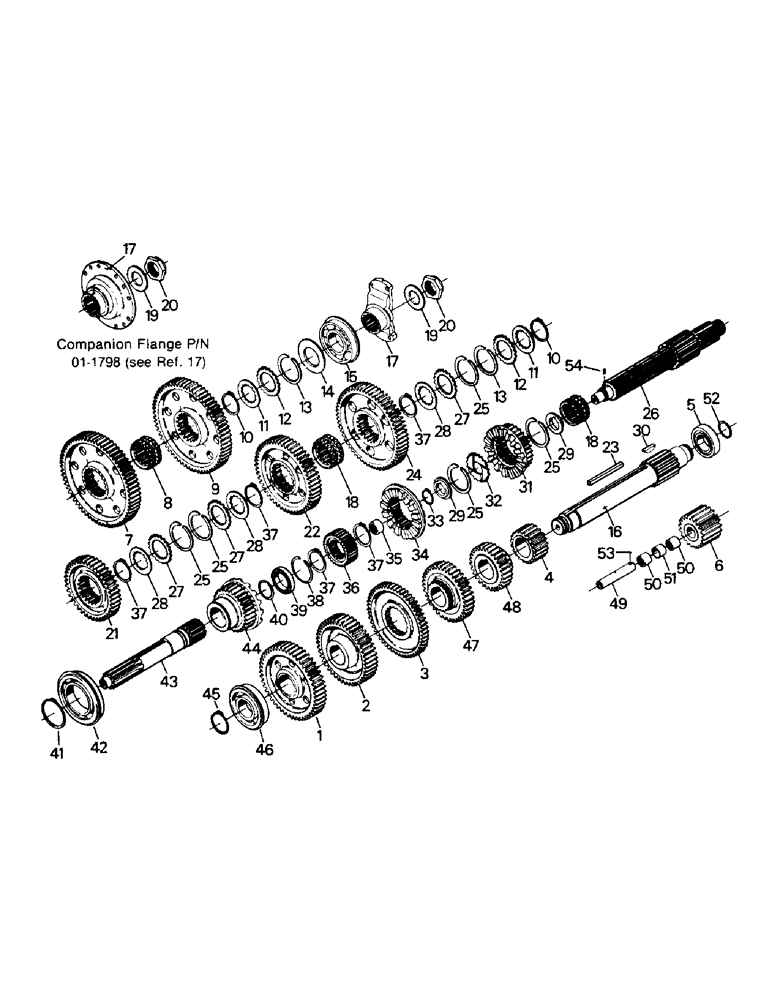

Запчасти Case IH PT225 (04-52) - PT TRANSIMISSION GEARS & RELATED PARTS (04) - Drive Train

1

12-1438

GEAR

C/S lo splitter

2шт.

2

12-1440

GEAR

C/S hi splitter (49T)

2шт.

12-2052

KIT

GEAR KIT, L.H. countershaft (with bottom mounted pump), consists of 3, 47

1шт.

3

12-1441

GEAR

P.T.O. drive (51T) (with bottom mounted pump)

1шт.

4

12-1445

GEAR

C/S (3rd & 4th) (20T)

2шт.

5

12-1447

SPHERICAL BEARING,44.99mm ID x 85mm OD x 23mm W

BEARING (can also use 5A)

2шт.

5a

90-2178T91

BEARING ASSY

KIT, bearing (includes the following items)

2шт.

90-2284T1

BEARING

1шт.

90-2285T1

SPACER

(not shown) (used ahead of bearin)

1шт.

6

12-1451

GEAR

reverse idler (21T)

2шт.

7

12-2067

GEAR

M/S (1st & 2nd) (64T)

1шт.

8

12-2070

GEAR

COLLAR, M/S (1st, 2nd & reverse)

1шт.

9

12-2068

GEAR

M/S (reverse) (64T)

1шт.

10

12-2062

RING, SNAP

SNAP RING

2шт.

11

12-2059

THRUST WASHER

THRUST WASHER

2шт.

12

12-2060

THRUST WASHER

THRUST WASHER

2шт.

13

12-2061

RING, SNAP

SNAP RING

2шт.

14

12-2057

THRUST WASHER

THRUST WASHER

1шт.

15

12-1430

BALL BEARING,59.98mm ID x 130mm OD x 31mm W

BEARING, M/S rear

1шт.

16

12-2069

SHAFT

COUNTER SHAFT (qty. 2 with bottom mounted pump) (use only on R.H. side with rear mounted pump)

1шт.

90-2287T91

SHAFT

COUNTERSHAFT (L.H. side with rear mounted pump) (can also be used on R.H. side)

1шт.

17

60-371

FORK

YOKE, transmission

1шт.

On some early PT models Companion flange p/n 01-1798 (see insert) was used in place od transmission yoke p/n 60-371. When ordering replacement parts only use yoke p/n 60-371, not flange p/n 01-1798.

1шт.

Bearing kit is p/n 12-1655

1шт.

18

12-1418

CLAMP

COLLAR, M/S

2шт.

19

12-1434

WASHER

1шт.

20

12-2056

THIN NUT,3/4"-12, Thin

NUT

1шт.

21

12-1419

GEAR

M/S (7th & 8th) (40T)

1шт.

22

12-1423

GEAR

M/N (5th & 6th) (50T)

1шт.

23

12-2065

KEY

2шт.

24

12-1425

GEAR

M/S (3rd & 4th) (52T)

1шт.

25

12-1417

RING

SNAP RING

5шт.

26

12-2064

SHAFT

MAINSHAFT

1шт.

27

12-2058

THRUST WASHER

THRUST WASHER

3шт.

28

12-1421

THRUST WASHER

THRUST WASHER

3шт.

29

12-1414

THRUST WASHER

THRUST WASHER

2шт.

30

12-1446

KEY

2шт.

31

12-1412

GEAR

M/S (9th & 10th) (30T)

1шт.

32

12-1416

THRUST WASHER

THRUST WASHER

1шт.

33

12-1413

RING, SNAP

SNAP RING

1шт.

34

12-1408

COLLAR

(splitter)

1шт.

35

12-1407

ROLLER BEARING

BEARING, input shaft pocket

1шт.

36

12-1409

GEAR

clutch (splitter) (30T)

1шт.

37

12-1420

SNAP RING

5шт.

38

12-1406

SNAP RING

1шт.

39

12-1405

BEARING,54.99mm ID x 80mm OD x 13mm W

input shaft (rear)

1шт.

40

12-1404

OIL SEAL

SNAP RING

1шт.

41

12-1402

RING, SNAP

SNAP RING

1шт.

42

12-1403

BEARING,84.98mm ID x 150mm OD x 28mm W

input shaft (front)

1шт.

43

13-195

SHAFT

INPUT SHAFT (2")

1шт.

12-1400

SHAFT

INPUT SHAFT (1-3/4")

1шт.

44

12-1401

GEAR

DRIVE GEAR (26T)

1шт.

45

12-2063

RING, SNAP

SNAP RING

2шт.

46

12-1437

BALL BEARING,2.1654" ID x 5.097" OD x 1.1417"

BEARING, C/S (front)

2шт.

47

12-1442

GEAR

L.H. C/S (7th & 8th) (with bottom mounted pump only)

1шт.

12-2066

GEAR

C/S (7th & 8th) (R.H. side only with bottom mounted pump - both sides with rear mounted pump)

1шт.

48

12-1443

GEAR

C/S (5th & 6th) (31T)

2шт.

49

12-1449

SHAFT

reverse idler

2шт.

50

12-1452

BEARING

reverse idler shaft

4шт.

51

12-1453

SPACER

reverse idler shaft bearing

2шт.

52

12-1448

OIL SEAL

SNAP RING (not needed with ref. 5A)

2шт.

53

12-1450

BALL

reverse idler shaft

2шт.

54

12-1415

PIN

M/S thrust washer

2шт.
