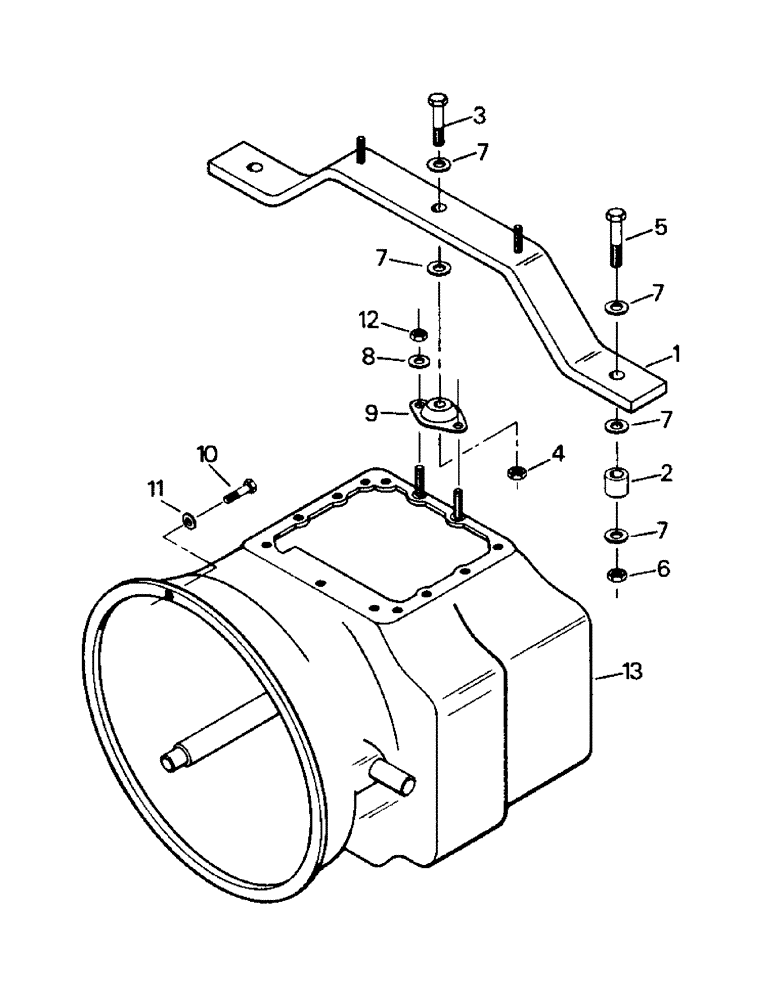

Запчасти Case IH PT225 (04-46) - PT TRANSMISSION MOUNTING (04) - Drive Train

1

1-4848

HANGER

PLATE, transmision hanger

1шт.

2

1-3221

SPACER

2шт.

3

19-63

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAPSCREW, 3/8 x 2-1/2 UNC

1шт.

4

19-324

NUT,Hvy, 3/4" - 10, Gr 5

LOCK NUT, 3/4 UNC

1шт.

5

19-566

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

CAPSCREW, 3/4 x 3-1/2 UNC

2шт.

6

19-84

NUT,3/4"-10, G5

3/4 UNC

2шт.

7

19-112

WASHER,3/4"

3/4

8шт.

8

19-120

LOCK WASHER,5/8"

5/8"

2шт.

9

24-230T1

HITCH DAMPER

ISOLATOR, rubber (24-230)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

10

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 x 1-1/2 UNC

12шт.

11

19-224

WASHER,3/8", SAE

3/8

12шт.

12

408

NUT,5/8" - 18, Gr 5

Mounting stud 5/8"-18, G5

2шт.

13

TRANSMISSION ASSEMBLY (see figures 4-46 to 4-52 for the various transmission assemblies)

1шт.
