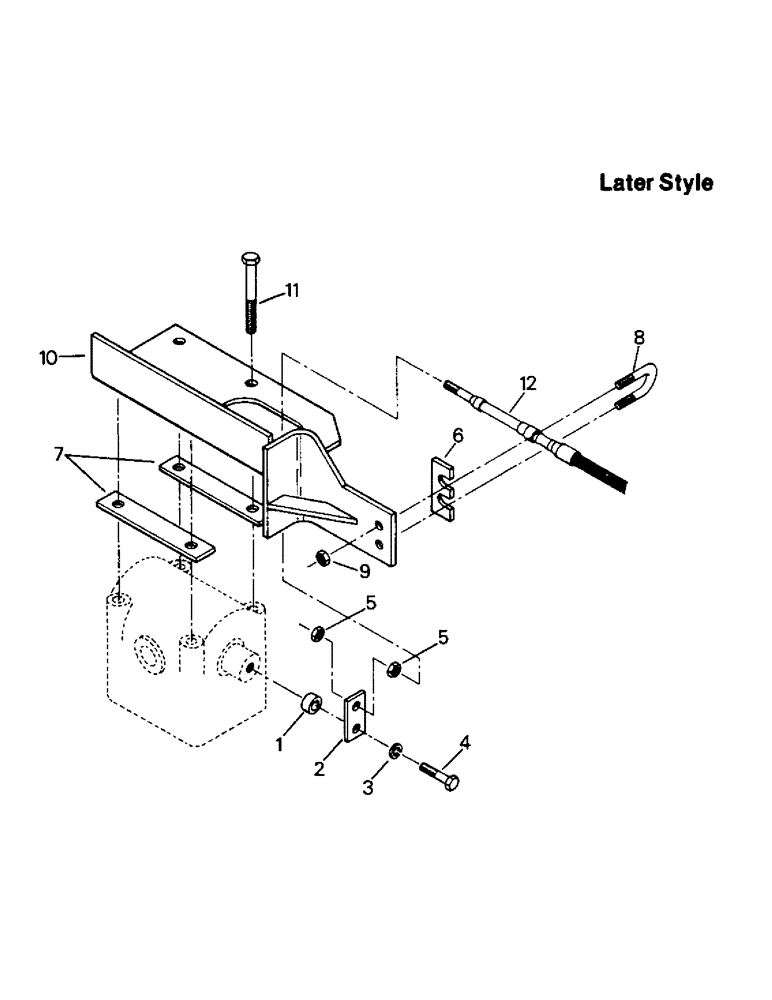

Запчасти Case IH PT225 (04-45) - PT TWO-SPEED TRANSMISSION LINKAGE (04) - Drive Train

1

2-3010T1

SPACER

1шт.

2

2-3009T1

STRIP

TAB

1шт.

3

19-115

LOCK WASHER,1/4"

1/4"

1шт.

4

19-1048

CAPSCREW, 1/4 x 1-1/2 UNF Hex, 1/4"-28 x 1 1/2", G5

1шт.

5

19-236

JAM NUT,5/16" - 24, Gr 5

JAM NUT, 5/16 UNF

2шт.

6

2-3008T1

SHIM

1шт.

7

4-1017

SPACER

linkage

2шт.

8

19-5402

BOLT

U-BOLT

1шт.

9

19-509

LOCK NUT,5/16"-24, GB

5/16 UNF

2шт.

10

2-3005T1

BRACKET

linkage

1шт.

Superseded - Old p/n must be used on models prior to s/n break. New p/n will fit models after the s/n break only.

1шт.

11

19-922

CAPSCREW, 5/16 x 5 UNC Hex, 5/16"-18 x 5", G5

4шт.

12

1-4252

CABLE

2-speed transmission

1шт.
