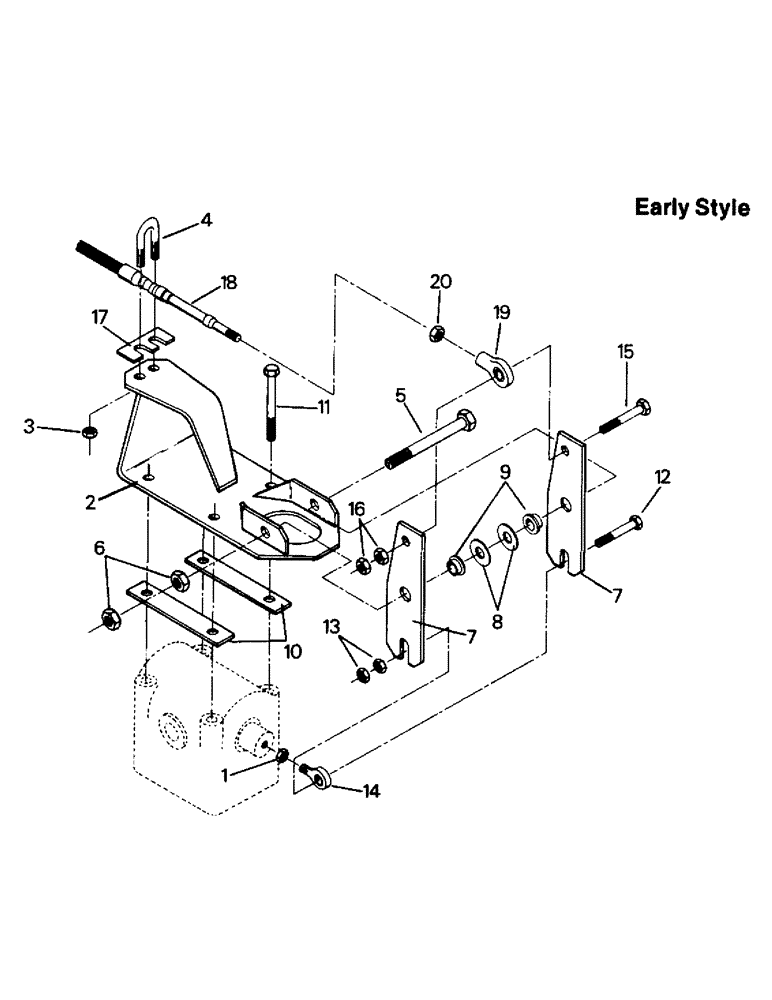

Запчасти Case IH PT225 (04-43) - PT 225, PT 250 & PT 270 TWO-SPEED TRANSMISSION LINKAGE (04) - Drive Train

1

19-89

NUT,1/4"-28, G5

1/2 UNF

1шт.

2

1-4230

BRACKET, linkage

1шт.

SHOULD USE PART A35696.

1шт.

Ref the illustration silhouette below items 10 see figure 4-46.

1шт.

3

19-509

LOCK NUT,5/16"-24, GB

5/16 UNF

2шт.

4

19-5402

BOLT

U-BOLT

1шт.

5

19-664

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

CAPSCREW, 1/2 x 3-1/4 UNC

1шт.

6

19-81

NUT,1/2"-13, G5

1/2 UNC

2шт.

7

1-4229

ARM

linkage

2шт.

8

19-109

WASHER,1/2"

1/2

2шт.

9

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING

2шт.

10

4-1017

SPACER

linkage

2шт.

11

19-922

CAPSCREW, 5/16 x 5 UNC Hex, 5/16"-18 x 5", G5

4шт.

12

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW, 1/4 x 1-1/2 UNC

1шт.

13

19-76

NUT,1/4"-20, G5

1/4 UNC

2шт.

14

19-1030

END

ROD END, male

1шт.

SHOULD READ ROD END, MALE NF.

1шт.

15

19-8

BOLT,5/16" - 18 x 1 1/2", Gr 5

CAPSCREW, 5/16 x 1-1/2 UNC

1шт.

16

19-77

NUT,5/16"-18, G5

5/16 UNC

2шт.

17

1-3712

SHIM

1шт.

18

1-4252

CABLE

2-speed transmission

1шт.

19

1-3332

BALL JOINT

ROD END, female

1шт.

20

19-236

JAM NUT,5/16" - 24, Gr 5

JAM NUT, 5/16 UNF

1шт.
