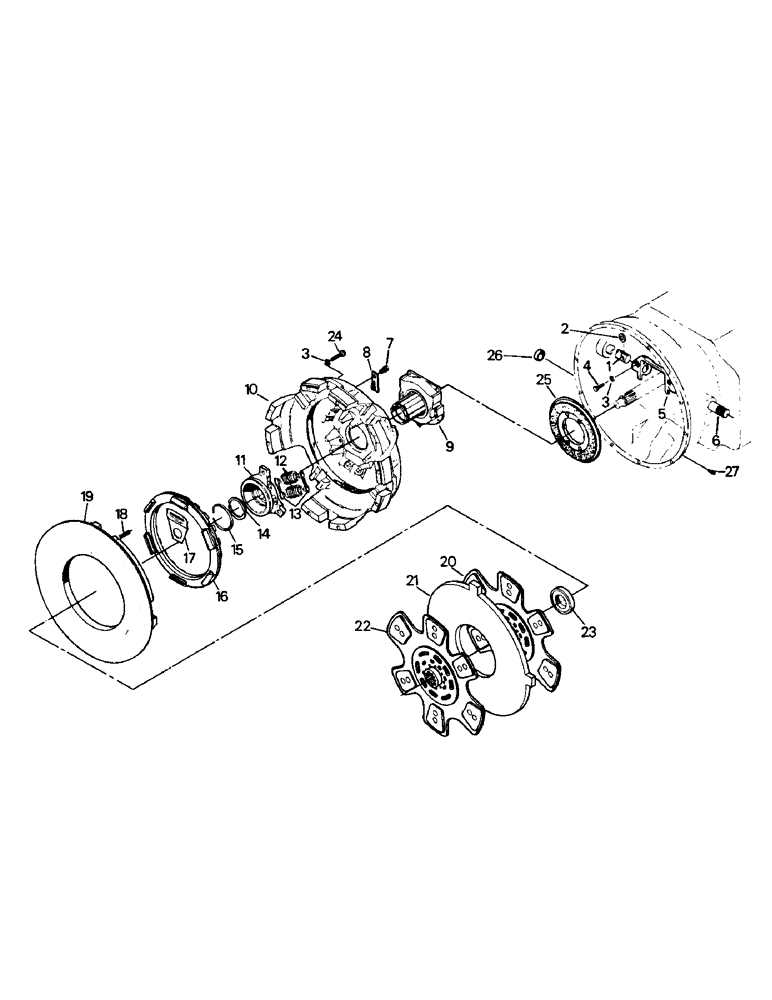

Запчасти Case IH PT225 (04-42) - PT 350 CLUTCH ASSEMBLY - 15-1/2" (04) - Drive Train

1

13-130

SHAFT

short

1шт.

2

13-129

WASHER

2шт.

3

19-118

LOCK WASHER,7/16"

7/16"

10шт.

4

65-59

BOLT,Hex, M10 x 60mm

CAPSCREW, 7/16 x 1-3/16 UNC

2шт.

5

13-79

YOKE

release

1шт.

6

13-204

SHAFT

long

1шт.

1-4632T92

CLUTCH

ASSEMBLY, consist of 7-22

1шт.

13-202

COVER ASSY

PRESSURE PLATE ASSEMBLY, consists of 7-19

1шт.

7

13-160

BOLT & LOCK WASHER

1шт.

8

13-159

STRIP

LOCK, adjusting ring

1шт.

9

13-208

CLUTCH

BEARING & SLEEVE ASSEMBLY

1шт.

13-208 SUBS TO A 1997782C2R WHICH IS A CLUTCH. IT IS A CORRECT SUB (PER PARTS NOTES). THE VENDOR WILL NOT LONGER SUPPLY THIS BEARING ASSY.

1шт.

10

13-203

RING

flywheel

1шт.

11

13-206

SCREW

RETAINER, release sleeve

1шт.

12

13-165

SPRING

pressure

6шт.

13

13-166

PIVOT

release spring

6шт.

14

13-209

OIL SEAL

RING, release sleeve

2шт.

15

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

SNAP RING

1шт.

16

1-4630

GASKET

RING, adjusting

1шт.

17

1-4629

LEVER

6шт.

18

13-214

SPRING

return

4шт.

19

13-213

LARGE PLATE

PLATE, pressure

1шт.

20

13-201

DISC

rear (ceramic pads with orange damper springs)

1шт.

The early/later style ceramic disc or the metallic discs must not be intermixed.

1шт.

13-201T1

DISC, rear (ceramic pads with red damper springs)

1шт.

21

13-200

LARGE PLATE

DISC, intermediate

1шт.

22

13-199

DISC

front (ceramic pads with orange damper springs)

1шт.

The early/later style ceramic disc or the metallic discs must not be intermixed.

1шт.

13-199T1

DISC, front (ceramic pads with red damper springs)

1шт.

13-199T2

DISC

front (metallic pads)

1шт.

23

66-39

BALL BEARING,1.1811" ID x 2.8346" OD x 0.7486"

pilot

1шт.

24

19-892

CAPSCREW,Hex, 7/16" - 14 x 2 1/2", Gr 8

7/16 x 2-1/2 UNC

8шт.

25

13-194

DISC

BRAKE, clutch (2")

1шт.

26

31-90

PLUG

1шт.

27

31-93

FITTING

ZERK

2шт.

13-1002

KIT

ANTI-RATTLE SPRING KIT (not shown)

1шт.
