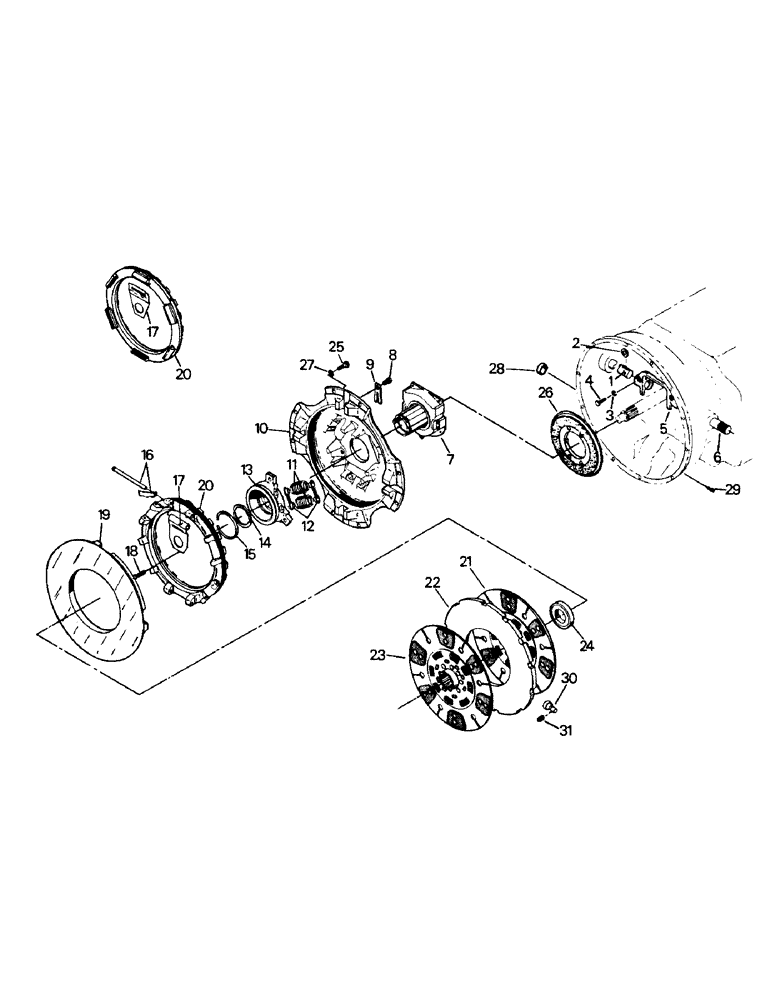

Запчасти Case IH PT225 (04-41) - PT 225, PT 250 & PT 270 14" CLUTCH ASSEMBLY (04) - Drive Train

1

13-130

SHAFT

short

1шт.

2

13-129

WASHER

2шт.

3

19-118

LOCK WASHER,7/16"

7/16"

2шт.

4

65-59

BOLT,Hex, M10 x 60mm

CAPSCREW, 7/16 x 1-3/16 UNC

2шт.

5

13-79

YOKE

release

1шт.

6

13-204

SHAFT

long

1шт.

1-4631T92

CLUTCH

ASSEMBLY (C), consists of 7-23

1шт.

Superseded - old p/n can be used on all models prior to s/n break only. New p/n when old stock is depleted as it will work for all.

1шт.

1997780C2R

REMAN-CLUTCH PLATE

Remanufactured 14" Clutch Assembly

1шт.

1997780C2C

CORE-CLUTCH PLATE

Return Part Number Clutch Assembly

1шт.

13-139

PLATE

PRESSURE PLATE ASSEMBLY, consists of 7-20

1шт.

7

13-179

KIT

BEARING & SLEEVE ASSEMBLY

1шт.

8

13-160

BOLT & LOCK WASHER

1шт.

9

13-159

STRIP

LOCK, adjusting ring

1шт.

10

13-155

OIL SEAL

RING, flywheel

1шт.

11

13-165

SPRING

pressure

6шт.

12

13-166

PIVOT

pressure spring

6шт.

13

13-164

BOLT

RETAINER, release sleeve

1шт.

14

13-52

OIL SEAL

RING, releas sleeve

1шт.

15

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

SNAP RING

1шт.

16

NAP

PIN & CLIP KIT

1шт.

The early/later style ceramic discs or the metallic discs must not be intermixed. Ring p/n 01-4630 and lever p/n 01-4629 shown at the left will replaces ref. 16, 17 & 20. Order pins (p/n 13-162 qty. 6) and clips (p/n 13-163 qty. 3) as needed instead of the pin & clip kit.

1шт.

17

13-161

LEVER

6шт.

1-4329

LEVER

1шт.

The early/later style ceramic discs or the metallic discs must not be intermixed. Ring p/n 01-4630 and lever p/n 01-4629 shown at the left will replaces ref. 16, 17 & 20. Order pins (p/n 13-162 qty. 6) and clips (p/n 13-163 qty. 3) as needed instead of the pin & clip kit.

1шт.

18

13-154

SPRING

return

4шт.

19

13-153

LARGE PLATE

PLATE, pressure

1шт.

20

13-158

OIL SEAL

RING, adjusting

1шт.

1-4630

GASKET

RING, adjusting

1шт.

The early/later style ceramic discs or the metallic discs must not be intermixed. Ring p/n 01-4630 and lever p/n 01-4629 shown at the left will replaces ref. 16, 17 & 20. Order pins (p/n 13-162 qty. 6) and clips (p/n 13-163 qty. 3) as needed instead of the pin & clip kit.

1шт.

21

13-147

DISC

rear (ceramic pads with orange damper springs)

1шт.

13-147T1

DISC, rear (ceramic pads with red damper springs)

1шт.

13-147T2

CLUTCH DISC

DISC, rear (metallic pads)

1шт.

22

13-148

CLUTCH DISC

DISC, intermediate

1шт.

23

13-146

DISC

front (ceramic pads with orange damper springs)

1шт.

The early/later style ceramic discs or the metallic discs must not be intermixed. Ring p/n 01-4630 and lever p/n 01-4629 shown at the left will replaces ref. 16, 17 & 20. Order pins (p/n 13-162 qty. 6) and clips (p/n 13-163 qty. 3) as needed instead of the pin & clip kit.

1шт.

13-146T1

DISC, front (ceramic pads with red damper springs)

1шт.

13-146T2

DISC

front (metallic pads)

1шт.

24

66-39

BALL BEARING,1.1811" ID x 2.8346" OD x 0.7486"

pilot

1шт.

25

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

CAPSCREW, 3/8 x 1 UNC

8шт.

26

13-178

BRAKE

clutch (1-3/4")

1шт.

27

19-117

LOCK WASHER,3/8"

3/8"

8шт.

28

31-90

PLUG

1шт.

29

31-93

FITTING

ZERK

2шт.

30

13-167

PIN

DRIVE PIN

6шт.

31

19-27

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

12шт.

13-1002

KIT

ANTI-RATTLE SPRING KIT (not shown)

1шт.

1997780C2R

REMAN-CLUTCH PLATE

Remanufactured Clutch Assembly PT225/PT250/PT270

1шт.

1997780C2C

CORE-CLUTCH PLATE

Return Part Number

1шт.
