Запчасти Case IH PT225 (04-40) - PT CLUTCH CONTROL & LUBRICATION (04) - Drive Train

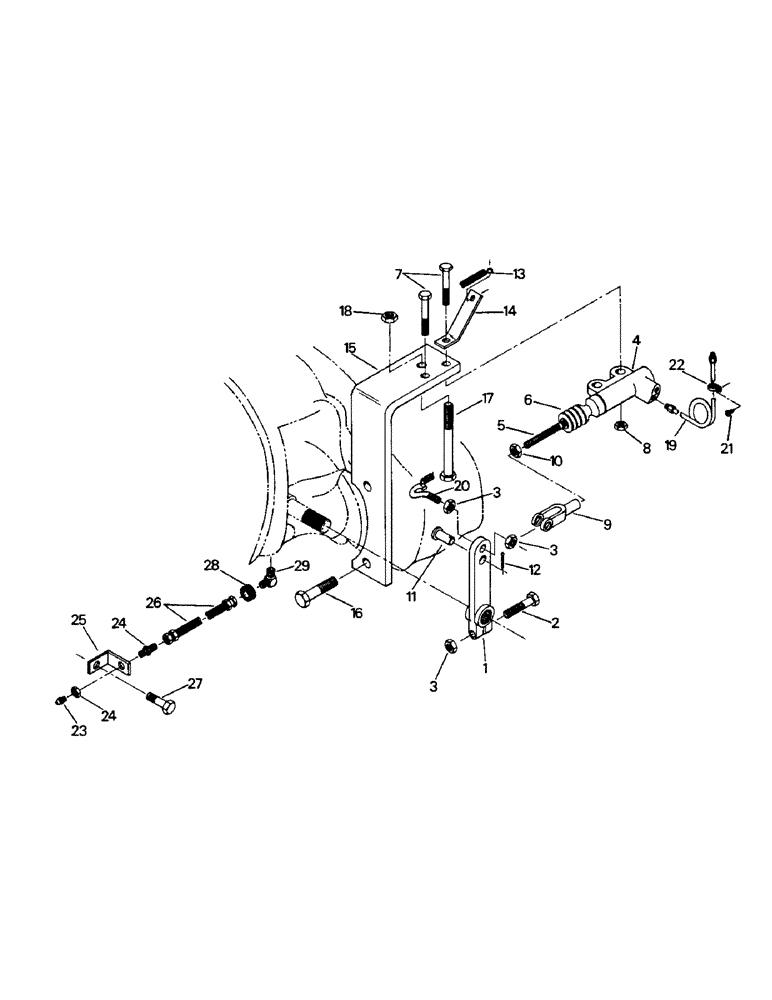

Схема запчастей Case IH PT225 - (04-40) - PT CLUTCH CONTROL & LUBRICATION (04) - Drive Train
9
4
1
24
12
24
7
29
15
3
20
19
16
18
26
3
10
17
11
23
14
13
5
27
28
3
8
2
6
22
25
21

Артикул

Название

Примечание

Количество

1

54-298

LEVER

clutch

1шт.

2

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8 x 2 UNC

1шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

3шт.

4

54-299

CYLINDER ASSY.,49.53mm Stroke

SLAVE CYLINDER

1шт.

4

54-299R

REMAN-HYD CYLINDER

PT225 Steiger Bearcat Series III, PT270 Steiger Cougar Series III, Both (1/77-12/81)

1шт.

4

54-299C

CORE-HYD CYLINDER

Return Number

1шт.

35-1009

KIT

REPAIR KIT

1шт.

54-299 does not include 1-9436 push rod per ecn 20020. NAPO-TECH

1шт.

5

1-9436

PUSH ROD

PUSHROD

1шт.

6

1-3082

BOOT

1шт.

7

19-730

CAPSCREW,Hex, 7/16" - 14 x 2 1/2", Gr 5

7/16 x 2-1/2 UNC

2шт.

8

19-79

NUT,7/16"-14, G5

7/16 UNC

2шт.

9

19-139

YOKE

CLEVIS

1шт.

10

19-868

JAM NUT,Jam, 3/8"-24, G5

3/8 UNF

1шт.

11

19-145

CLEVIS PIN,3/8" x 1.06"

1шт.

12

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

13

2-2027

SPRING

1шт.

THIS SPRING IS ABOUT 8" LONG,ALSO NOTE SOME MACHINES HAD TWO SPRINGS P/N

1шт.

14

2-2026

STRAP

1шт.

15

54-297

BRACKET

1шт.

16

19-817

SCREW,Hex, 5/8"-11 x 2", G8

CAPSCREW, 5/8 x 2 UNC

2шт.

17

19-825

CAPSCREW,Hex, 1/2" - 13 x 4 1/2", Gr 8

1/2 x 4-1/2 UNC

1шт.

18

19-81

NUT,1/2"-13, G5

1/2 UNC

1шт.

19

25-1000

TUBE

1шт.

20

19-5574

EYEBOLT,3/8" - 16 x 275mm

EYE BOLT

1шт.

21

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, tapping, #10 x 1/2 UNC

1шт.

22

32-68

COTTER PIN,3/32" x 1/2"

CLIP

1шт.

23

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

24

31-660

ADAPTER

1шт.

25

4-550

BRACKET

1шт.

26

32-309

HOSE

ASSEMBLY

1шт.

27

19-479

CAPSCREW,Hex, 3/8" - 24 x 1", Gr 5

3/8 x 1 UNF

1шт.

28

1-3031

GROMMET

1шт.

29

31-661

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1шт.

1-5696 MEASURED ABOUT 4 3/8" LONG.

1шт.

Выбрано товаров: 35
