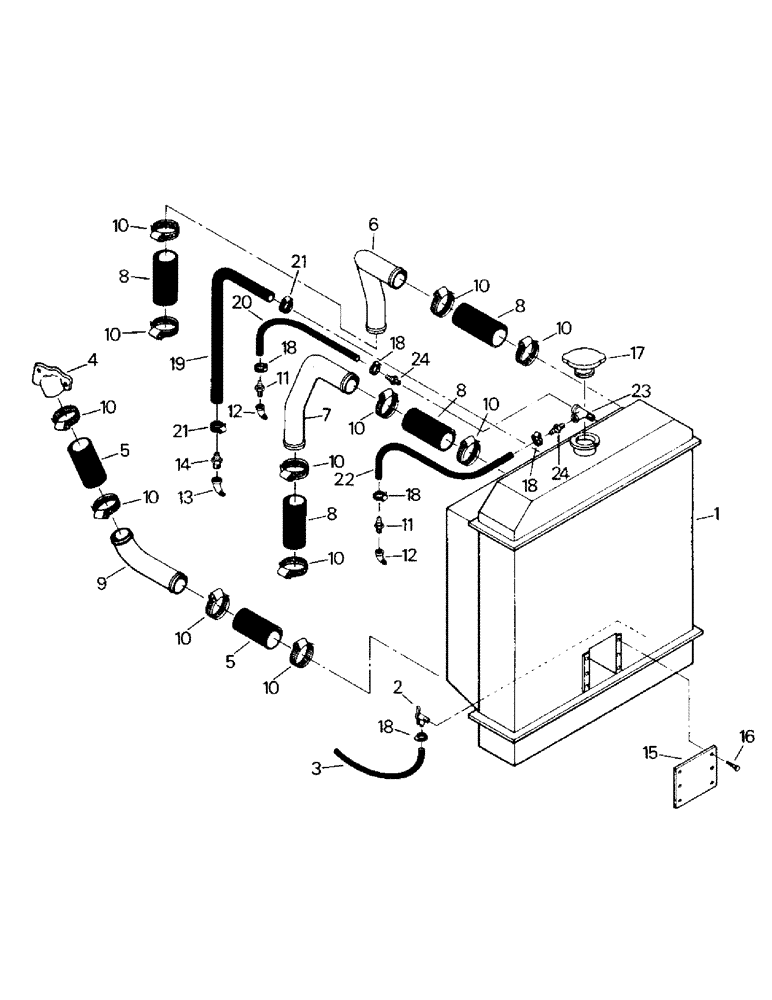

Запчасти Case IH PT225 (04-35) - PT 350 RADIATOR & HOSES (04) - Drive Train

1

1-6962T91

RADIATOR ASSEMBLY (with PTO option)

1шт.

90-1251T91

RADIATOR

ASSEMBLY (without PTO option)

1шт.

2

31-159

COCK, DRAIN

DRAIN COCK

1шт.

3

1-3811

HOSE

1шт.

4

5-387

WATER INLET

1шт.

1-2907

GASKET, water inlet (not shown)

1шт.

5

1-3804

RADIATOR HOSE,2.75" ID x 5.00", SAE 20R4

2.75" ID x 5.00", SAE 20R4

2шт.

6

1-3881

TUBE 13.69, 6.5" Length

1шт.

7

1-3838

TUBE 13.69, 11.19" Length

1шт.

8

31-1007

HOSE

4шт.

9

1-3832

TUBE 2.75" OD, 9.5" Length

1шт.

10

32-23

CLAMP,#44, 2.31/3.25 Type F Worm

12шт.

11

31-615

ROD, CONNECTING

BARBED FITTING

2шт.

12

31-207

ELBOW

STREET ELBOW

2шт.

13

31-220

ADAPTER

STREET ELBOW

1шт.

14

31-318

HOSE

BARBED FITTING

1шт.

15

1-4633

COVER, radiator

1шт.

16

276-1448

SELF-TAP SCREW,Hex Hd, #8-32 x 1/2"

SCREW, tapping, 5/32 x 1/2 UNC

6шт.

17

10-21

CAP

radiator

1шт.

18

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

5шт.

19

31-1508

HOSE,1.00" ID x 51.75"

1шт.

20

31-1184

HOSE,6.4 mm ID x 914.40 mm

1шт.

21

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

22

31-1183

HOSE,6.4 mm ID x 1498.60 mm

1шт.

23

444148

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1шт.

24

31-1186

FITTING

BARBED FITTING

2шт.
