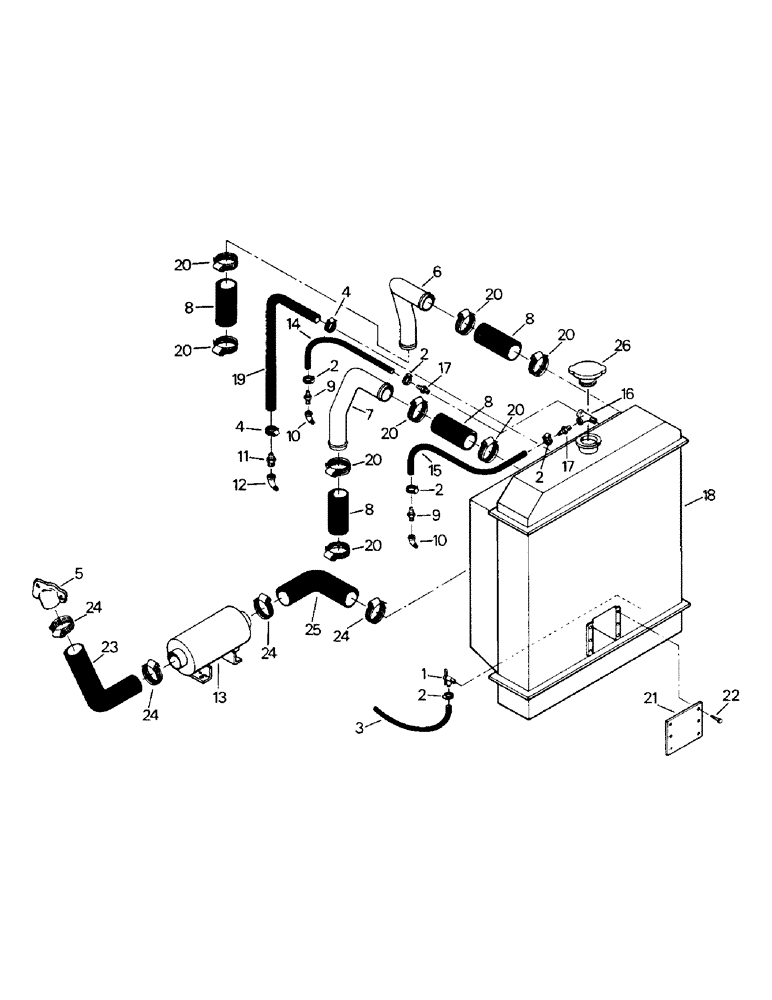

Запчасти Case IH PT225 (04-34) - PTA 296 & PTA 297 RADIATOR & HOSES (04) - Drive Train

1

31-159

COCK, DRAIN

DRAIN COCK

1шт.

2

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

5шт.

3

1-3811

HOSE

1шт.

4

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

5

5-387

WATER INLET

1шт.

1-2907

GASKET, water inlet (not shown)

1шт.

6

1-3881

TUBE 13.69, 6.5" Length

1шт.

7

1-3838

TUBE 13.69, 11.19" Length

1шт.

8

31-1007

HOSE

4шт.

9

31-615

ROD, CONNECTING

BARBED FITTING

2шт.

10

31-207

ELBOW

STREET ELBOW

2шт.

11

31-318

HOSE

BARBED FITTING

1шт.

12

31-220

ADAPTER

STREET ELBOW

1шт.

13

1-8250

COOLER

OIL COOLER

1шт.

14

31-1184

HOSE,6.4 mm ID x 914.40 mm

1шт.

15

31-1183

HOSE,6.4 mm ID x 1498.60 mm

1шт.

16

444148

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1шт.

17

31-1186

FITTING

BARBED FITTING

2шт.

18

90-2158T91

RADIATOR ASSEMBLY (with PTO option)

1шт.

90-2157T91

RADIATOR ASSEMBLY (without PTO option)

1шт.

19

31-1508

HOSE,1.00" ID x 51.75"

1шт.

20

32-23

CLAMP,#44, 2.31/3.25 Type F Worm

8шт.

21

1-4633

COVER, radiator

1шт.

22

276-1448

SELF-TAP SCREW,Hex Hd, #8-32 x 1/2"

SCREW, tapping, 5/32 x 1/2 UNC

6шт.

23

31-1404

RADIATOR HOSE,2.75" ID x 10.75", SAE 20R4 CLASS R

2.75" ID x 10.75", SAE 20R4 CLASS R

1шт.

24

32-60

CLAMP,#48, 2.56/3.50 Type F Worm

4шт.

25

32-339

HOSE,2.75" ID x 6.50"

RADIATOR HOSE, , 2.75" ID x 6.50"

1шт.

26

10-21

CAP

radiator

1шт.
