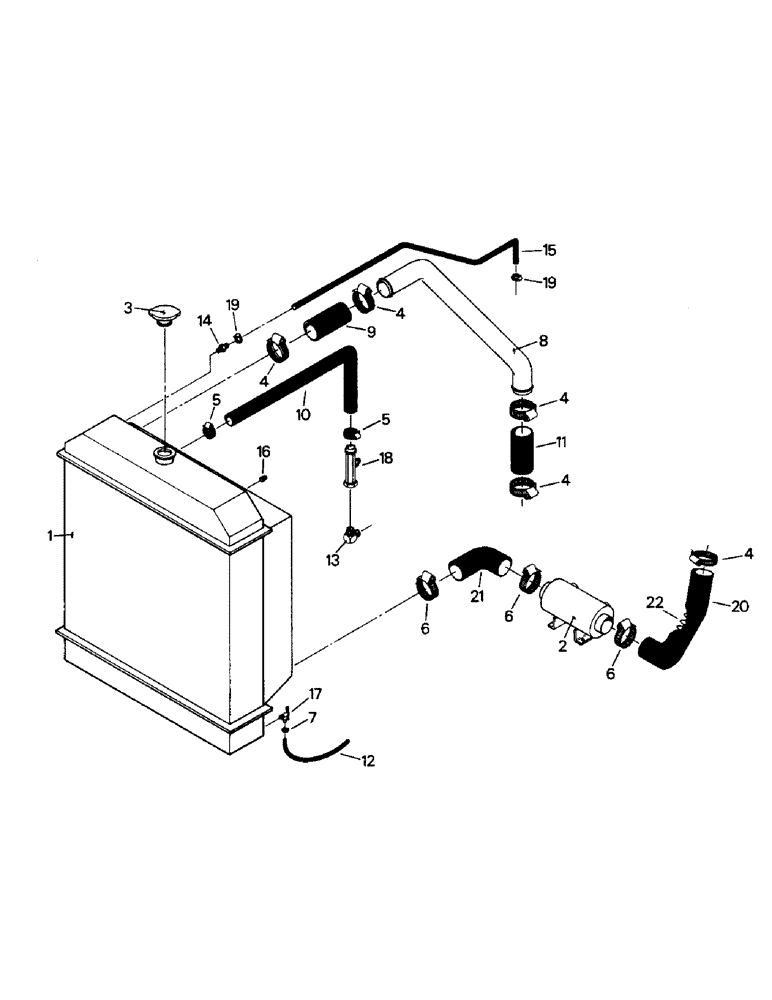

Запчасти Case IH PT225 (04-32) - PTA 270 RADIATOR & HOSES (04) - Drive Train

1

90-2161T91

RADIATOR ASSEMBLY

1шт.

2

1-8250

COOLER

OIL COOLER

1шт.

3

10-21

CAP

S, radiator

1шт.

4

32-23

CLAMP,#44, 2.31/3.25 Type F Worm

5шт.

5

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

6

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

CLAMP

3шт.

7

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP (early models only)

1шт.

8

1-3791

TUBE

1шт.

9

31-1657

HOSE

1шт.

10

31-1503

HOSE,1.00" ID x 28.00"

1шт.

11

1-3790

HOSE,2.50" ID x 5.00"

2.50" ID x 5.00"

1шт.

12

1-3811

HOSE

(early models only)

1шт.

13

31-1575

ADAPTER

ELBOW

1шт.

14

31-137

FITTING

BARBED FITTING

1шт.

15

31-1691

FUEL HOSE

HOSE

1шт.

16

31-37

PLUG

PIPE PLUG

1шт.

17

31-159

COCK, DRAIN

DRAIN COCK

1шт.

18

25-377

TUBE, shunt line 1.09" OD, 7.5" Length

1шт.

19

32-29

HOSE CLAMP

CLAMP

2шт.

20

31-1658

HOSE

1шт.

21

31-1843

RADIATOR HOSE,3.00" ID x 10.75", SAE 20R4 CLASS R

3.00" ID x 10.75", SAE 20R4 CLASS R

1шт.

22

31-1718

SPRING

hose

1шт.
