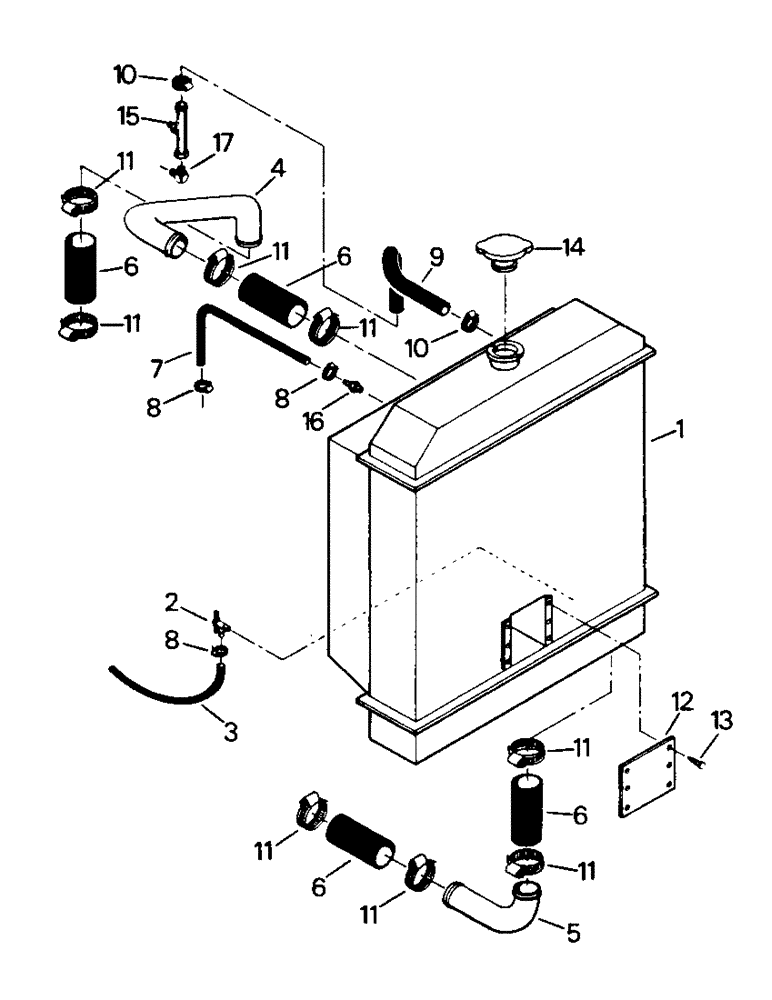

Запчасти Case IH PT225 (04-30) - PT 225, PT 250 & PT 270 RADIATOR & HOSES (04) - Drive Train

1

1-6961T91

RADIATOR

ASSEMBLY (26" fan) (with PTO option)

1шт.

90-1252T91

RADIATOR ASSEMBLY (26" fan) (without PTO option)

1шт.

90-2347T91

RADIATOR

ASSEMBLY (30" fan) (with PTO option)

1шт.

90-2346T91

RADIATOR ASSEMBLY (30" fan) (without PTO option)

1шт.

2

31-159

COCK, DRAIN

DRAIN COCK

1шт.

3

1-3811

HOSE

1шт.

4

1-3791

TUBE

1шт.

5

1-3792

TUBE 2.5" Diameter, 5.88" Length

1шт.

6

1-3790

HOSE,2.50" ID x 5.00"

2.50" ID x 5.00"

4шт.

7

31-1079

HOSE

1шт.

8

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

3шт.

9

31-1503

HOSE,1.00" ID x 28.00"

1шт.

10

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

11

32-23

CLAMP,#44, 2.31/3.25 Type F Worm

8шт.

12

1-4633

COVER, radiator

1шт.

13

276-1448

SELF-TAP SCREW,Hex Hd, #8-32 x 1/2"

SCREW, tapping, 5/32 x 1/2 UNC

6шт.

14

10-21

CAP

radiator

1шт.

15

25-377

TUBE, shunt line 1.09" OD, 7.5" Length

1шт.

16

31-137

FITTING

BARBED FITTING

1шт.

17

31-669

ELBOW 90º, 1 4/16"-12, 37º x 3/4"-12 NPTF, LG

1шт.

31-1575

ADAPTER

ELBOW (used only with engine coolant exchange system)

1шт.
