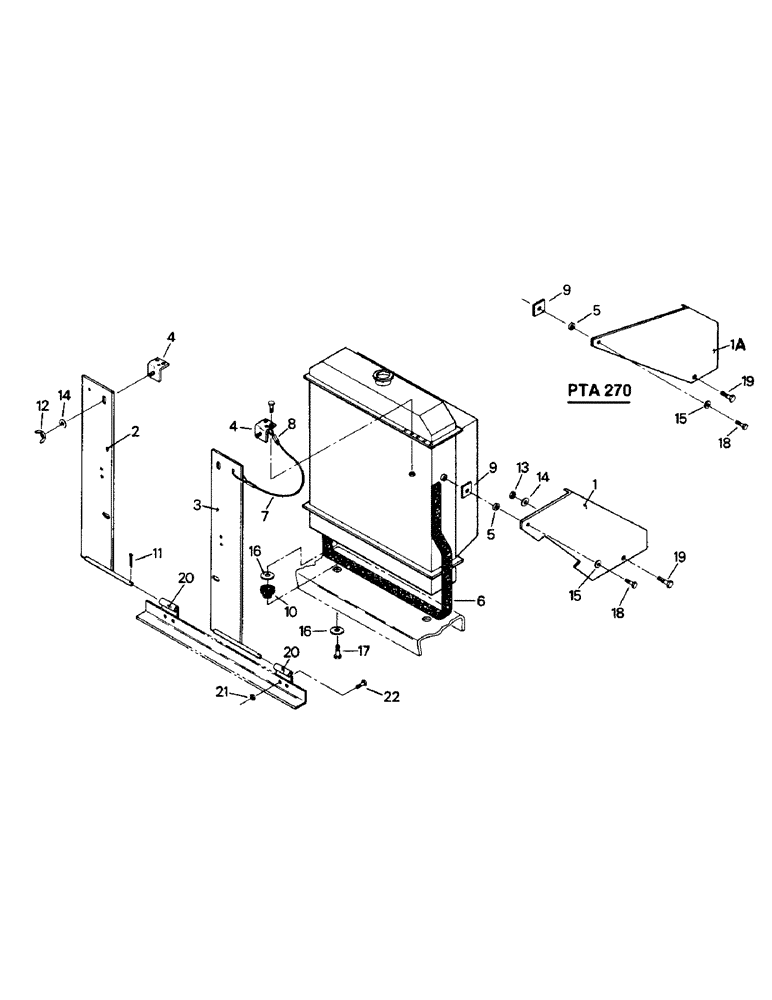

Запчасти Case IH PT225 (04-29) - PTA 251, PTA 270, PTA 280, PTA 310, & PTA 325 RADIATOR MOUNTING (04) - Drive Train

1

90-1071T2

SUPPORT

radiator, left, other PTA models, BSN 2518, Serial Range: -2518

1шт.

70-2224T1

SUPPORT, radiator, left, other PTA models, ASN 2518, Start Serial: 2518

1шт.

90-1070T2

SUPPORT

radiator, right, other PTA models, BSN 2518, Serial Range: -2518

1шт.

70-2226T1

SUPPORT, radiator, right, other PTA models, ASN 2518, Start Serial: 2518

1шт.

1a

90-1549T1

SUPPORT, radiator, left, PTA 270 only, see inset

1шт.

90-1548T1

SUPPORT, radiator, right, PTA 270 only, see inset

1шт.

2

2-2879T1

MOUNT, cooler, right

1шт.

3

2-2880T1

MOUNT, cooler, left

1шт.

4

90-1072T1

BRACKET

2шт.

5

1-443

BUSHING

SPACER, BSN 4518, Serial Range: -2518

2шт.

5a

2-4554T1

SPACER, not used on PTA 270, ASN 4518, Start Serial: 2518

2шт.

6

2-3164T1

FOAM STRIP

1шт.

7

1-4660

LANYARD CABLE

2шт.

8

64-144

FERRULE

4шт.

9

51-268

INSULATOR

PAD

2шт.

10

18-511

MOUNTING PARTS

MOUNT, center

4шт.

11

19-658

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

12

19-340

NUT

WING NUT

2шт.

13

19-81

NUT,1/2"-13, G5

2шт.

14

19-109

WASHER,1/2"

qty 2 on PTA 270

4шт.

15

19-107

WASHER

2шт.

16

19-806

WASHER

8шт.

17

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

CAPSCREW

4шт.

18

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW 3/8 UNC x 1-1/4, BSN 4518, Serial Range: -2518

2шт.

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4, ASN 4518, Start Serial: 2518

1шт.

19

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

CAPSCREW, 1/2 UNC x 1-3/4, BSN 4518, Serial Range: -2518

2шт.

19-46

BOLT,1/2" - 13 x 2", Gr 5

CAPSCREW, 1/2 UNC x 2, ASN 4518, Start Serial: 2518

1шт.

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2 UNC x 1-1/4 (PTA 270 only)

1шт.

20

2-2901T1

HINGE

2шт.

21

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

4шт.

22

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW

4шт.
