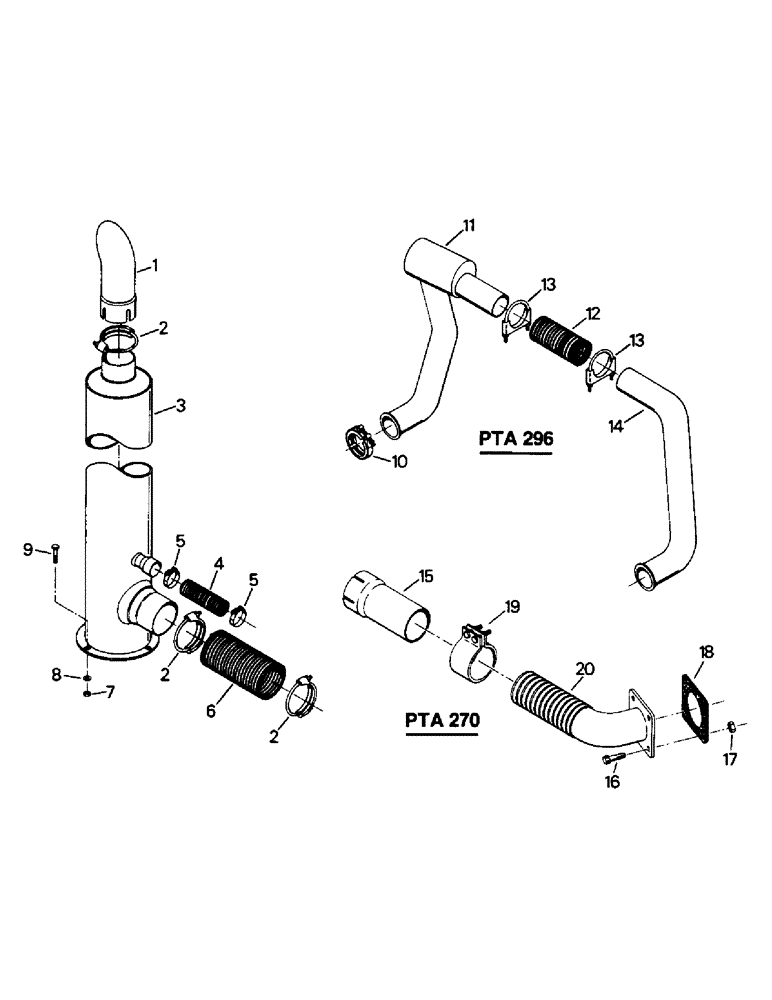

Запчасти Case IH PT225 (04-25) - PTA 270 & PTA 296 EXHAUST SYSTEM (04) - Drive Train

1

45-254

MUFFLER

EXHAUST STACK

1шт.

2

31-1537

MOUNTING CLIP

CLAMP (qty. 2 on PTA 270)

3шт.

3

90-1403T1

MUFFLER

(PTA 270)

1шт.

1-7650

MUFFLER

(PTA 296)

1шт.

4

90-1539T1

TUBE,1.5" ID x 1.75" OD x 30" L

FLEX TUBE (PTA 270)

1шт.

1-7623

TUBE,1.5" ID, 1.75" OD

FLEX TUBE (PTA 296)

1шт.

5

32-1004

CLAMP,1.56"-1.81", T-Bolt

2шт.

6

45-177

TUBE

FLEX TUBE (not used on PTA 270)

1шт.

TUBE MEASURES 5"I.D.,5 1/4 O.D. x 10"

1шт.

7

231-4117

LOCK NUT,7/16"-14, GB

7/16 UNC

3шт.

8

19-108

WASHER,7/16"

7/16

3шт.

9

19-32

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

CAPSCREW, 7/16 x 1 UNC

3шт.

10

31-1038

CLAMP

2шт.

11

1-5959

PIPE, EXHAUST SYSTEM

EXHAUST TUBE

1шт.

12

1-4380

TUBE,3" ID, 8.75" Length

FLEX TUBE

1шт.

TUBE MEASURES 3' I.D. x 8 3/4"

1шт.

13

7-22

CLAMP

2шт.

14

1-4459

TUBE,3" OD, 16.18" Length

EXHAUST TUBE

1шт.

15

90-1399T1

EXHAUST SYSTEM PIPE,5" OD x 18" L

EXHAUST TUBE

1шт.

16

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 x 1-1/2 UNC

4шт.

17

19-83

NUT,5/8"-11, G5

5/8 UNC

4шт.

18

19-1301

GASKET

1шт.

Should be 18-1301

1шт.

19

31-1061

MOUNTING CLIP

CLAMP ASSEMBLY

1шт.

20

90-1402T1

EXHAUST SYSTEM PIPE

FLEX TUBE

1шт.
