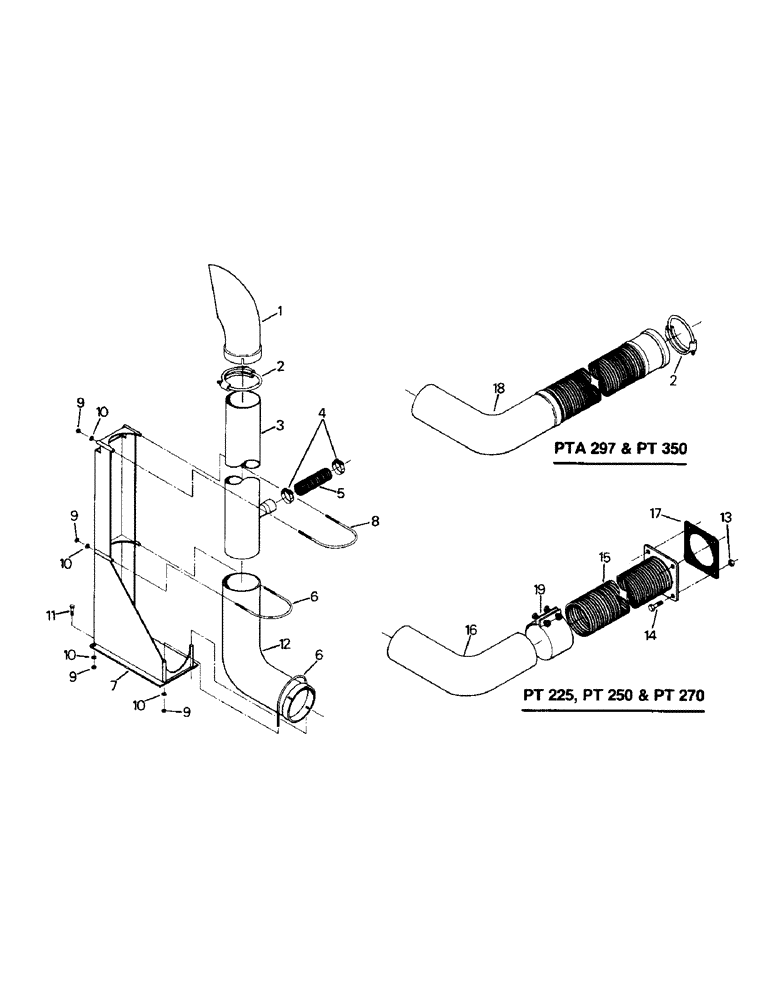

Запчасти Case IH PT225 (04-23) - PT 225, PT 250, PT 270, PTA 297 & PT 350 EXHAUST SYSTEM (04) - Drive Train

1

45-254

MUFFLER

EXHAUST STACK

1шт.

2

31-1537

MOUNTING CLIP

CLAMP

2шт.

3

45-190

KNOCKER

EJECTOR (PT 225, PT 250 & PT 270)

1шт.

45-196

PIPE, EXHAUST SYSTEM

EJECTOR (PTA 297 & PT 350)

1шт.

4

32-1004

CLAMP,1.56"-1.81", T-Bolt

(PT 225, PT 250 & PT 270)

2шт.

32-137

CLAMP,#38, 2.06"-2.37", T-Bolt

(PTA 297 & PT 350)

1шт.

5

1-7623

TUBE,1.5" ID, 1.75" OD

FLEX TUBE (PT 225, PT 250 & PT 270)

1шт.

31-1080T1

TUBE,2.06" ID, 2.25" OD, 16.25" Length

FLEX TUBE (PTA 297 & PT 350)

1шт.

6

32-322

U-BOLT,3/8" - 16 x 6.62"

2шт.

7

45-195

BRACKET

ejector

1шт.

8

1-2948

BOLT

U-BOLT

1шт.

9

232-4136

LOCK NUT,3/8"-16, GC

NUT, 3/8 UNC

8шт.

10

19-107

WASHER

3/8

8шт.

11

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

2шт.

12

45-191

FITTING

ELBOW

1шт.

13

19-83

NUT,5/8"-11, G5

5/8 UNC

4шт.

14

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 x 1-1/2 UNC

4шт.

15

45-227

TUBE

FLEX TUBE

1шт.

16

7-1017

ELBOW

1шт.

17

18-1301

GASKET

1шт.

1/8

1-4129

TUBE

FLEX TUBE

1шт.

19

31-1061

MOUNTING CLIP

CLAMP ASSEMBLY

1шт.
