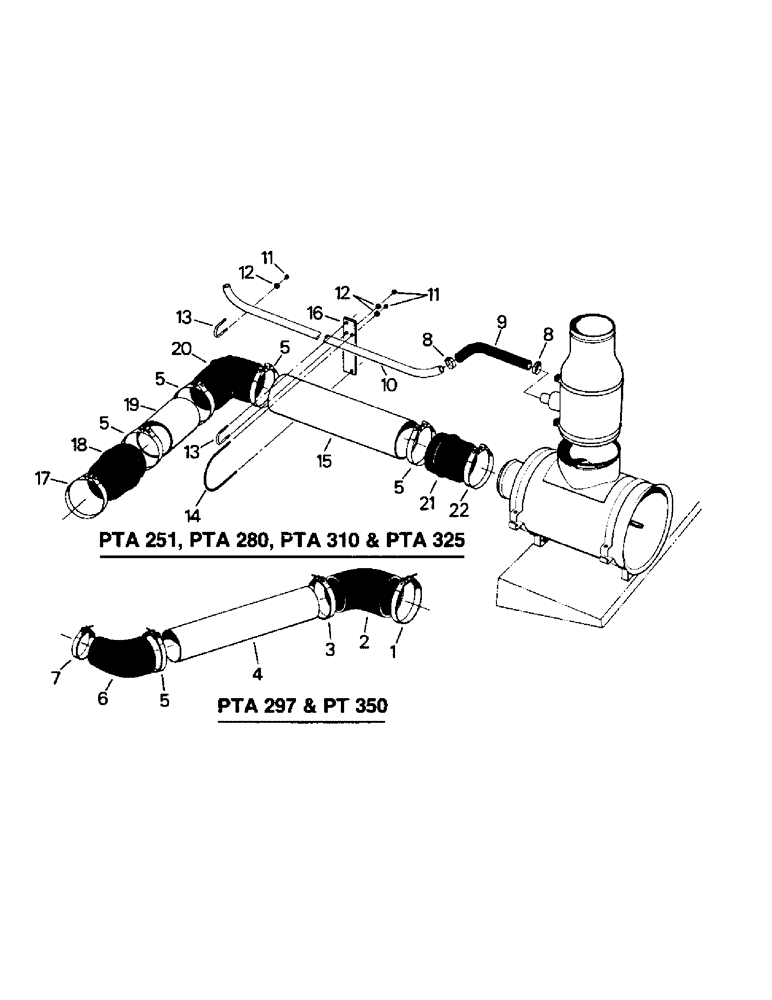

Запчасти Case IH PT225 (04-22) - PTA 251, PTA 280, PTA 297, PTA 310, PTA 325 & PT 350 AIR INTAKE (04) - Drive Train

1

32-287

CLAMP,#212, 7.50"-7.71", T-Bolt

1шт.

2

9-131

ELBOW

1шт.

3

32-1020

COTTER PIN,5/32" x 1 1/4"

CLAMP

1шт.

4

1-4112

TUBE 6" OD, 16.5" Length

1шт.

5

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

(qty. 1 on PTA 297 & PT 350)

4шт.

6

9-130

ELBOW

1шт.

7

32-133

CLAMP,#156, 5.75"-6.06", T-Bolt

1шт.

8

31-1283

MOUNTING CLIP

CLAMP

2шт.

9

7-1019

HOSE

1шт.

10

1-4081

TUBE,2" OD, 35.41" Length

aspirator

1шт.

11

19-77

NUT,5/16"-18, G5

5/16 (qty. 4 on PTA 297 & PT 350)

8шт.

12

19-700

WASHER,5/16"

5/16 (qty. 4 on PTA 297 & PT 350)

8шт.

13

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

(qty. 2 on PTA 297 & PT 350) 5/16"-18 x 2 5/16" x 3"

3шт.

14

44-28

U-BOLT

1шт.

15

2-2962T1

TUBE 6" OD

1шт.

16

90-1069T1

BRACKET, intake

1шт.

17

32-128

CLAMP,#140, 5.25"-5.56", T-Bolt

1шт.

18

9-61

HOSE,5.00" ID, 6.00" ID ID x, 6.00"

Reducer (PTA 280 (Cat) & PTA 325) 5.00" ID, 6.00" ID ID x, 6.00"

1шт.

9-76

HOSE,6.00" ID x 6.00"

Reduced, PTA 251, PTA 280 Cummins & PTA 310 6.00" ID x 6.00"

1шт.

19

45-246

TUBE

(PTA 280 (Cat) & PTA 325)

1шт.

2-3246T1

TUBE (PTA 251, PTA 280 (Cummins) & PTA 310)

1шт.

20

9-22

ELBOW

1шт.

21

9-74

REDUCER

hose

1шт.

22

32-210

CLAMP,#204, 7.25"-7.56", T-Bolt

1шт.
