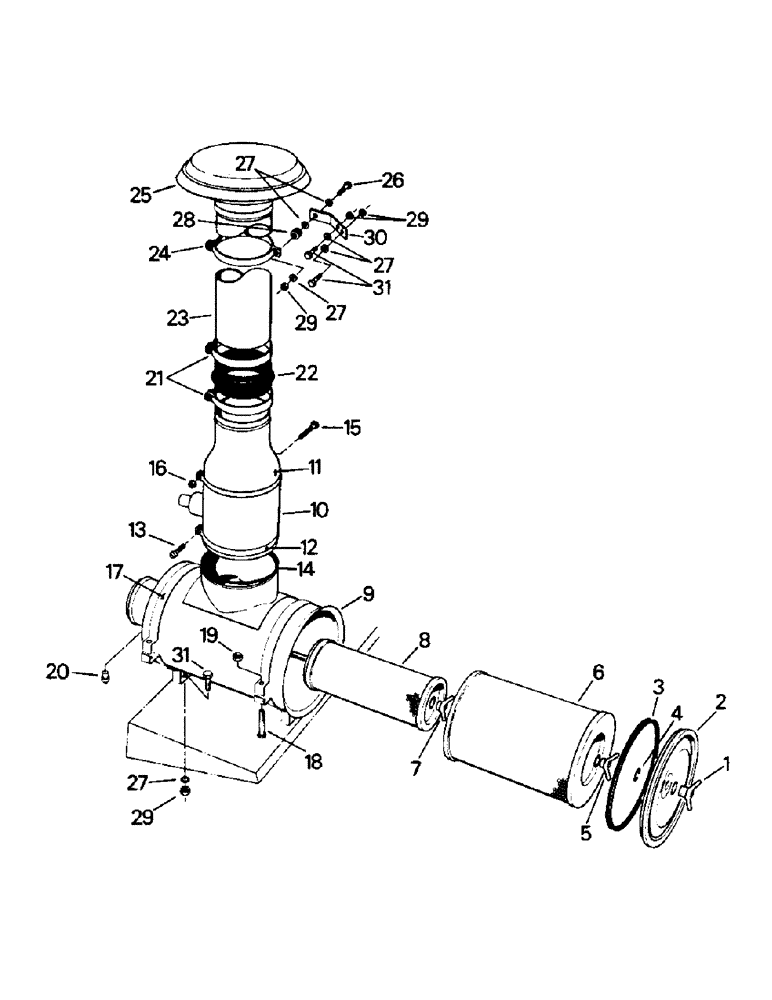

Запчасти Case IH PT225 (04-21) - PTA 251, PTA 280, PTA 297, PTA 310, PTA 325 & PT 350, AIR CLEANER & MOUNTING (04) - Drive Train

45-204

AIR CLEANER

ASSEMBLY, consists of 1-16

1шт.

1

45-219

NUT

ASSEMBLY

1шт.

7-1008

COVER

ASSEMBLY, consists of 2-3

1шт.

2

NSS

NOT SOLD SEPARAT

COVER

1шт.

3

7-1012

CATALOG

GASKET

1шт.

4

45-216

CLIP,ELECTRICAL

CLIP

1шт.

5

45-218

NUT

ASSEMBLY

1шт.

6

45-252

FILTER

ELEMENT, primary

1шт.

7

7-1006

NUT

ASSEMBLY

1шт.

8

45-253

ELEMENT

safety

1шт.

9

7-1005

BODY

ASSEMBLY

1шт.

10

7-1009

PRECLEANER

PRE-CLEANER ASSEMBLY (includes ref. 11, 15 & 16)

1шт.

11

1-2623

ADAPTER

ASSEMBLY

1шт.

12

1-2625

CLAMP

ASSEMBLY (includes ref. 13)

1шт.

13

19-1123

SCREW,Sl Pan Hd, 3/8" - 16 x 2 3/4"

MACHINE SCREW, 3/8 x 2-1/2 UNC

1шт.

14

1-2624

O-RING

1шт.

15

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8 x 2 UNC

1шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

1шт.

17

9-25

BAND

MOUNTING BAND (includes ref 18 &19)

2шт.

18

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

CAPSCREW, 5/16 x 1-3/4 UNC

2шт.

19

19-508

LOCK NUT

LOCK NUT, 5/16 UNC

2шт.

20

29-111

DIPSTICK

INDICATOR

1шт.

21

31-2001

CLAMP,#208, 7.37"-7.68", T-Bolt

2шт.

22

9-73

HOSE

HUMP HOSE (replaces p/n 01-2638 - code E)

1шт.

23

45-200

TUBE

INLET STACK

1шт.

24

1-2636

CLAMP

ASSEMBLY

1шт.

25

9-120

CAP ASSY.

HOOD, air inlet

1шт.

26

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 x 1-3/4 UNC

1шт.

27

19-107

WASHER

3/8

9шт.

28

1-3528

MOUNTING PARTS

MOUNT, rubber

1шт.

29

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC

7шт.

30

1-4113

BRACKET

1шт.

31

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

6шт.
