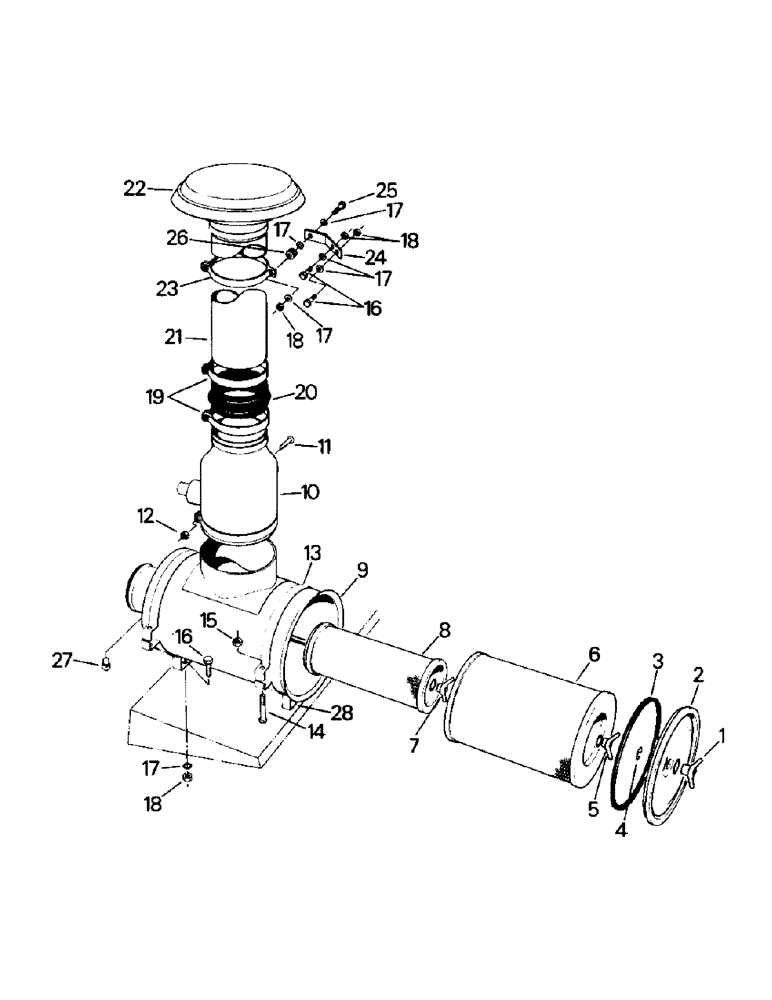

Запчасти Case IH PT225 (04-19) - PT 225, PT 250, PT 270, PTA 270 & PTA 296 AIR CLEANER & MOUNTING (04) - Drive Train

45-211

AIR CLEANER

ASSEMBLY, consist of 1-12

1шт.

1

45-219

NUT

ASSEMBLY

1шт.

2

45-215

COVER

1шт.

3

45-223

GASKET

1шт.

4

45-216

CLIP,ELECTRICAL

CLIP

1шт.

5

45-218

NUT

ASSEMBLY

1шт.

6

7-1011

CATALOG

ELEMENT ASSEMBLY

1шт.

7

45-221

NUT

ASSEMBLY

1шт.

8

7-1010

ELEMENT

safety

1шт.

9

45-236

AIR CLEANER

BODY ASSEMBLY

1шт.

10

7-1004

PRECLEANER

PRE-CLEANER ASSEMBLY (includes ref. 11 & 12)

1шт.

11

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8 x 2 UNC

1шт.

12

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

1шт.

13

9-55

BAFFLE

MOUNTING BAND (includes ref. 14 & 15)

2шт.

14

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

CAPSCREW, 5/16 x 1-3/4 UNC

2шт.

15

19-508

LOCK NUT

LOCK NUT, 5/16 UNC

2шт.

16

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

6шт.

17

19-107

WASHER

3/8

9шт.

18

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC

7шт.

19

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

2шт.

20

9-17

ADAPTER

HUMP HOSE (replaces p/n 01-2639 - code E)

1шт.

21

45-180

TUBE

1шт.

22

9-128

CAP

HOOD, air inlet

1шт.

23

9-128

CAP

CLAMP ASSEMBLY

1шт.

24

1-4011

BRACKET

1шт.

25

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 x 1-3/4 UNC

1шт.

26

1-3528

MOUNTING PARTS

MOUNT, rubber

1шт.

27

29-111

DIPSTICK

INDICATOR (other models)

1шт.

1-9485

INDICATOR (PTA 296 only)

1шт.

28

1-7781

SHIM (PT 225 only)

4шт.
