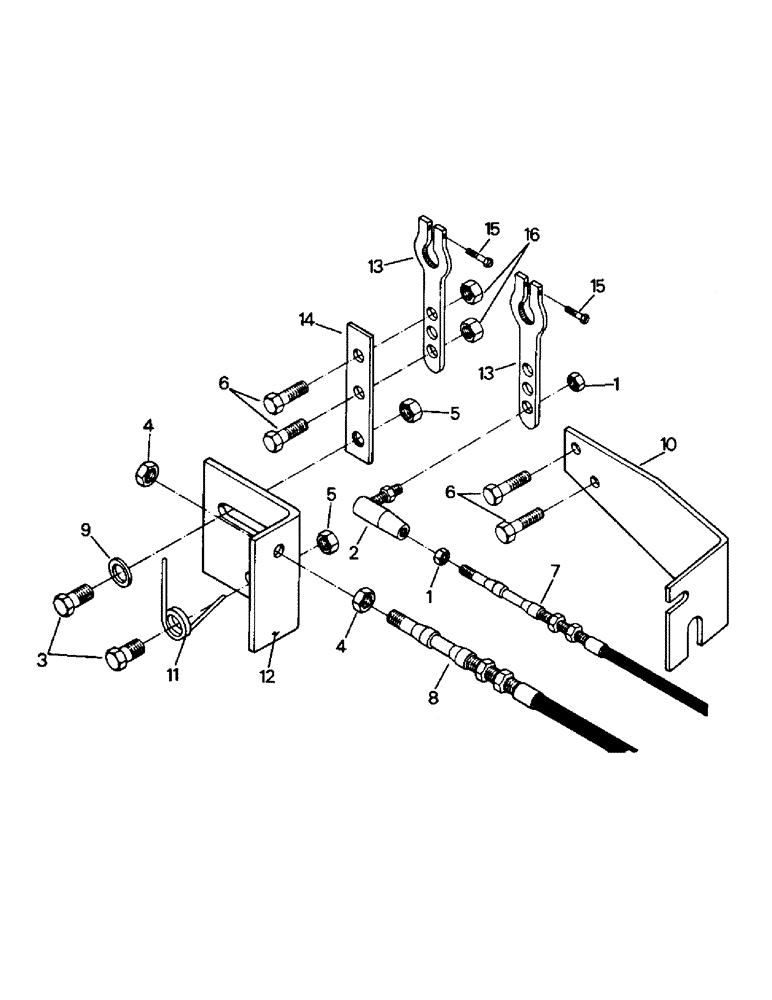

Запчасти Case IH PT225 (04-15) - THROTTLE CONTROLS, CAT 3406 ENGINES, EARLY STYLE (04) - Drive Train

1

19-308

NUT,#10 - 32

JAM NUT

2шт.

2

6-1431

BALL JOINT

1шт.

3

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW

2шт.

4

19-936

JAM NUT

JAM NUT

2шт.

5

19-2251

JAM NUT

2шт.

6

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

4шт.

7

29-58

CABLE

throttle

1шт.

8

1-8253

ASSEMBLY

MODULATOR (see fig. 4-18)

1шт.

9

19-700

WASHER,5/16"

1шт.

10

90-1160T1

BRACKET, throttle cable

1шт.

11

2-1719

SPRING

torsion

1шт.

12

2-1694

BRACKET

slip

1шт.

13

4-580

LEVER

throttle

2шт.

14

2-3121T1

LEVER

THROTTLE EXTENSION

1шт.

15

19-5847

SCREW,Hex Skt, #8 - 36 x 3/4"

SOCKET HEAD MACHINE SCREW

2шт.

16

19-1081

LOCK NUT

LOCK NUT

2шт.
