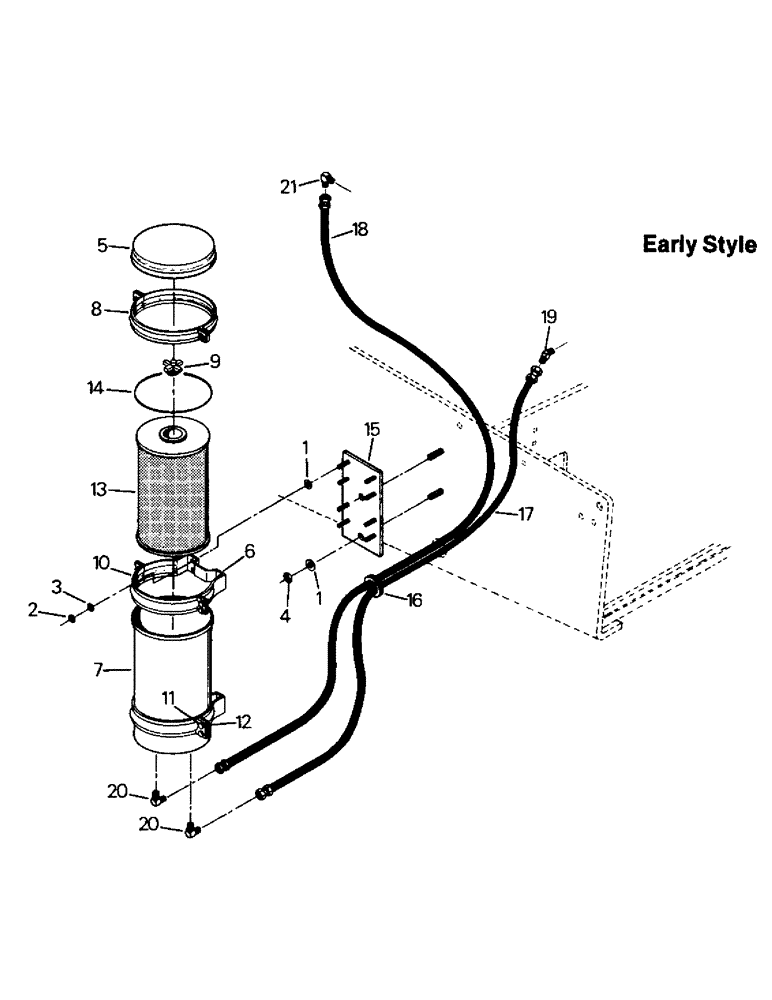

Запчасти Case IH PT225 (04-09) - LUBE FILTER & MOUNTING, CUMMINS 903 ENGINE (04) - Drive Train

1

19-109

WASHER,1/2"

1/2

10шт.

2

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

8шт.

3

19-107

WASHER

3/8

8шт.

4

19-81

NUT,1/2"-13, G5

1/2 UNC

2шт.

1-5568

FILTER

LUBE FILTER ASSEMBLY, consists of 5-14

1шт.

Supereseded - Old p/n must be used on models prior to s/n break. New p/n will fit models after the s/n break only.

1шт.

5

1-5573

COVER

1шт.

6

1-5572

BRACKET, mounting

2шт.

7

1-5570

FILTER

SHELL ASSEMBLY

1шт.

8

1-5574

STRAP

2шт.

9

2-1557

SUPPORT

UPPER SUPPORT ASSEMBLY

1шт.

10

90-2231T1

BRACKET, mounting

2шт.

11

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

CAPSCREW, 1/4 x 1/2 UNC

8шт.

12

19-76

NUT,1/4"-20, G5

1/4 UNC

8шт.

13

28-28

FILTER, ENGINE OIL

ELEMENT, filter

1шт.

14

6-98

SEAL

O-RING

1шт.

15

1-4998

BRACKET

filter mount

1шт.

16

31-1073

GROMMET

1шт.

17

31-1075

HOSE ASSY.

HOSE ASSEMBLY

1шт.

18

1-421

HOSE

ASSEMBLY

1шт.

19

31-1076

ELBOW,45 Degree, 9/16-18" 37 Degree x 3/8"-18, NPTF

1шт.

20

31-528

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

2шт.

21

31-269

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.
