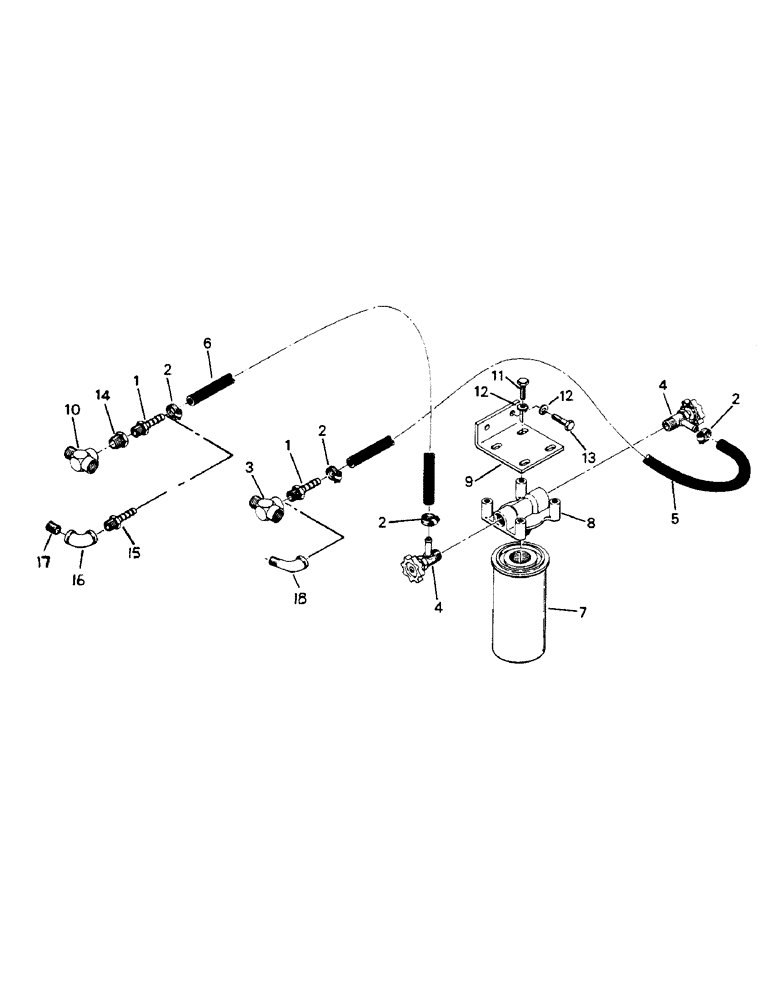

Запчасти Case IH PT225 (04-08A) - WATER FILTER & MOUNTING, CAT 3306, AFTER 10-1-82, ASN 2501 (04) - Drive Train

1

31-218

CONNECTING ROD

FITTING

2шт.

2

32-29

HOSE CLAMP

CLAMP

4шт.

3

31-529

TEE,3/8"-18 Female x 3/8"-18 Male Run

ADAPTER

1шт.

4

1-1610

VALVE

ASSY

2шт.

5

31-1208

HOSE,0.38" ID x 12.00"

1шт.

6

31-1691

FUEL HOSE

HOSE

1шт.

7

28-31

FILTER

ELEMENT

1шт.

The precharge element should be used only after flushing the system & adding new coolant.

1шт.

1-7834

FILTER

ELEMENT (precharged)

1шт.

8

1-1612

HEAD

BASE, water filter

1шт.

9

90-3550T1

BRACKET

filter

1шт.

10

31-1853

ADAPTER

1шт.

11

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

4шт.

12

19-117

LOCK WASHER,3/8"

3/8"

6шт.

13

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW

2шт.

14

31-178

BUSHING

ADAPTER

14шт.

15

31-137

FITTING

BARBED FITTING

1шт.

Refs. 1-14 are used when the tractor has had a coolant coupler exchange system installed. Ref. 15-18 are the alternate parts used if tractor not equipped with coolant couplers.

1шт.

16

31-41

ELBOW

1шт.

Refs. 1-14 are used when the tractor has had a coolant coupler exchange system installed. Ref. 15-18 are the alternate parts used if tractor not equipped with coolant couplers.

1шт.

17

31-160

NIPPLE, LUBE

NIPPLE

1шт.

Refs. 1-14 are used when the tractor has had a coolant coupler exchange system installed. Ref. 15-18 are the alternate parts used if tractor not equipped with coolant couplers.

1шт.

18

31-219

ELBOW

1шт.

Refs. 1-14 are used when the tractor has had a coolant coupler exchange system installed. Ref. 15-18 are the alternate parts used if tractor not equipped with coolant couplers.

1шт.
