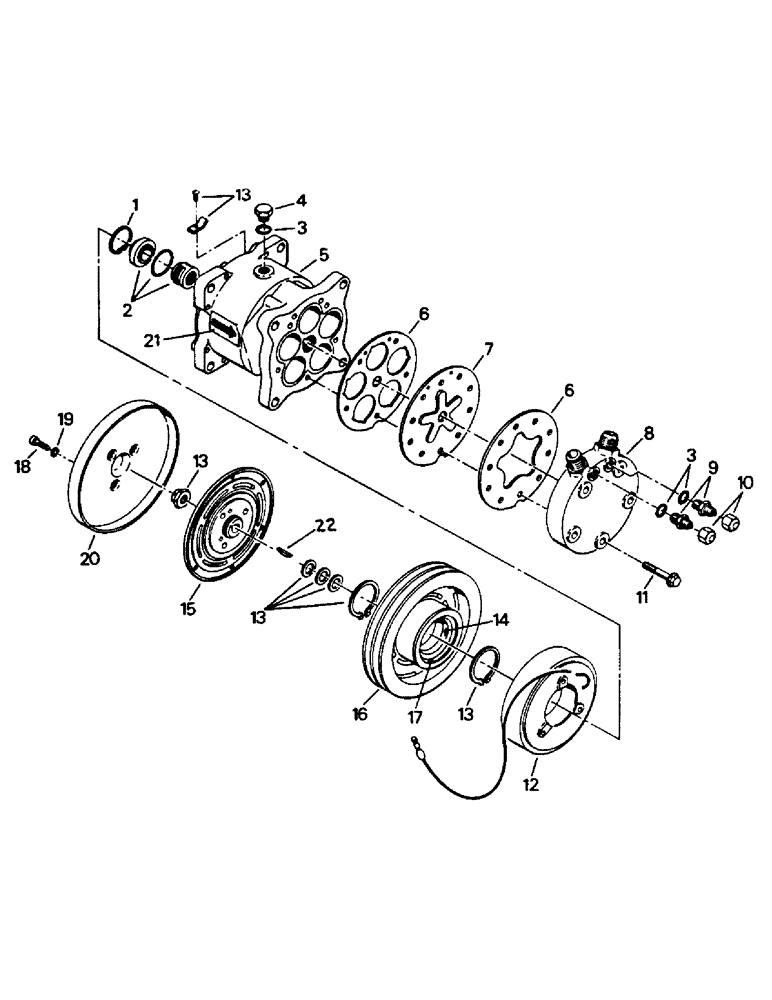

Запчасти Case IH PT225 (03-16) - A/C COMPRESSOR ASSEMBLY (03) - Climate Control

60-2921T91

COMPRESSOR

A/C COMPRESSOR ASSY, consists of 1-17

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

PT225 STEIGER BEARCAT SERIES III, PT270 STEIGER COUGAR SERIES III, Both (1/77-12/81), PTA251 (1/80-12/81), PTA270 (1/77-12/81), PTA280 (1/81-12/83), All STEIGER COUGAR SERIES III AUTOMATIC, PTA310, PTA325, Both (1/80-12/82), PTA297 (1/78-12/81), All STEIGER SERIES III PANTHER AUTOMATIC, Reman for New P/N 60-2921T91

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

60-3595T91

BODY

A/C COMPRESSOR BODY ASY, (also incl ref. 13), consists of 1-11

1шт.

1

1-2435

RING, SNAP

SNAP RING

1шт.

2

60-3091T1

SEAL KIT

SEAL KIT

1шт.

3

1-2437

O-RING

3шт.

4

A49667

PLUG

1шт.

THERE IS A SPIN ON FILTER WITH DRAIN

1шт.

5

NSS

NOT SOLD SEPARAT

COMPRESSOR BODY

1шт.

6

25-231

GASKET KIT

KIT

1шт.

7

60-3092T91

PLATE

VALVE PLATE ASSY (incl ref. 6)

1шт.

8

60-3093T1

HEAD (CYLINDER)

CYLINDER HEAD (incl ref. 6)

1шт.

9

1-2400

SERVICE PORT

2шт.

10

1-2441

CAP

SERVICE PORT CAP

2шт.

11

1-2438

SCREW,Hex Flg Hd

FLANGE CAPSCREW

5шт.

12

25-237

COIL

1шт.

13

60-3095T1

SET OF WASHERS

ACCESSORY KIT

1шт.

1-3759

CLUTCH HOUSING

PULLEY & FRONT PLATE ASSY, consists of 14-17

1шт.

14

35-1064

BEARING ASSY

KIT (incl ref. 17)

1шт.

15

NSS

NOT SOLD SEPARAT

CLUTCH

1шт.

16

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

17

1-3760

BEARING

DUST SEAL

1шт.

18

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

SOCKET HEAD CAPSCREW

3шт.

19

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER

3шт.

20

25-194

DUST SHIELD 1/4"-28, G5, Thk

1шт.

21

26-304

DECAL

1шт.

22

60-4839T1

BUCKET TOOTH KEY

KEY

1шт.

AVAILABLE ORDER NUMBER 90-3941T1

1шт.
