Запчасти Case IH PT225 (03-15) - A/C COMPRESSOR ASSEMBLY (03) - Climate Control

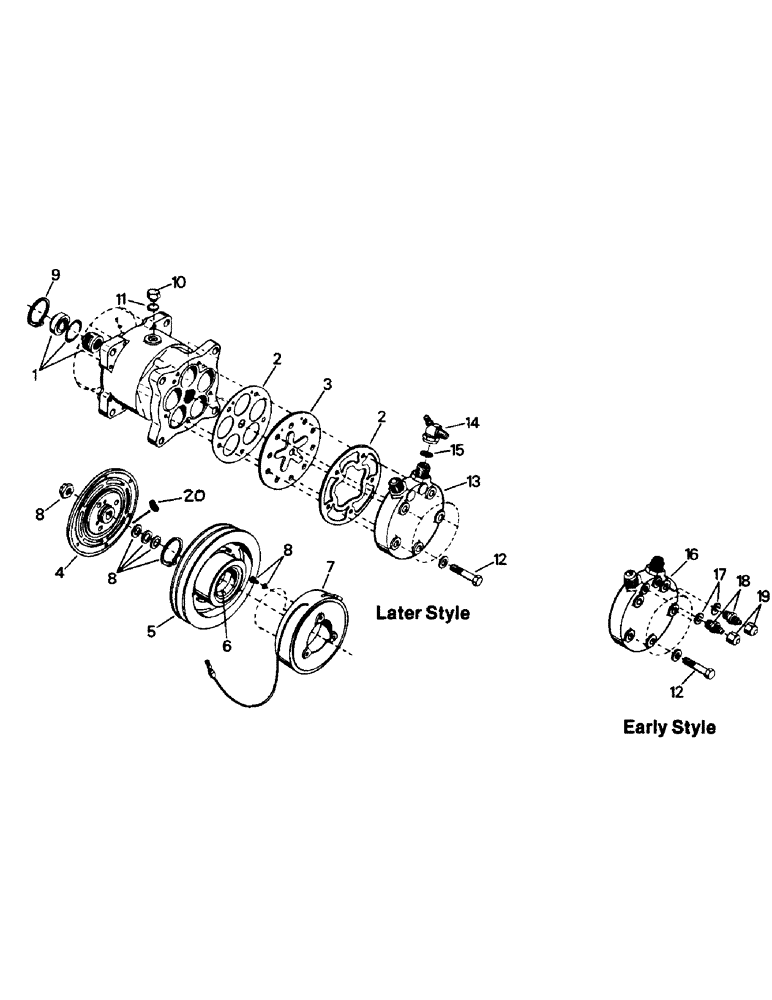

Схема запчастей Case IH PT225 - (03-15) - A/C COMPRESSOR ASSEMBLY (03) - Climate Control
12
7
20
1
5
10
8
19
11
18
2
9
12
16
13
17
14
8
6
3
2
8
4
15

Артикул

Название

Примечание

Количество

35-1224T91

COMPRESSOR

ASSEMBLY (B) (5-1/4" clutch) (replaces p/n 01-3769 - code B) , consists of 1-15

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

PT225 STEIGER BEARCAT SERIES III, PT270 STEIGER COUGAR SERIES III, Both (1/77-12/81), PTA251 (1/80-12/81), PTA270 (1/77-12/81), \nPTA280 (1/81-12/83), All STEIGER COUGAR SERIES III AUTOMATIC , PTA310, PTA325, Both STEIGER SERIES III PANTHER AUTOMATIC (1/80-12/82), STEIGER SERIES III BEARCAT, STEIGER SERIES III COUGAR, STEIGER SERIES III PANTHER, All (7/84-), Reman for New P/N 35-1224T91

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

35-1225T91

COMPRESSOR

ASSEMBLY (B) (6" clutch) (replaces p/n 01-3768 - code B)

1шт.

2-1780

COMPRESSOR

COMPRESSER ASSEMBLY (5-1/4" clutch), consists of 1-13

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

PT225 STEIGER BEARCAT SERIES III, PT270 STEIGER COUGAR SERIES III, Both (1/77-12/81), PTA251 (1/80-12/81), PTA270 (1/77-12/81), PTA280 (1/81-12/83), All STEIGER COUGAR SERIES III AUTOMATIC, PTA310, PTA325, Both (1/80-12/82), PTA297 (1/78-12/81), All STEIGER SERIES III PANTHER AUTOMATIC, STEIGER SERIES III BEARCAT, STEIGER SERIES III COUGAR, STEIGER SERIES III PANTHER, All (7/84-), Reman for New P/N 2-1780

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

2-1781

COMPRESSOR

ASSEMBLY (6" clutch)

1шт.

1

25-230

SEAL KIT

KIT

1шт.

2

25-231

GASKET KIT

KIT

1шт.

3

25-232

VALVE PLATE (includes ref. 2)

1шт.

1-3759

CLUTCH HOUSING

PULLEY, bearing & plate assembly (5-1/2" clutch), consists of 4-6

1шт.

1-3733

LARGE PLATE

PULLEY, bearing & plate assembly (6" clutch)

1шт.

1-3764

CLUTCH

ASSEMBLY (5-1/4"), consists of 4-8

1шт.

1-3761

CLUTCH

ASSEMBLY (6")

1шт.

4

NSS

NOT SOLD SEPARAT

CLUTCH, front plate (5-1/4")

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH, front plate (6")

1шт.

5

NSS

NOT SOLD SEPARAT

PULLEY (2 groove, 5-1/4")

1шт.

NSS

NOT SOLD SEPARAT

PULLEY (1 groove, 6")

1шт.

6

35-1064

BEARING ASSY

KIT (incl 01-3760)

1шт.

1-3760

BEARING

DUST SHIELD

1шт.

7

25-237

COIL (5-1/4")

1шт.

1-2434

COIL

(6")

1шт.

8

1-2433

KIT

ACCESSORY KIT

1шт.

9

1-2435

RING, SNAP

SNAP RING

1шт.

10

A49667

PLUG

1шт.

11

1-2437

O-RING

1шт.

12

1-2438

SCREW,Hex Flg Hd

CAPSCREW

5шт.

35-1226T91

CYLINDER HEAD

HEAD ASSY (late style) (replaces p/n 25-233), consists of 13-15

1шт.

13

2-1870

HEAD

flare type (later style)

1шт.

14

2-1778

ADAPTER

(discharge port) (incl ref 15)

1шт.

2-1779

ADAPTER

(suction port) (incl ref 15)

1шт.

15

31-1423

O-RING

2шт.

16

25-233

HEAD

flare type (early style)

1шт.

17

1-2439

GASKET

2шт.

18

1-2440

FITTING

SERVICE PORT

2шт.

19

1-2441

CAP

2шт.

20

60-4839T1

BUCKET TOOTH KEY

KEY

1шт.

21

26-304

DECAL

DUST SHIELD DECAL (not shown)

1шт.

Выбрано товаров: 39
