Запчасти Case IH PT225 (03-14) - A/C COMPRESSOR & MOUNTING, CUMMINS 903 ENGINE (03) - Climate Control

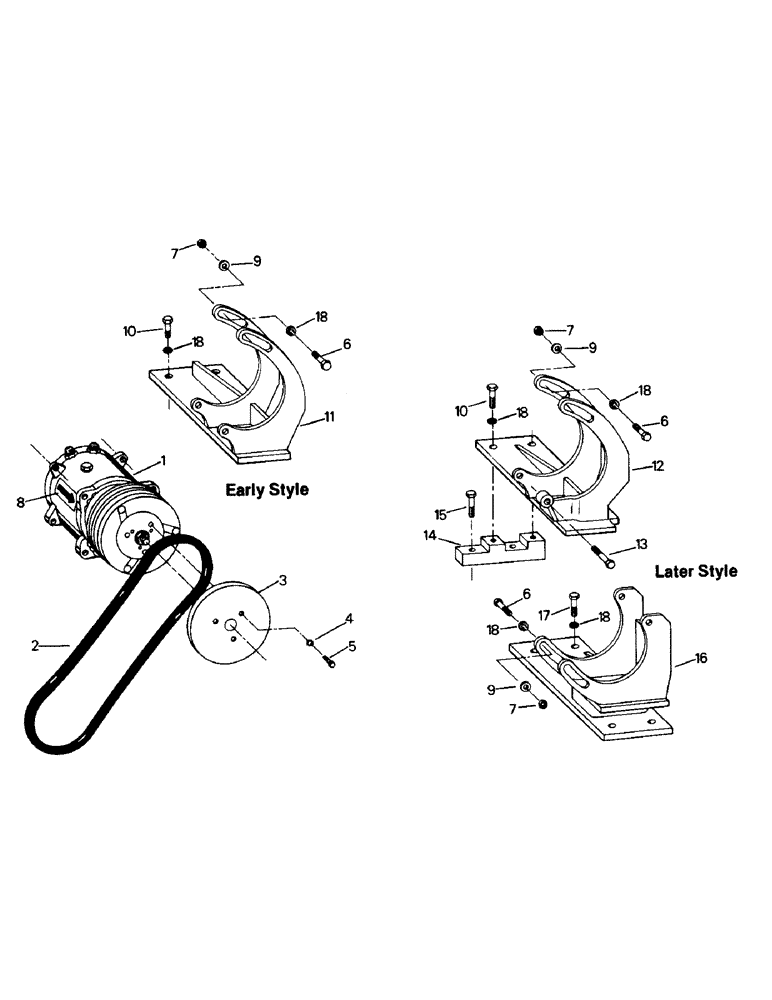

Схема запчастей Case IH PT225 - (03-14) - A/C COMPRESSOR & MOUNTING, CUMMINS 903 ENGINE (03) - Climate Control
18
7
6
8
12
17
18
9
18
11
14
16
6
9
18
13
9
4
18
18
5
7
2
10
6
15
7
1
10
3

Артикул

Название

Примечание

Количество

1

2-1781

COMPRESSOR

ASSEMBLY (6") (replaces p/n 01-3768 - code B)

1шт.

2

1-7736

BELT,0.672" W

V-BELT , Compressor 0.672" W

1шт.

3

25-372

SHIELD

DUST SHIELD

1шт.

4

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER, 1/4

3шт.

5

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

CAPSCREW, 1/4 x 1/2 UNC

3шт.

6

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

CAPSCREW, M10-1.5 x 34 mm

4шт.

7

19-455

NUT

M10-1.5

4шт.

8

26-304

DECAL

compressor

1шт.

9

19-108

WASHER,7/16"

7/16

2шт.

10

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

CAPSCREW, 3/8 x 1-1/2 UNC

4шт.

11

2-1721

ANCHOR

COMPRESSOR MOUNT (early style)

1шт.

12

NAP

COMPRESSOR MOUNT (later style)

1шт.

13

11500882

CAPSCREW, M10-1.5 x 45 mm

1шт.

14

90-1019T1

SPACER

2шт.

15

19-1109

BOLT,Hex, 3/8" - 16 x 2", Gr 8

CAPSCREW, 3/8 x 2 UNC

4шт.

16

2-1849T2

ANCHOR

COMPRESSOR MOUNT (later style)

1шт.

17

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

CAPSCREW, 3/8 x 1 UNC

4шт.

18

19-117

LOCK WASHER,3/8"

3/8"

6шт.

Выбрано товаров: 18
