Запчасти Case IH PT225 (03-13) - A/C COMPRESSOR & MOUNTING, CAT 3406 ENGINE (03) - Climate Control

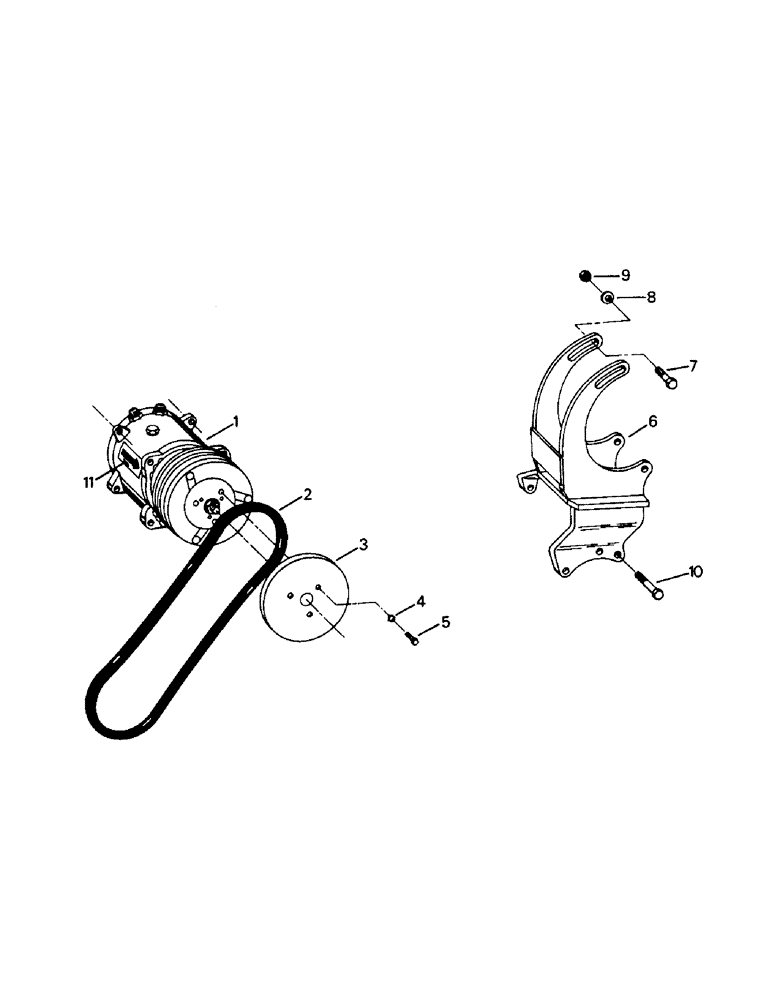

Схема запчастей Case IH PT225 - (03-13) - A/C COMPRESSOR & MOUNTING, CAT 3406 ENGINE (03) - Climate Control
10
3
4
5
7
2
8
11
1
9
6

Артикул

Название

Примечание

Количество

1

2-1781

COMPRESSOR

ASSEMBLY (6") (see fig. 3-14)

1шт.

2

2-2228

BELT, compressor

1шт.

Correct p/n is 1-2228

1шт.

3

25-372

SHIELD

DUST SHIELD

1шт.

4

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER, 1/4

3шт.

5

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

CAPSCREW, 1/4 x 1/2 UNC

3шт.

6

25-1021

COMPRESSER MOUNT

1шт.

7

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

CAPSCREW, M10-1.5 x 34 mm

4шт.

8

19-108

WASHER,7/16"

7/16

2шт.

9

19-455

NUT

M10-1.5

4шт.

10

19-652

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

CAPSCREW, 3/8 x 1 UNC

4шт.

11

26-304

DECAL

compressor

1шт.

Выбрано товаров: 12
