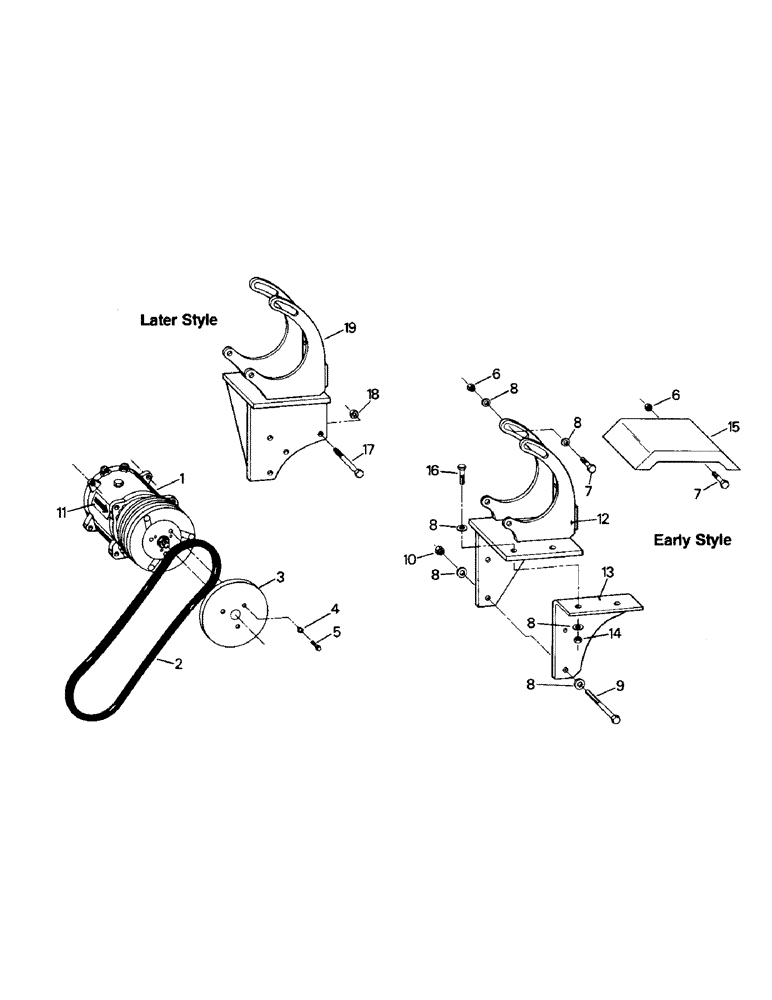

Запчасти Case IH PT225 (03-11) - A/C COMPRESSOR & MOUNTING, CAT 3306 ENGINE (03) - Climate Control

1

2-1780

COMPRESSOR

ASSEMBLY (5-1/4") (replaces p/n 01-3769 - code E) (see fig. 3-14)

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

PT225 STEIGER BEARCAT SERIES III, PT270 STEIGER COUGAR SERIES III,Both BOTH (1/77-12/81), PTA251 (1/80-12/81), PTA270 (1/77-12/81), PTA280 (1/81-12/83), All STEIGER COUGAR SERIES III AUTOMATIC, PTA310, PTA325, Both STEIGER SERIES III PANTHER AUTOMATIC (1/80-12/82), Reman for New P/N 2-1780

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

.

6-1428

V-BELT,0.53" W x 46.00" L

Compressor (26" fan) 0.53" W x 46.00" L

1шт.

90-2151T1

V-BELT,0.53" W x 46.50" L

Compressor (30" fan) (PT models) (Early style mount) 0.53" W x 46.50" L

1шт.

1-2820

V-BELT,0.53" W x 50.10" L

Compressor, PT Models, Later Style Mount)

1шт.

1-9344

BELT,0.53" W x 48.99" L

V-BELT , Compressor (PTA 270 only) (Early style mount) 0.53" W x 48.99" L

1шт.

3

25-194

DUST SHIELD 1/4"-28, G5, Thk

1шт.

4

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER, 1/4

3шт.

5

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

CAPSCREW, 1/4 x 1/2 UNC

3шт.

6

19-455

NUT

M10-1.5

4шт.

7

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

CAPSCREW, M10-1.5 x 34 mm

4шт.

8

19-107

WASHER

3/8 (qty. 14 on early style mount)

4шт.

9

19-671

BOLT,Hex, 3/8" - 16 x 3", Gr 8

CAPSCREW, 3/8 x 3 UNC

3шт.

10

19-823

NUT,3/8"-16, G5

3/8 UNC

3шт.

11

26-304

DECAL

compressor

1шт.

12

1-4017

ANCHOR

COMPRESSOR MOUNT (early style)

1шт.

1-7122

COMPRESSER MOUNT (early style)

1шт.

13

1-4019

STABILIZER

LEG, mounting (early style)

1шт.

1-7121

LEG, mounting (later style)

1шт.

14

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

2шт.

15

1-4027

GUARD

1шт.

16

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

2шт.

17

19-22

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

CAPSCREW, 3/8 x 2-1/2 UNC

4шт.

18

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC

4шт.

19

90-2421T1

MOUNTING PARTS

COMPRESSOR MOUNT (later style)

1шт.

19-135

CABLE TIE

TY RAP (not shown)

3шт.
