Запчасти Case IH PT225 (03-10) - A/C & HEATER PLUMBING, CUMMINS 903 ENGINE (03) - Climate Control

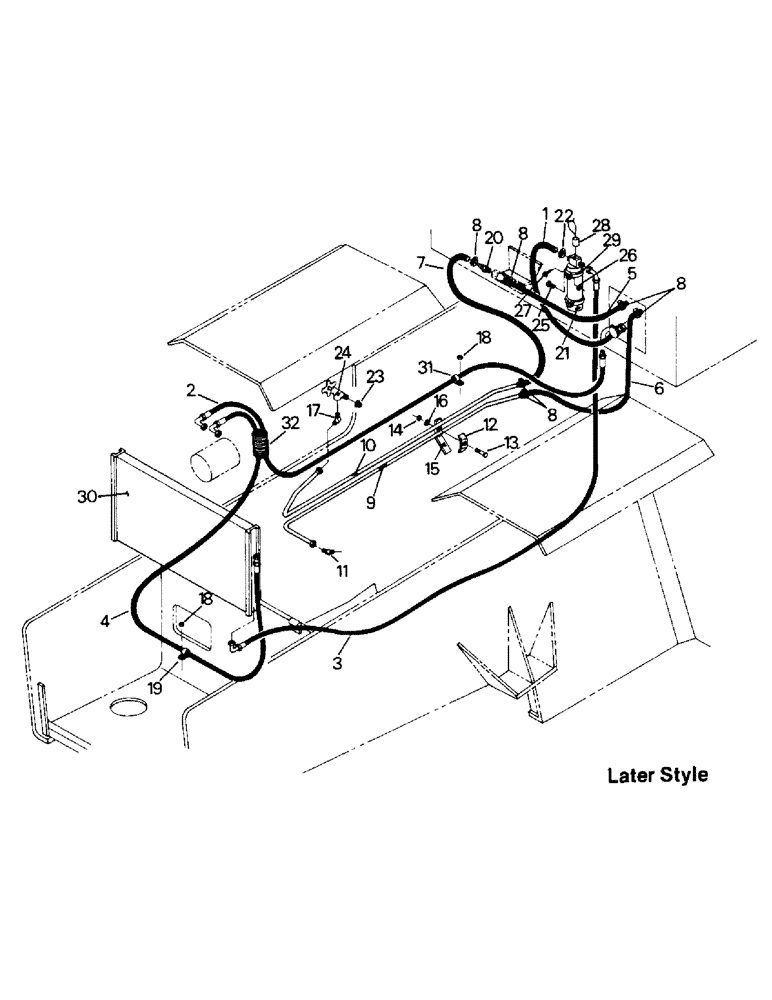

Схема запчастей Case IH PT225 - (03-10) - A/C & HEATER PLUMBING, CUMMINS 903 ENGINE (03) - Climate Control
1
22
24
31
32
8
14
17
15
3
27
18
21
12
30
25
19
20
26
11
8
8
6
29
5
18
13
10
2
7
9
23
8
16
28
4

Артикул

Название

Примечание

Количество

1

31-1351

A/C HOSE,0.31" ID x 22.00" , SAE J516 Type A

0.31" ID x 22.00", SAE J516 Type A, Assy

1шт.

2

31-1300

A/C HOSE

HOSE ASSEMBLY

1шт.

3

31-1065

HOSE

ASSEMBLY

1шт.

4

31-1063

HOSE ASSY.

HOSE ASSEMBLY

1шт.

5

31-1352

HOSE,0.63" ID x 16.00"

1шт.

6

31-1295

HOSE,0.63" ID x 46.00"

1шт.

7

31-1067

HOSE,0.63" ID x 36.00"

1шт.

8

25-285

SQUARE NUT,Sq, 5/16"-18

CLAMP

6шт.

9

1-4993

TUBE ASSEMBLY 0.625" OD, 42.2, 10.44" Length

1шт.

10

1-7798

TUBE ASSEMBLY 0.625" OD

1шт.

11

18-610

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

CONNECTOR

1шт.

12

32-1000

CLAMP

1шт.

13

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW, 1/4 x 1-1/2 UNC

1шт.

14

19-76

NUT,1/4"-20, G5

1/4 UNC

1шт.

15

1-4995

BRACKET

1шт.

16

19-115

LOCK WASHER,1/4"

1/4"

1шт.

17

31-1304

ELBOW,45 Degree, 7/8"-14" NPTF x 3/8"-18, 37 Degree

FITTING

1шт.

18

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC

5шт.

19

32-161

COLLAR CLAMP

CLAMP

3шт.

20

31-1296

BARBED FITTING

1шт.

21

1-7778

AIR CONDITIONER

RECIEVER DRIER

1шт.

22

25-48

HOSE CLAMP

CLAMP

1шт.

23

31-13

BUSHING

REDUCER

1шт.

24

31-1275

SHUT-OFF VALVE

TRUCK VALVE

1шт.

25

19-211

CAPSCREW,1/4" - 20 x 1 1/4", Gr 5

1/4 x 1-1/4 UNC

2шт.

26

19-5381

NUT

1/4 UNC

2шт.

27

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, tapping, 1/4 x 1/2 UNC

2шт.

28

25-1002

SWITCH

(low pressue)

1шт.

29

1-8563

CLAMP BRACKET

BRACKET

2шт.

30

2-3370T1

CONDENSER

1шт.

31

32-343

MOUNTING CLIP

CLAMP

3шт.

32

1-5599

SLEEVE

1шт.

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, (Ty Rap) (Not shown 3/16" x 7 1/4"

4шт.

Выбрано товаров: 33
