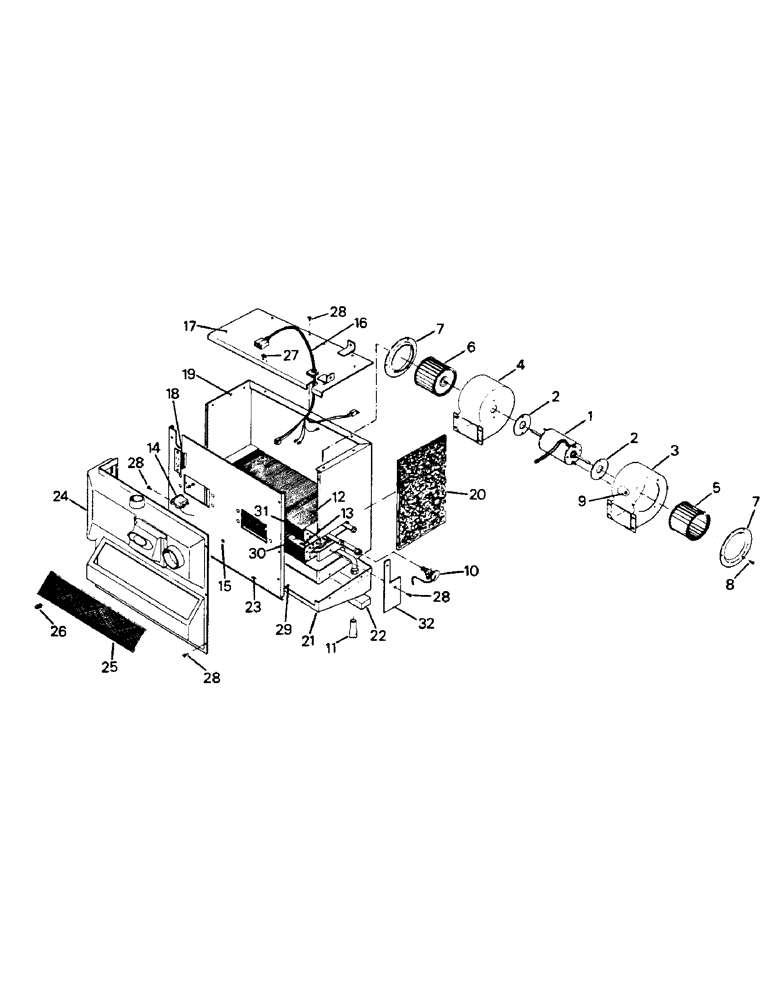

Запчасти Case IH PT225 (03-04A) - A/C & HEATER MODULE ASSEMBLY, SERVICE ONLY (03) - Climate Control

60-3806T91

CONTROL

MODULE ASSY, consist of 1-31

1шт.

60-2641T91

BLOWER

ASSY, consist of 1-9

1шт.

1

60-2564T1

BLOWER

MOTOR

1шт.

2

60-2565T2

MOTOR GASKET

2шт.

3

60-2568T1

HOUSING

BLOWER HOUSING, RH

1шт.

4

60-2569T1

HOUSING

BLOWER HOUSING, LH

1шт.

5

60-2566T1

BLOWER WHEEL, RH

1шт.

THE DIMENSION ARE 4 3/4"O.D. 3/8" HOLE.

1шт.

6

60-2629T2

BLOWER

WHEEL, LH

1шт.

7

60-2567T1

FLANGE

INLET FLANGE

2шт.

8

9426646

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/4"

TAPPING SCREW

6шт.

9

231-24109

LOCK NUT,#10-32, GB

4шт.

10

1-7844

VALVE

EXPANSION VALVE

1шт.

11

25-1060

DRAIN TUBE 1" ID, 1.06" OD, 3" Length

1шт.

12

1-7842

COIL

EVAPORATOR COIL

1шт.

13

1-7843

HEATER ASSY.

HEATER CORE

1шт.

14

25-1039

THERMOSTAT

1шт.

15

31-1725

GROMMET

1шт.

16

60-4312T1

HARNESS

WIRE HARNESS

1шт.

17

NSS

NOT SOLD SEPARAT

COVER ASSY

1шт.

18

60-4313T1

RESISTOR

1шт.

19

NSS

NOT SOLD SEPARAT

WRAPPER ASSY

1шт.

20

60-4314T1

SEAL

FIREWALL SEAL

1шт.

21

1-8087

PAN

DRIP PAN

1шт.

22

25-1059

PAD

1шт.

23

NSS

NOT SOLD SEPARAT

FRONT PANEL

1шт.

24

60-4311T1

TRANSMISSION

TRANSITION ASSY

1шт.

25

1-2065

FILTER

1шт.

26

60-4318T1

CLIP

S CLILP

4шт.

27

2-1374

CLIP

CABLE CLIP

1шт.

28

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

TAPPING SCREW

26шт.

29

445476

CLIP

U NUTS

2шт.

30

60-4316T1

FOAM

HEATER FOAM

1шт.

31

60-4317T1

FOAM

EVAPORATOR FOAM

1шт.

32

60-4362T1

PANEL

1шт.
