Запчасти Case IH PT225 (07-08) - FUEL SYSTEM, CUMMINS 903 ENGINE (02) - FUEL SYSTEM

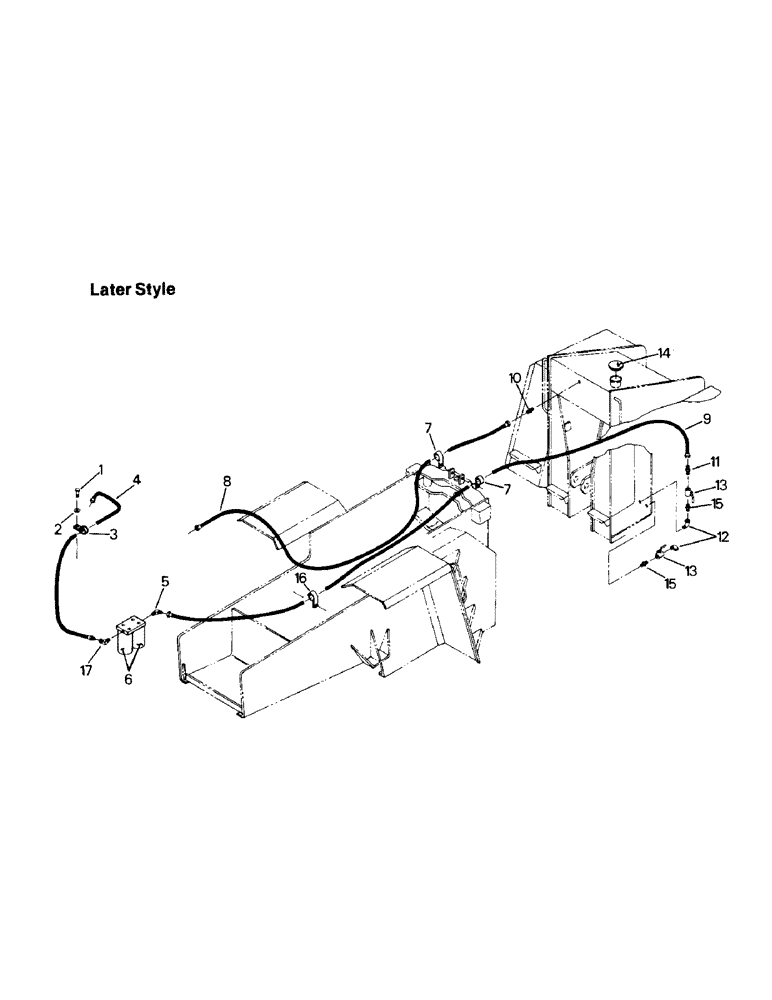

Схема запчастей Case IH PT225 - (07-08) - FUEL SYSTEM, CUMMINS 903 ENGINE (02) - FUEL SYSTEM
16
6
13
9
2
8
7
7
12
10
13
1
11
15
4
14
15
3
17
5

Артикул

Название

Примечание

Количество

1

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

1шт.

2

19-224

WASHER,3/8", SAE

3/8

1шт.

3

32-302

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

4

35-1290T91

HOSE

KIT

1шт.

5

18-632

ADAPTER (10)

1шт.

6

28-35

FUEL FILTER

ELEMENT, fuel filter (see figure 4-6)

1шт.

7

32-343

MOUNTING CLIP

CLAMP

2шт.

8

35-1231T91

CLAMP

2шт.

9

31-1266

HOSE ASSY.

HOSE ASSEMBLY

1шт.

10

31-363

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR

1шт.

11

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR

1шт.

12

31-20

STREET ELBOW

2шт.

13

31-1267

SHUT-OFF VALVE

VALVE

2шт.

14

1-4853

CAP

FUEL CAP

1шт.

15

31-345

FITTING

CONNECTOR

2шт.

16

22-631

CLIP

CLAMP

1шт.

17

31-543

LINK

ADAPTER (10)

1шт.

1-7818

CABLE

TY RAP (not shown)

2шт.

Выбрано товаров: 18
