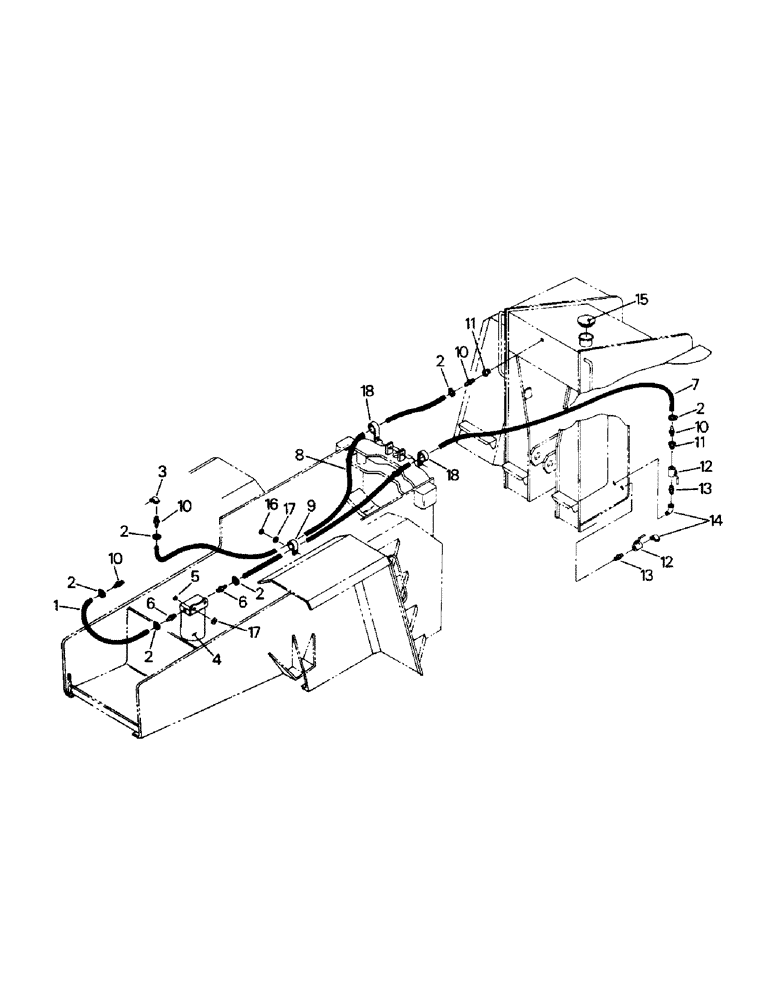

Запчасти Case IH PT225 (07-06) - FUEL SYSTEM, CAT 3406 ENGINE (02) - FUEL SYSTEM

1

31-1208

HOSE,0.38" ID x 12.00"

1шт.

2

32-29

HOSE CLAMP

CLAMP

6шт.

3

31-208

ELBOW

1шт.

4

6-1601

FILTER

FUEL FILTER

1шт.

GASKET SHOULD BE WITH FILTER,GASKET

1шт.

1-2336

ELEMENT

1шт.

If dealer is looking for square o-ring for primary fuel filter available through cat P/N 8H-2778

1шт.

5

19-1081

LOCK NUT

LOCK NUT, 1/4 UNC

2шт.

6

31-218

CONNECTING ROD

CONNECTOR

2шт.

7

31-1517

HOSE

1шт.

8

31-1068

HOSE ASSY.

HOSE

1шт.

9

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

10

31-137

FITTING

ADAPTER

4шт.

11

31-181

REDUCER

2шт.

12

31-1267

SHUT-OFF VALVE

VALVE

2шт.

13

31-345

FITTING

CONNECTOR

2шт.

14

31-20

STREET ELBOW

2шт.

15

1-4853

CAP

FUEL CAP

1шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

2шт.

17

19-107

WASHER

3/8

4шт.

18

32-343

MOUNTING CLIP

CLAMP

2шт.

19-135

CABLE TIE

TY RAP (not shown)

1шт.
