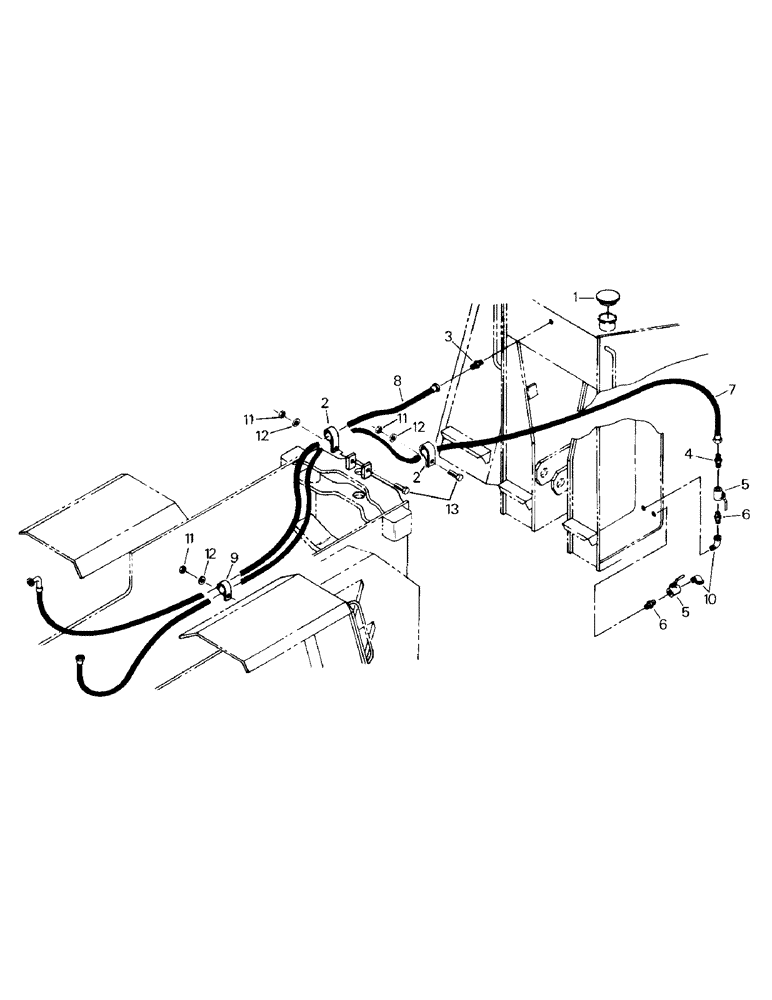

Запчасти Case IH KS-360 (07-01) - FUEL SYSTEM, CUMMINS 855 ENGINE (02) - FUEL SYSTEM

1

1-4853

CAP

Fuel Cap (standard)

1шт.

2-6604T91

Fuel Cap (locking)

1шт.

2

32-343

MOUNTING CLIP

Clamp

2шт.

3

31-363

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

Connector

1шт.

4

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

Connector

1шт.

5

31-1267

SHUT-OFF VALVE

Valve

2шт.

6

31-345

FITTING

Connector

2шт.

7

31-1607

HOSE

Assy

1шт.

8

31-1606

HOSE

Assy

1шт.

9

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

10

31-20

Street Elbow

2шт.

11

19-78

SPECIAL NUT,3/8"-16, G5

4шт.

12

19-107

WASHER

4шт.

13

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

2шт.

19-135

CABLE TIE

Ty Rap (not shown)

1шт.
